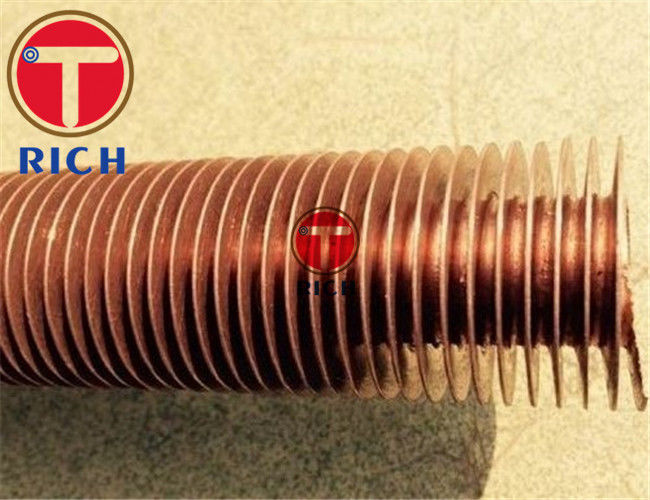

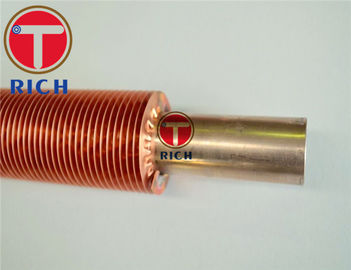

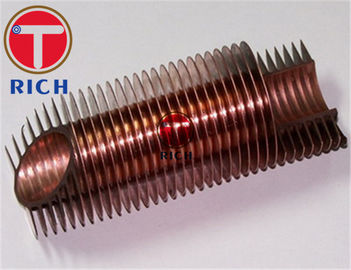

OD25mm Serrated Finned Copper Pipe for Air Cooler
Product Details
OD25mm serrated fin tubes
,OD25mm Finned Copper Pipe
,OD25mm air cooler tube
Serrated Finned Copper Pipe for Air Cooler
About Finned Tubes
A fin tube is a tube that has lots of fins around the outside surface.
These fins act as a filter and a mechanism to transfer heat from the
material inside the tube to the outside space or vice versa.
Fin tubes are used in applications that require a transfer of heat
from a hot fluid to a colder fluid through the tube's wall.
♦ Welded finned tubes
♦ Extruded finned tubes
♦ Welded helical solid finned tubes
♦ Welded serrated finned tubes
♦ Welded helical serrated finned tubes
Our Advantages
Professional facility to produce in excess of 100 tons of quality finned tube per month.
♦ Over 20 years experience
♦ Out standing quality
♦ Three different finning process
♦ Two fully automatical H.F Induction Welding Lines
♦ More than 15 finning machines
♦ Different coiling and bending process
♦ Highly skilled technicians
♦ Numerous domestic and overseas customers
| Items | Code | Dimensions | Tolerances |
| Tube outside diameter | D1 | Φ25~Φ219 mm | ±0.2 mm |
| Fin outside diameter | D2 | Φ37~Φ279 mm | ±0.75 mm |
| Fin pitch | M | 4~90 mm | ±0.2 mm |
| Fin height | H | 6~30 mm | ±0.75 mm |
| Tube thickness | δ1 | 2~16 mm | ±0.15 mm |
| Fin thickness | δ2 | 0.8~2.5 mm | ±0.1 mm |
| Unfinned tube ends length | L1 | customized | ±1‰*L1 mm |
| Unfinned tube ends length | L2 | customized | ±1‰*L2 mm |
| Maximum tube length | L | 0.5~25 m | ±1‰*L mm |
Key words: fin tube dimensions, fin tube heat exchanger,fin tube products
Product Pictures:
Eddy Current Test and Ultrasonic Test:
Quality Inspection in lab:
Packing:
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
