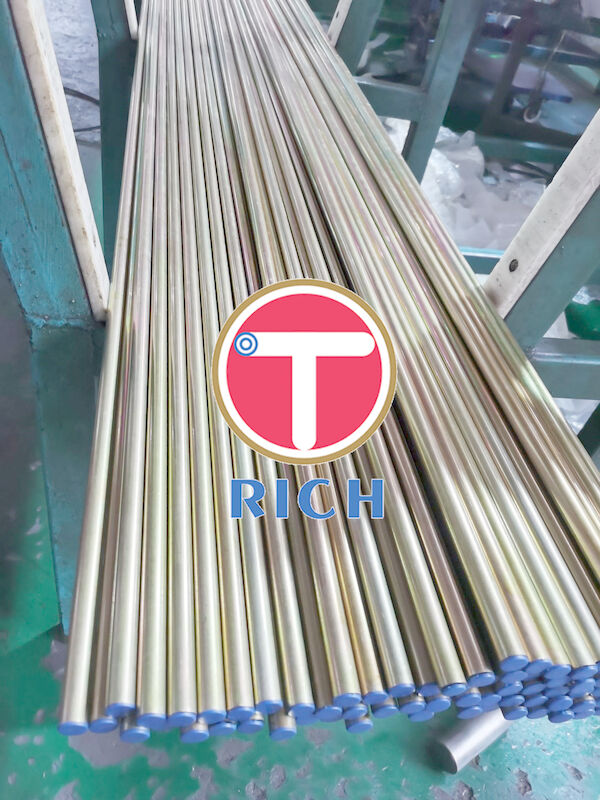

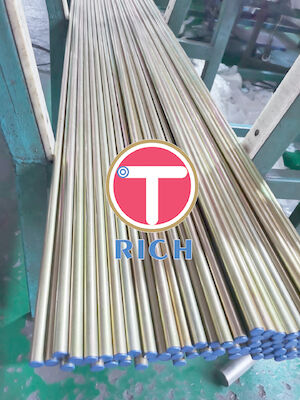

WT1.6mm Alloy 625 Nickel Alloy Tubing
Basic Properties
Place of Origin:
China
Brand Name:
ASTM B167A
Certification:
IS09001 ISO14001 TS16949
Model Number:
ASTM B167
Trading Properties
Minimum Order Quantity:
0.5 tons
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
60000tons per year
Product Summary
Polished Steel Tube Nickel Alloy Alloy 625 Tubing Brushed Nickel Pipe Nickel Silver Tubing Standard: ASTM B167 Size Range: OD: 13.7mm-168.3mm WT: 1.6mm-8.6mm Steel Grade: UNS N06025, UNS N06045, UNS N06600, UNS N06601, UNS N06603, UNS N06617, UNS N06674, UNS N06690, UNS N06693, UNS N06696 Chemical ...
Product Details
Highlight:
WT1.6mm Nickel Alloy Tubing
,Alloy 625 Nickel Alloy Tubing
,WT1.6mm alloy 625 tubing
Material:
Alloy 625
OD:
12-127mm
Length:
12m Max
End:
Plain
Product Description
Polished Steel Tube Nickel Alloy Alloy 625 Tubing Brushed Nickel Pipe Nickel Silver Tubing
Standard: ASTM B167
Size Range:
OD: 13.7mm-168.3mm
WT: 1.6mm-8.6mm
Steel Grade: UNS N06025, UNS N06045, UNS N06600, UNS N06601, UNS N06603, UNS N06617, UNS N06674, UNS N06690, UNS N06693, UNS N06696
Chemical Requirements
| Element | N06025 | N06045 | N06600 | N06601 | N06603 | N06617 | N06674 | N06690 | N06693 | N06696 |
| Ni | remainder | 45.0min | 72.0min | 58.0-63.0 | remainder | 44.5min | remainder | 58.0min | remainder | remainder |
| Cr | 24.0-26.0 | 26.0-29.0 | 14.0-17.0 | 21.0-25.0 | 24.0-26.0 | 20.0-24.0 | 21.5-24.5 | 27.0-31.0 | 27.0-31.0 | 28.0-32.0 |
| Iron | 8.0-11.0 | 21.0-25.0 | 6.0-10.0 | remainder | 8.0-11.0 | 3.0max | 20.0-27.0 | 7.0-11.0 | 2.5-6.0 | 2.0-6.0 |
| Mn | 0.15max | 1.0max | 1.0max | 1.5max | 0.15max | 1.0max | 1.50max | 0.5max | 1.0max | 1.0max |
| Mo | ... | ... | ... | ... | ... | 8.0-10.0 | ... | ... | ... | 1.0-3.0 |
| Co | ... | ... | ... | ... | ... | 10.0-15.0 | ... | ... | ... | ... |
| Al | 1.8-2.4 | ... | ... | 1.0-1.7 | 2.4-3.0 | 0.8-1.5 | ... | ... | 2.5-4.0 | ... |
| C | 0.15-0.25 | 0.05-0.12 | 0.15max | 0.10max | 0.20-0.40 | 0.05-0.15 | 0.10max | 0.05max | 0.15max | 0.15max |
| Cu | 0.1max | 0.3max | 0.5max | 1.0max | 0.50max | 0.5max | ... | 0.5max | 0.5max | 1.5-3.0 |
| B | ... | ... | ... | ... | ... | 0.006max | 0.0005-0.006 | ... | ... | ... |
| Si | 0.5max | 2.5-3.0 | 0.5max | 0.5max | 0.50max | 1.0max | 1.0max | 0.5max | 0.5max | 1.0-2.5 |
| S | 0.010max | 0.010max | 0.015max | 0.015max | 0.010max | 0.015max | 0.015max | 0.015max | 0.01max | 0.010max |
| Ti | 0.1-0.2 | ... | ... | ... | 0.1-0.25 | 0.6max | 0.05-0.20 | ... | 1.0max | 1.0max |
| Nb | ... | ... | ... | ... | ... | ... | 0.10-0.35 | ... | 0.5-2.5 | ... |
| P | 0.020max | 0.020max | ... | ... | 0.020max | ... | 0.030max | ... | ... | ... |
| Zr | 0.01-0.10 | ... | ... | ... | 0.01-0.10 | ... | ... | ... | ... | ... |
| Y | 0.05-0.12 | ... | ... | ... | 0.01-0.15 | ... | ... | ... | ... | ... |
| Ce | ... | 0.03-0.09 | ... | ... | ... | ... | ... | ... | ... | ... |
| N | ... | ... | ... | ... | ... | ... | 0.02max | ... | ... | ... |
| W | ... | ... | ... | ... | ... | ... | 6.0-8.0 | ... | ... | ... |
Keywords:
polished Steel Tube Nickel Alloy Alloy 625 Tubing Brushed Nickel Pipe Nickel Silver Tubing
625 materil
