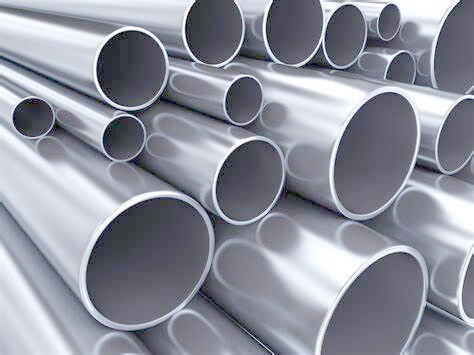

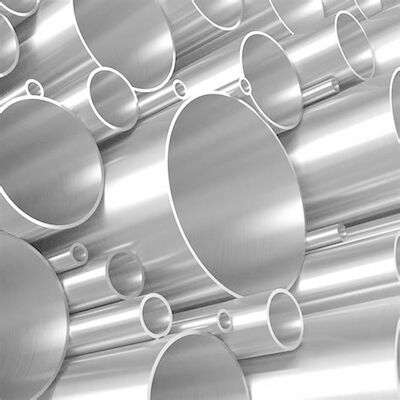

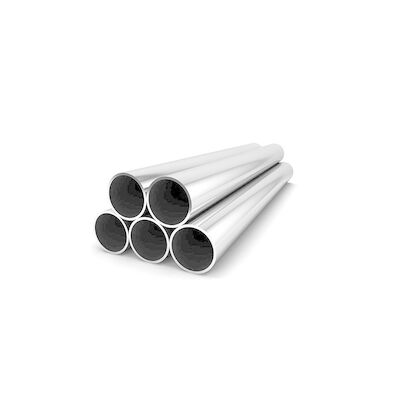

Industrial ASTM B444 Heat Exchanger Tubing
Product Details
ASTM B444 Heat Exchanger Tubing
,ASTM B444 heat exchanger pipe
ASTM B407 Nickel Alloy Tube for Heat Exchanger
Application:
1) Evaporation tank, acid and alkali industrial machine in petrochemical production, catalytic regenerator,heat exchanger.
2) The production and use of corrosive alkali metals, especially in environments where sulfides are used,
3) Jet engine components, supplemental components of turbojet engines, etc.
Inconel 600 alloy is ni - cr - iron base alloy solid solution strengthening, has good resistance to high temperature corrosion and oxidation resistance, excellent hot and cold processing and welding performance, under 700 ℃ has a satisfactory heat intensity and high plasticity.Alloy can be strengthen through the cold work, also can use resistance welding, welding or soldering connection.
| Physical properties | |||||
| | -150℃ | 21℃ | 100℃ | 500℃ | 1000℃ |
| Modulus of elasticity (Gpa) | 12.5 | | 15.9 | 22.1 | |
| Mean coefficient of thermal expansion | | 210 | 210 | 187 | 143 |
| Coefficient of heat conduction (w/m℃) | 10.9 | 10.4 | 13.3 | 14.9 | |
| Specific heat capacity (j/kg.℃) | 310 | 444 | 465 | 536 | |
| Than the resistance (Ωmm2/m) | | 1.03 | 1.04 | 1.12 | |
ASTM B444
Referenced ASTM Standard:
E829 Specification for general requirements for Nickel and Nickel alloy seamless pipe and tube.
E112 Test Methods for determining the average grain size.
G28 Test methods for detecting susceptibility to intergranular corrosion in wrought, Nickel-Rich, Chromium-Bearing Alloys.
G48 Test methods for piting and crevice corrosion resistance of stainless steel and related alloys by use of ferric chloride solution.
Keywords: Seamless pipe; seamless tube; N06219; N06625
-
Auto Parts ASTM A513 Cold Rolling Welded Steel Tubes with DOM Production
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm Diameter Bright Annealing Seamless Steel Tube for Hydraulic Systems
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Precision Seamless Black Phosphating Steel Tube for Hydraulic Systems
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
