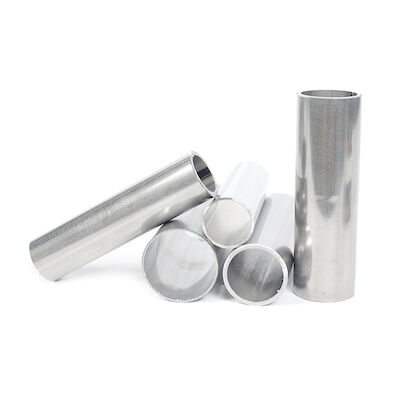

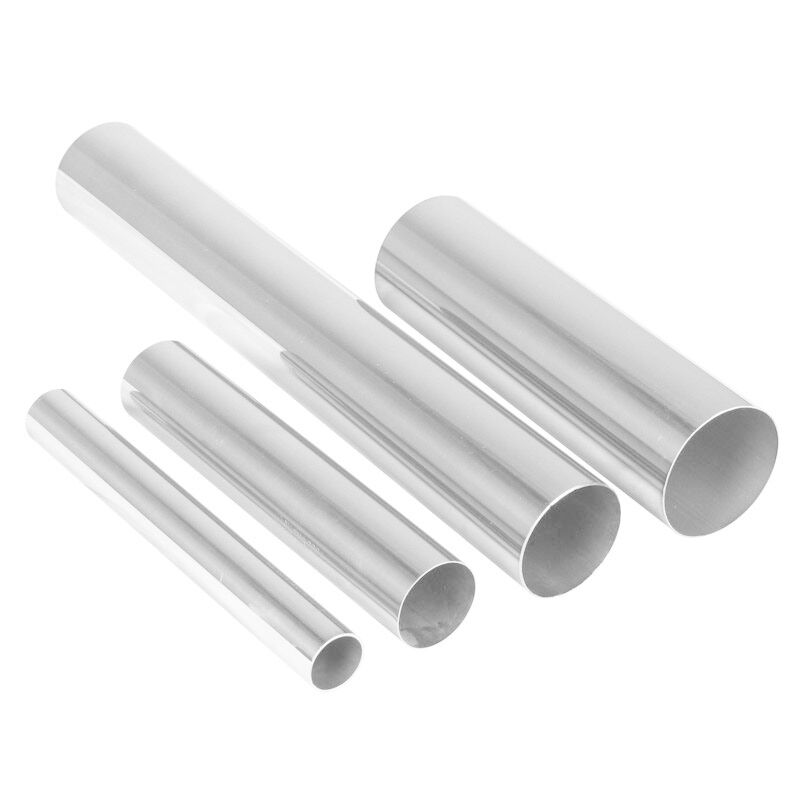

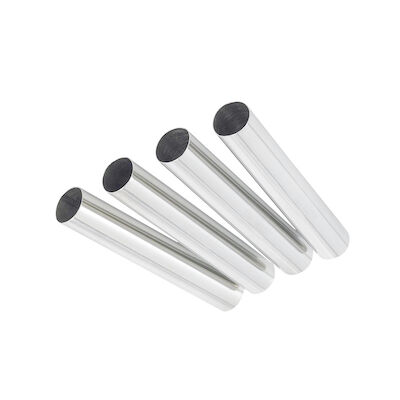

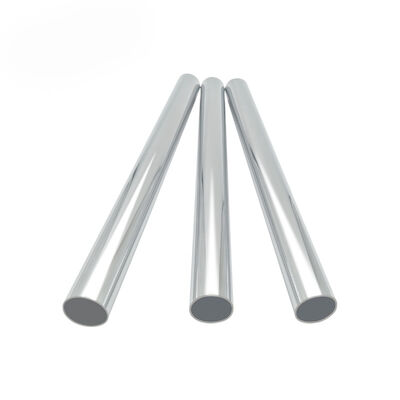

ASME SB622 Seamless Alloy Tube For Heat Exchanger
Product Details
ASME SB622 Seamless Alloy Tube
,ASME SB622 seamless alloy pipe
ASTM SB622 Nickel Alloy Tube for Heat Exchanger
Application:
1) Evaporation tank, acid and alkali industrial machine in petrochemical production, catalytic regenerator,heat exchanger.
2) The production and use of corrosive alkali metals, especially in environments where sulfides are used,
3) Jet engine components, supplemental components of turbojet engines, etc.
Inconel 600 alloy is ni - cr - iron base alloy solid solution strengthening, has good resistance to high temperature corrosion and oxidation resistance, excellent hot and cold processing and welding performance, under 700 ℃ has a satisfactory heat intensity and high plasticity.Alloy can be strengthen through the cold work, also can use resistance welding, welding or soldering connection.
| Physical properties | |||||
| | -150℃ | 21℃ | 100℃ | 500℃ | 1000℃ |
| Modulus of elasticity (Gpa) | 12.5 | | 15.9 | 22.1 | |
| Mean coefficient of thermal expansion | | 210 | 210 | 187 | 143 |
| Coefficient of heat conduction (w/m℃) | 10.9 | 10.4 | 13.3 | 14.9 | |
| Specific heat capacity (j/kg.℃) | 310 | 444 | 465 | 536 | |
| Than the resistance (Ωmm2/m) | | 1.03 | 1.04 | 1.12 | |
Keywords:
Seamless tube; Seamless pipe; UNS N06002; UNS N06007; UNS N06022; UNS N06030; UNS N06035; UNS N06058; UNS N06059; UNS N06060; UNS N06200; UNS N06210; UNS N06230; UNS N06250; UNS N06255; UNS N10362; UNS N06455; UNS N06686; UNS N06795; UNS N06985; UNS N08031; UNS N08135; UNS N08320; UNS N08535; UNS N10001; UNS N10242; UNS N10276; UNS N10624; UNS N10629; UNS N10665; UNS N10675; UNS N12160; UNS R20033; UNS R30556
Referenced ASTM Standard:
B 829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.
E 8 Test method for tension testing of metallic materials.
E 527 Practice for numbering metals and alloy in the unified numbering system (UNS)
-
