CK45 40Cr 20MnV6 Hydraulic Cylinder Piston Rod
Product Details
20MnV6 Hydraulic Cylinder Piston Rod
,40Cr Hydraulic Cylinder Piston Rod
,CK45 Hydraulic Cylinder Piston Rod
DIN 17200 CK45 40Cr 20MnV6 72mm QT Chromium Plated Piston Rod for Hydraulic Cylinder
Name: Chromium plated Piston Rod
Type: Solid / Hollow
Material: CK45, 20MnV6,42CrMo4, 40Cr
D.: 40-400mm
W.T: ≥5mm
Alloy Or Not: Non-alloy
Length: Up To 12000mm According To Customer's Requirement
Place Of Origin: Zhejiang, China (Mainland)
Surface Treatment : Chromed, Nickeled
Heat Treatment: Annealed, QT
Material: CK45;20MnV6;42CrMo4;40Cr
| CHEMICAL COMPOSITION(%) | ||||||||||
| Steel Grade | C% | Mn% | Si% | S% | P% | V% | Ni% | Cr% | Mo% | Cu% |
| CK45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | / | ≤0.25 | ≤0.25 | / | ≤0.25 |
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤0.035 | ≤0.035 | 0.10-0.20 | ≤0.30 | ≤0.30 | / | ≤0.30 |
| 42CrMo4 | 0.38-0.45 | 0.5-0.8 | 0.17-0.37 | ≤0.035 | ≤0.035 | 0.07-0.12 | ≤0.03 | 0.90-1.20 | 0.15-0.25 | ≤0.03 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤0.035 | ≤0.035 | / | ≤0.30 | 0.80-1.1 | / | ≤0.03 |
| MECHANICAL PROPERTIES | ||||||||||
| Material | Tensile Strength Rm (Mpa) | Yield Strength Rel (Mpa) | Elogation A% | CHARPY | CONDITION | |||||
| CK45 | 610 | 355 | 15 | >41J | Normalized | |||||
| CK45 | 800 | 540 | 20 | >41J | Q+T | |||||
| 20MnV6 | 750 | 590 | 12 | >41J | Normalized | |||||
| 42CrMo4 | 980 | 850 | 14 | >47J | Q+T | |||||
| 40Cr | 1000 | 800 | 10 | Q+T | ||||||
| SUPPLY CONDITION | Ground and chrome plated |
| CHROME THICKNESS | 20 to 30 micron |
| SURFACE ROUGHNESS | Ra≤0.2 micron and Rt≤2 micro |
| TOLERANCE ON DIA | ISO f7 on the diameter |
| OVALITY | Half of the tolerance ISO f7 |
| STRAGHNESS | ≤0.2MM/M |
| SURFACE HARDNEDD | 850-1150 HV(vickers 100g) |
| COHESION | No craks,breaking or detaching after thermic shock (warming up at 3200 celsius degrees and cooling in water) |
| POROSITY | Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10 |
| CORROSION RESISTANCE | Test in natural salt spray according to ASTM B117-120hours |
| Results evaluation | accordin to ISO4540 RATING7-10 |
| WELDABILITY | Good |
| PACKING | Anti rust oil to be applied on material and each rod to be packed in paper sleeve |
| CERTIFICATE | All certificate related with material heat treatment and plating is required |

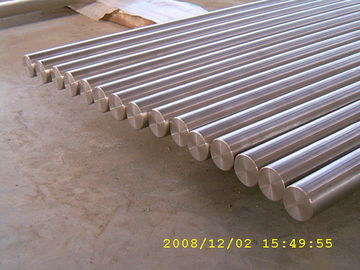

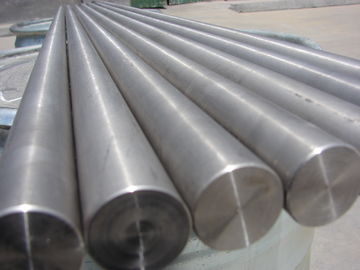

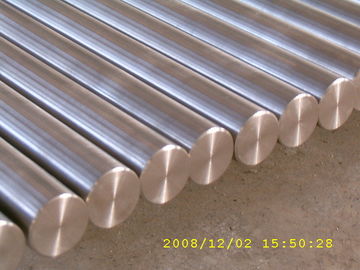

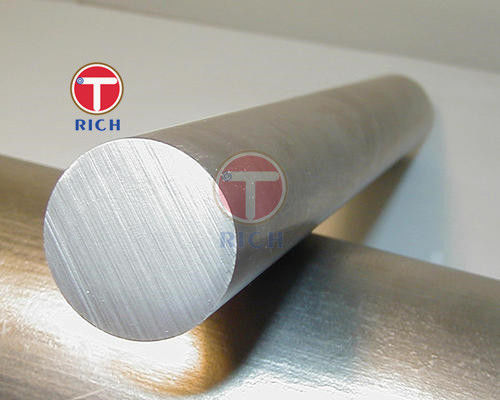

Product Pictures:
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects
-
