Seamless And Welded Stainless Steel Tube For Boiler / Heat Exchanger
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
JIS G3463
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
JIS G3463 Seamless and welded stainless steel tube for boiler tube and heat-exchanger Type: Seamless and welded stianless steel pipes Application: For chemical and petroleum industries Technique: Cold-finished, hot-finished, ERW Size: OD 5-420mm WT 1-50mm LENGTH max12000mm Product Description ...
Product Details
Highlight:
Seamless Stainless Steel Tube For Boiler
,JIS G3463 Seamless Heat Exchanger Tube
Product Name:
JIS G3463 Seamless And Welded Stainless Steel Tube For Boiler Tube And Heat-exchanger
Product Keyword:
Seamless And Welded Stainless Steel Pipe
Grade:
SUS304TB, SUS304HTB, SUS304LTB, SUS309TB, SUS309STB,etc
Application:
For Chemical And Petroleum Industries
Secondary:
Non-secondary
Section Shape:
Round
Product Description
JIS G3463 Seamless and welded stainless steel tube for boiler tube and heat-exchanger
Type: Seamless and welded stianless steel pipes
Application: For chemical and petroleum industries
Technique: Cold-finished, hot-finished, ERW
Size:
| OD | 5-420mm |
| WT | 1-50mm |
| LENGTH | max12000mm |
Product Description
Chemical Composition:
| Grade | Chemical composition % | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| SUS 304TB | 0.08 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - |
| SUS 304HTB | 0.04~0.10 | 0.75 max. | 2.00max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - |
| SUS 304LTB | 0.030 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 9.00~13.00 | 18.00~20.00 | - |
| SUS 309STB | 0.15 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - |
| SUS 310TB | 0.08 max | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - |
| SUS 310STB | 0.15 max. | 1.50 max. | 2.00max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - |
| SUS 316TB | 0.08 max. | 1.50 max. | 2.00max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - |
| SUS 316HTB | 0.08 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS 316LTB | 0.04~0.10 | 0.75 max. | 2.00max. | 0.040 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS 316TiTB | 0.030 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 |
Mechanical proporties:
| Symbol of grade | Mechanical properties: | ||||
|---|---|---|---|---|---|
| Tensile strength kg f/П {N/П} | proof stress kg f/П {N/П} | Elongation % | |||
| 20 mm min.in outside diameter | 10 mm or over to and excl. 20 mm in outside diameter | Under 10 mm in outside diameter | |||
| No.11 test pieceNo.12 test piece | No.11 test piece | No.11 test piece | |||
| SUS304TB | 53{520} min | 21{206} min. | 35 min. | 30 min. | 27 min. |
| SUS304HTB | 53{520} min | 21{206} min. | 35 min. | 30 min. | 27 min. |
| SUS304LTB | 49{481} min | 18{177} min. | 35 min. | 30 min. | 27 min. |
| SUS309TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS309STB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS310TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS310STB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316HTB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316LTB | 49{481} min | 18{177} min | 35 min. | 30 min. | 27 min. |
| SUS316TiTB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
Equivalent Steel Grade:
| JIS | ASTM/ASME | BS | DIN |
|---|---|---|---|
| SA-213 T91 | 17175-X10CrMoVNb91 | ||
| G3463 SUS304TB | SA-213 Tp-304 | 17456 X2CrNi1911 | |
| G3463 SUS304HTB | SA-213 Tp 304H | 3059 CFS304S51 | |
| G3463 SUS316TB | SA-213 Tp 316 | 17456 X5CrNiMo17122 | |
| G3463 SUS316HTB | SA-213 Tp 316H | 3059 CFS316S51 | |
| G3463 SUS321TB | SA-213 Tp 321 | 17456 X6CrNiTi1810 | |
| G3463 SUS321HTB | SA-213 Tp 321H | 3059 CFS321S51 | |
| G3463 SUS347TB | SA-213 Tp 347 | 17456 X5CrNiNB1810 | |
| G3463 SUS347HTB | SA-213 Tp 347H | 3059 CFS347S51 |

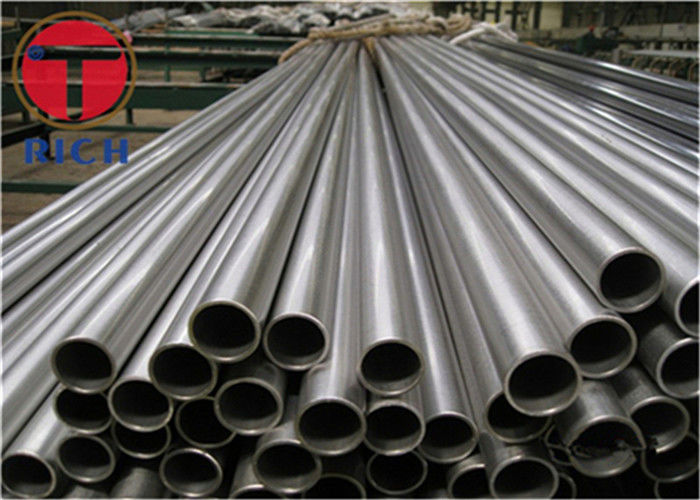

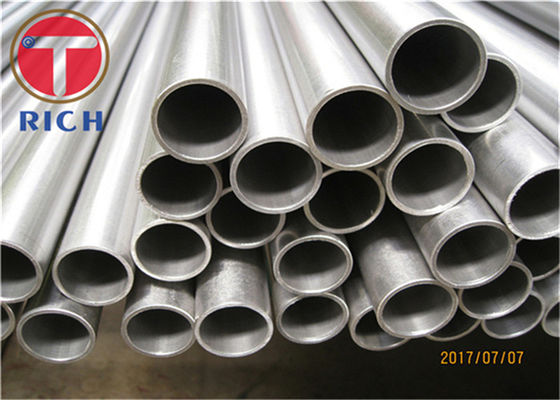

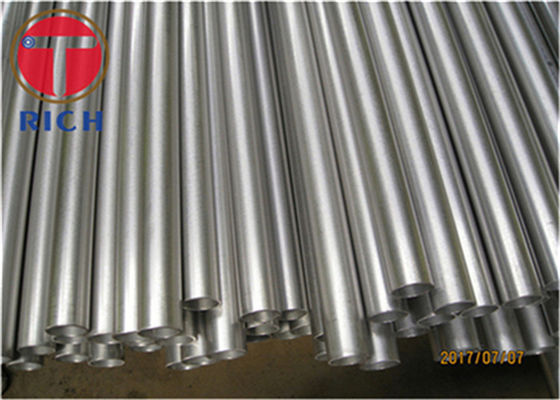

Product show:
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
