2-12m Length Inconel 600 Nickel Alloy Steel Tubing
Product Details
12m Length Nickel Alloy Steel Tubing
,Inconel 600 Nickel Alloy Steel Tubing
Inconel 600 Nickel Alloy Steel Tubing
Inconel Alloy 600 tubing is made from a non-magnetic, nickel-chromium alloy known for its good oxidation resistance at high temperatures. In fact, Inconel® Alloy 600 (UNS N06600) was designed for use from cryogenic to elevated temperatures up to and surpassing 2000 degrees F. Inconel® Alloy 600 tubing possesses great mechanical properties, a good combination of high strength with good workability, and is weldable without difficulty. Inconel® Alloy 600 is not precipitative hardenable, it is hardened and strengthened solely through cold work.
Inconel 600 ERW Tube Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 600 Tubing Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |

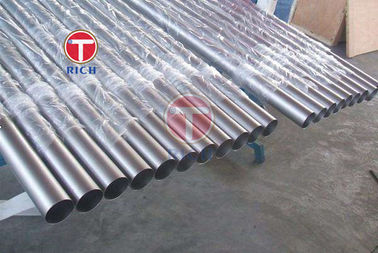

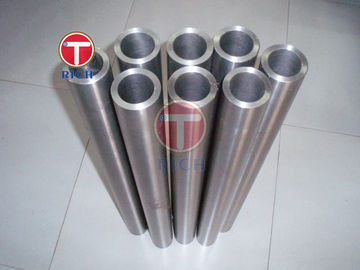

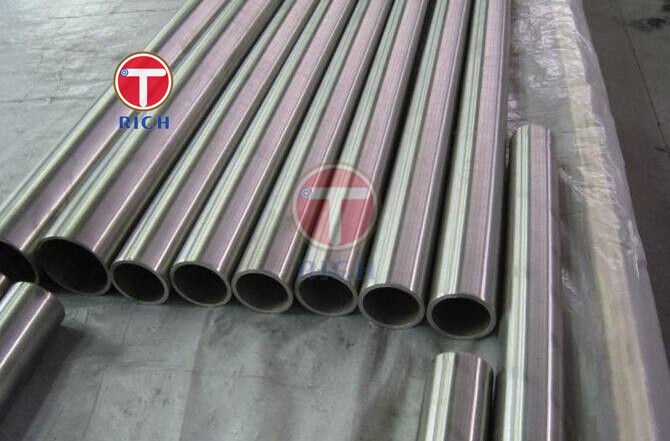

Product Pictures
Eddy Current Test and Ultrasonic Test:
Packing and Delivery
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
