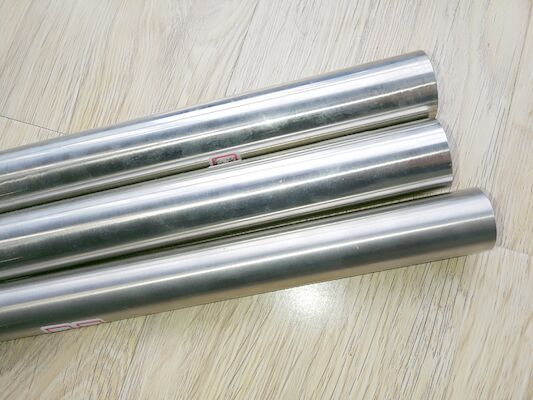

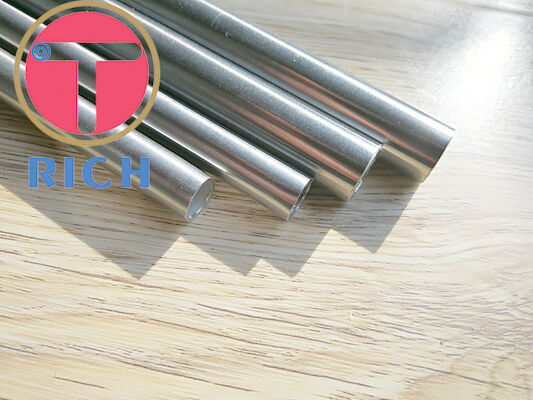

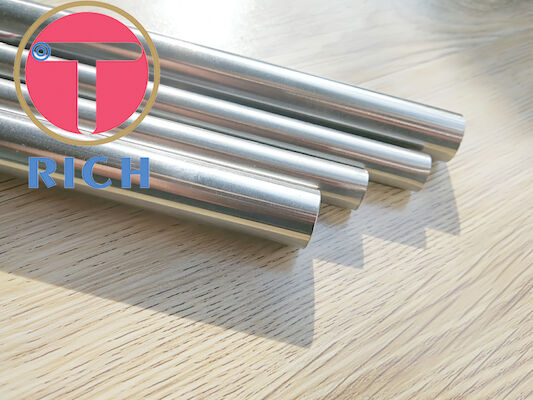

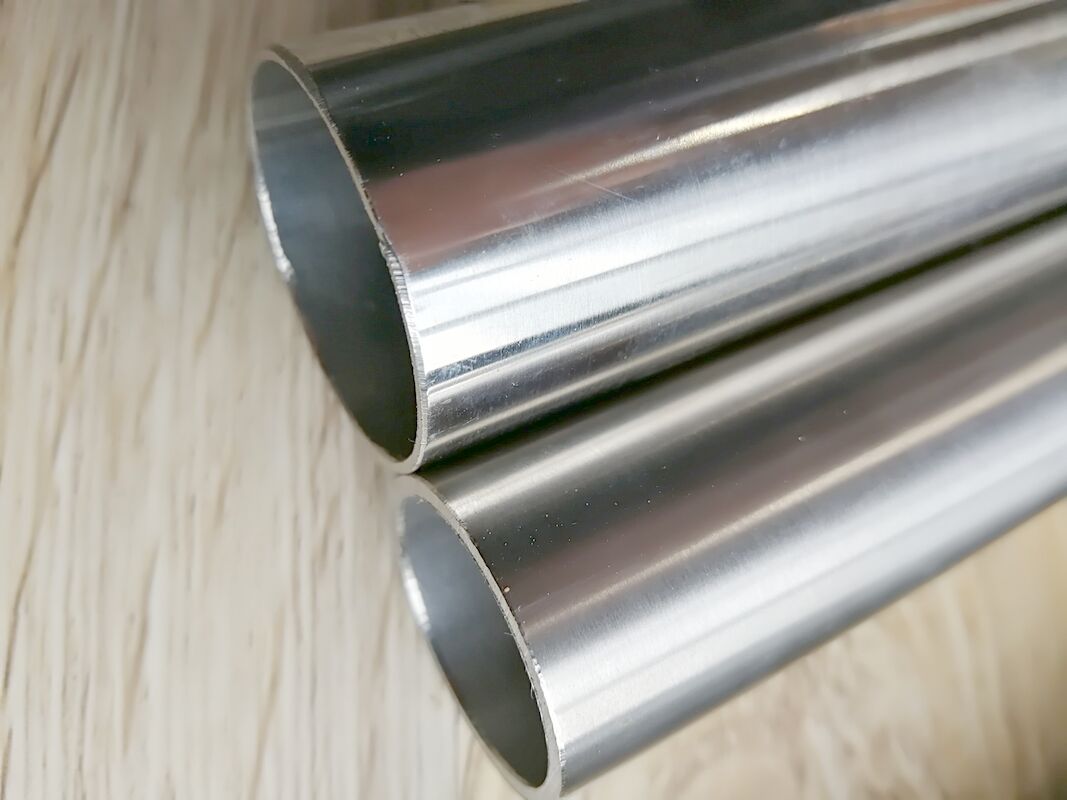

ASTM B165 BRIGHT ANNEALING NICKEL-COPPER SEAMLESS STAINLESS STEEL PIPE
Basic Properties
Place of Origin:
Zhejiang China
Brand Name:
TORICH
Certification:
ISO 9001
Model Number:
C276
Trading Properties
Minimum Order Quantity:
0.5 Ton
Price:
USD42000-70000 Per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
500 Tons Per Month
Product Summary
ASTM B165 Bright Annealing Nickel-Copper Seamless Stainless Steel Pipe Mechanical Properties of Small-Diameter and Light-Wall Tubing Condition Tensile Strength(Mpa) Yield Strength min Mpa Elongation in 2in or 50mm min% Annealed 585max 195 32 Half-hard 585min 380 12 Full hard 760min 620 3 Delivery ...
Product Details
Highlight:
Hastelloy C276 Stainless Steel Pipe
,Nickel Alloy Stainless Steel Pipe
,Bright Annealing Stainless Steel Pipe
Grade:
Hastelloy C276 Tube, Hastelloy C-276
Standard:
ASTM B 622
Surface Finish:
Bright Annealed & Polished
Application:
Instrument, Chromatography, Hydraulic
Product Description
ASTM B165 Bright Annealing Nickel-Copper Seamless Stainless Steel Pipe
Mechanical Properties of Small-Diameter and Light-Wall Tubing
| Condition | Tensile Strength(Mpa) | Yield Strength min Mpa | Elongation in 2in or 50mm min% |
| Annealed | 585max | 195 | 32 |
| Half-hard | 585min | 380 | 12 |
| Full hard | 760min | 620 | 3 |
Delivery Conditions :
1. Annealed - Soft,with a dull matte finish
2. Stress Relieved - Thermally treated below the annealing tempreature to relieve the major portion of the internal stress, with a thin , light to medium-dark surface
Chemical Requirements
|
Element |
Composition Limit % | Product(check)Analysis Variations ,under min or over max , of the specified Limit of Element |
| Ni | 63min | 0.45 |
| Cu | 38min 34max | 0.15 0.20 |
| Fe | 2.5max | 0.05 |
| Mn | 2.0max | 0.04 |
| C | 0.3max | 0.02 |
| Si | 0.5max | 0.03 |
| S | 0.024max | 0.005 |
