Seamless And Welded JIS G3473 Carbon Steel Tube For Cylinder Barrels
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
JIS G3473
Trading Properties
Minimum Order Quantity:
5 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
JIS G3473 Seamless and welded carbon steel tube for cylinder barrels Type: Seamless and welded carbon steel pipes Application: For cylinder barrels Technique: Cold-finished, hot-finished, ERW Product Description Grade and Designation The tubes shall be classified into 7 grades, and their designation...
Product Details
Highlight:
Seamless JIS G3473 Carbon Steel Tube
,Welded JIS G3473 Carbon Steel Tube
,Steel Tube For Cylinder Barrels
Product Name:
JIS G3473 Seamless And Welded Carbon Steel Tube For Cylinder Barrels
Product Keyword:
Seamless And Welded Carbon Steel Pipe
Grade:
STC 370,STC 440,STC 510A,STC 510B,STC 540,STC 590A,STC 590B
Application:
For Cylinder Barrels
Secondary:
Non-secondary
Section Shape:
Round
Type:
Seamless And Welded
Technique:
Cold-finished ,hot-finished, ERW
Product Description
JIS G3473 Seamless and welded carbon steel tube for cylinder barrels
Type: Seamless and welded carbon steel pipes
Application: For cylinder barrels
Technique: Cold-finished, hot-finished, ERW
Product Description
Grade and Designation
The tubes shall be classified into 7 grades, and their designations shall be as given in Table 1.
Table 1 Designation of Grade
| Designation of Grade | Traditional symbol |
| STC 370 STC 440 STC 510A STC 510B STC 540 STC 590A STC 590B | STC 38 STC 45 STC 52A STC 52B STC 55 STC 60A STC 60B |
Chemical composition:
| Designation of grade | C | Si | Mn | P | S | Nb or V |
| STC 370 | 0.25max | 0.35max | 0.30-0.90 | 0.040max | 0.040max | - |
| STC 440 | 0.25max | 0.35max | 0.30-0.90 | 0.040max | 0.040max | - |
| STC 510A | 0.25max | 0.35max | 0.30-0.90 | 0.040max | 0.040max | - |
| STC 510B | 0.25max | 0.55max | 1.50max | 0.040max | 0.040max | - |
| STC 540 | 0.25max | 0.55max | 1.60max | 0.040max | 0.040max | 0.15max |
| STC 590A | 0.25max | 0.35max | 0.30-0.90 | 0.040max | 0.040max | - |
| STC 590B | 0.25max | 0.55max | 1.50max | 0.040max | 0.040max | - |

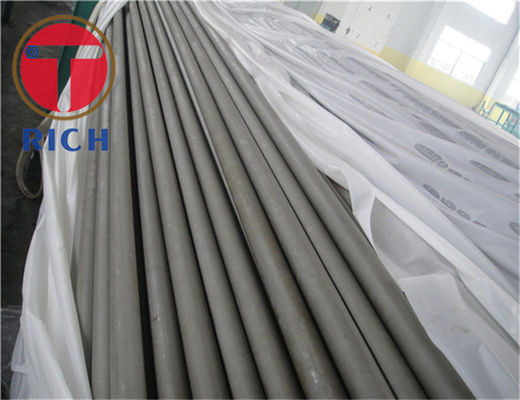

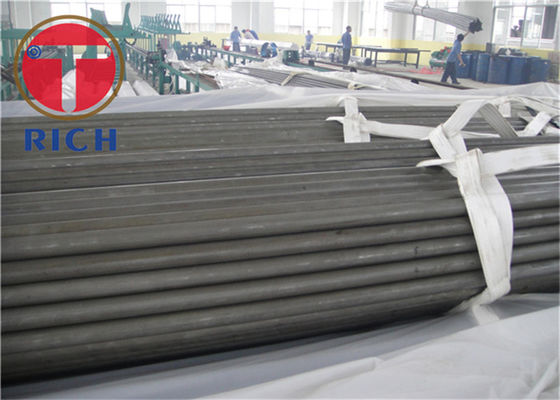

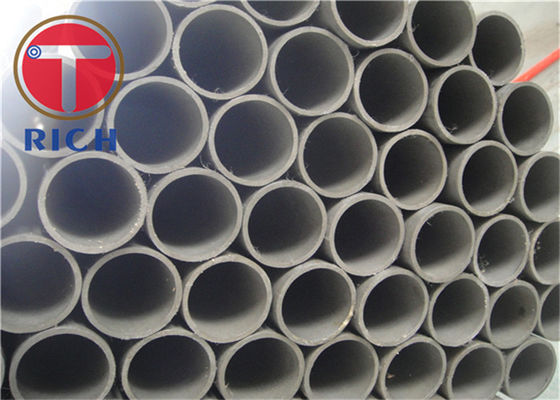

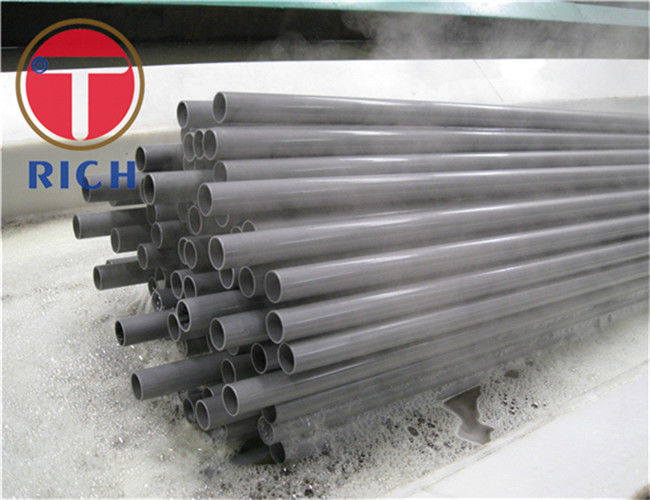

Product show:
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
