JIS G3461 Seamless And Welded Carbon Steel Tube For Boiler
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
JIS G3461
Trading Properties
Minimum Order Quantity:
3 tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
JIS G3461 Seamless and welded carbon steel pipes for boiler pipe and heat-exchanger Type: Seamless and welded carbon steel pipes Application: For boiler pipe, smoke pipe, heat-exchanger and chemical industry Technique: Cold-finished, hot-finished, ERW Product Description Chemical Composition: Grade ...
Product Details
Highlight:
JIS G3461 Seamless Carbon Steel Tube
,Boiler Welded Carbon Steel Tube
Product Name:
JIS G3461 Seamless And Welded Carbon Steel Tube For Boiler Tube And Heat-exchanger
Product Keyword:
Seamless And Welded Carbon Steel Pipe
Grade:
STB340 STB410 STB 510
Application:
For Boiler Pipe, Smoke Pipe, Heat-exchanger And Chemical Industry
Secondary:
Non-secondary
Section Shape:
Round
Product Description
JIS G3461 Seamless and welded carbon steel pipes for boiler pipe and heat-exchanger
Type: Seamless and welded carbon steel pipes
Application: For boiler pipe, smoke pipe, heat-exchanger and chemical industry
Technique: Cold-finished, hot-finished, ERW
Product Description
Chemical Composition:
| Grade | Process | Chemical Composition (%) | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
| STB340 | S, E | 0.18Max | 0.35Max | 0.30~0.60 | 0.035Max | 0.035Max | - | - | - | - |
| STB410 | S, E | 0.32Max | 0.35Max | 0.30~0.60 | 0.035Max | 0.035Max | - | - | - | - |
| STB510 | S, E | 0.25Max | 0.35Max | 1.00~1.50 | 0.035Max | 0.035Max | - | - | - | - |
Mechanical proporties:
| Symbol of class | Tensile strength N/mm2 {kgf/mm2} | Yield point or proof stress N/mm2 {kgf/mm2} | Elongation % | ||
| Outside diameter 20mm or over | Outside diameter 10mm or over to and excl. 10mm | Outside diameter under 10mm | |||
| No. 11 test piece No. 12 test piece | No. 11 test piece | No. 11 test piece | |||
| STB340 STB410 STB510 | 340{35}min. 410{42} min. 510{52} min. | 175{18} min. 255{26} min. 295{30} min. | 35 min. 25 min. 25 min. | 30 min. 20 min. 20 min. | 27 min. 17 min. 17 min. |
Manufacture Method:
| Symbol of class | Heat treatment | ||||
| Hot finished seamless steel tube | Cold finished seamless steel tube | Electric resistance welded steel tube other than hot finished or cold finished steel tube | Finished electric resistance welded steel tube | Fold finished electric resistance welded steel tube | |
| STB 340 | As manufactured, as required, low temperature annealing or normalizing may be performed. | Low temperature annealing, normalizing or full annealing. | Normalizing | As manufactured. However, as required, low temperature annealing or normalizing may be performed. | Normalizing |
| STB 410 | As manufactured. However, as required, low temperature annealing or normalizing may be performed. | Low temperature annealing, normalizing or full annealing. | Normalizing | Low temperature annealing | |
| STB 510 | Normalizing | ||||

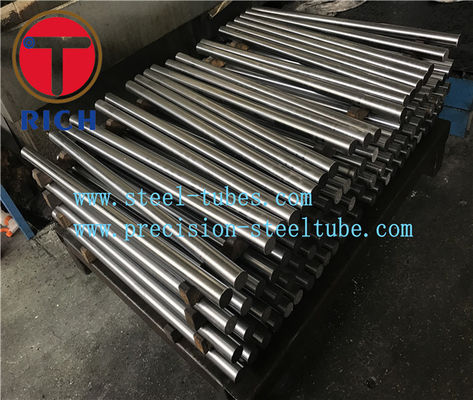

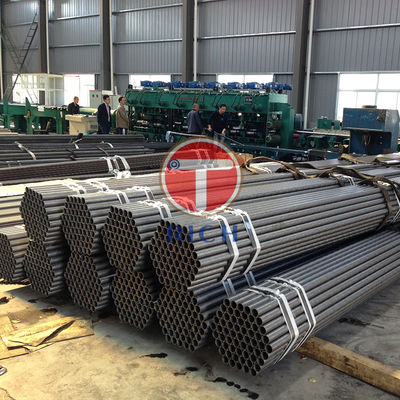

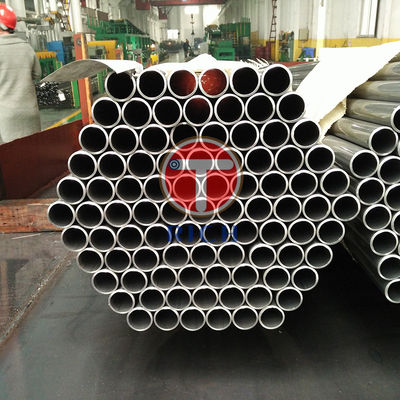

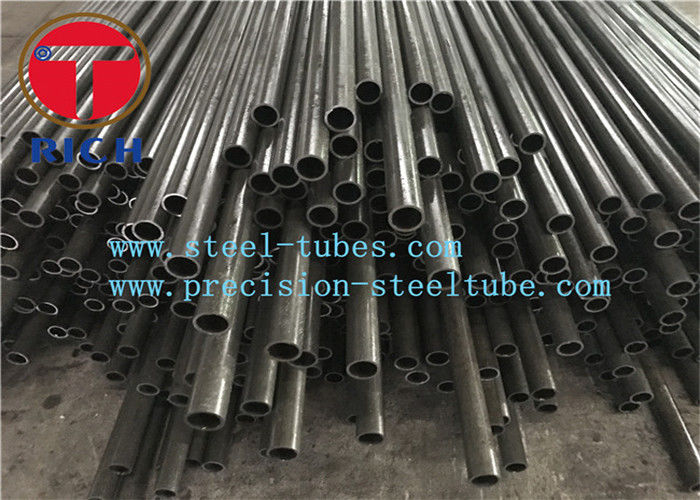

Product show:
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
