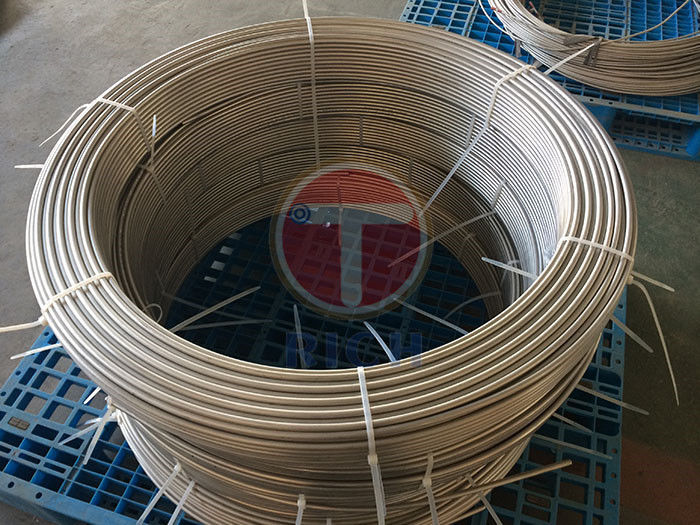

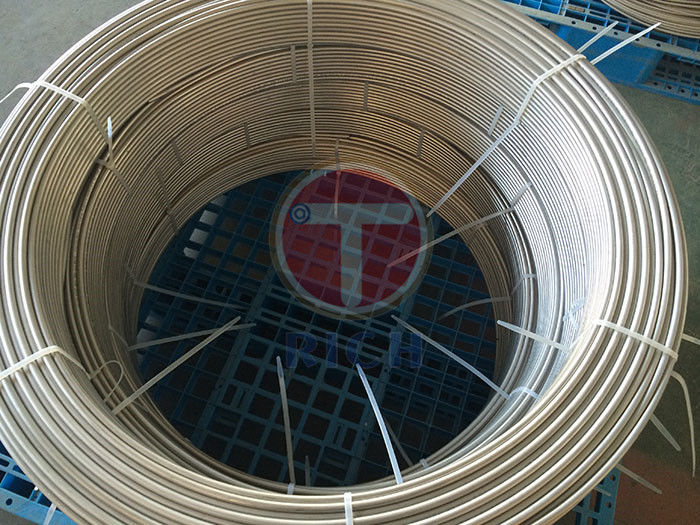

ASTM 304L 316L 2205 2507 825 625 Stainless Steel Coil Tube
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001,ISO14001,TS16949
Model Number:
ASME A789
Trading Properties
Minimum Order Quantity:
0.5 tons
Price:
negotiable
Payment Terms:
L/C, T/T
Supply Ability:
5000tons per year
Product Summary
ASTM 304L316 316L 2205 2507 825 625 Control Lines Tubing High Precision High Performance Stainless Steel Coil Tube Product Name: ASTM 304L316 316L 2205 2507 825 625 Control Lines Tubing High Precision High Performance Stainless Steel Coil Tube Standard: ASTM A789; ASTM A790; EN 10216-5 ect. Material...
Product Details
Highlight:
304L Stainless Steel Coil Tube
,ASTM 625 Stainless Steel Coil Tube
Material:
Super Duplex 2507
Standard:
ASME A789
Surface:
Annealed & Pickled
Length:
12000mm Max
Delivery Time:
30-40days
End:
Plain
Product Description
ASTM 304L316 316L 2205 2507 825 625 Control Lines Tubing High Precision High Performance Stainless Steel Coil Tube
Product Name: ASTM 304L316 316L 2205 2507 825 625 Control Lines Tubing High Precision High Performance Stainless Steel Coil Tube
Standard: ASTM A789; ASTM A790; EN 10216-5 ect.
Material: S32205, S31803, S32304, S32750, 2205, 2507, etc.
Size Range:
- Outer Diameter (OD): 3 mm (0.118”) to 25.4 mm (1.00”)
- Wall Thickness (WT): 0.5mm (0.020”) to 3mm (0.118”)
- OD tolerance +/- 0.005” (0.13mm) , other tolerances are available on request
- WT tolerance +/- 10%, other tolerances are available on request
- Tubing Coil lengths up to 6,000m (20,000ft) without orbital joints depending on product dimensions and its form (seamless tube or welded tube).
- Coil lengths up to 13,500m (45,000ft) with orbital joints
Application: Downhole hydraulic control lines
Downhole chemical control lines
Subsea control lines for hydraulic power and chemical injection line
Flowline control
Instrumentation tubing
Smooth inner surface control line tubing used in fibre optic applications
Others
| Item | material | size Length | Length(m)/pcs | Pressure(Mpa) |
| 1 | 316L,304L,304 | 1/8″×0.025″ | 3200 | 80 |
| 2 | 316L,304L,304 | 1/8″×0.035″ | 3200 | 100 |
| 3 | 316L,304L,304 | 1/4″×0.035″ | 2000 | 100 |
| 4 | 316L,304L,304 | 1/4″×0.049″ | 2000 | 100 |
| 5 | 316L,304L,304 | 3/8″×0.035″ | 1500 | 80 |
| 6 | 316L,304L,304 | 3/8″×0.049″ | 1500 | 100 |
| 7 | 316L,304L,304 | 1/2″×0.049″ | 1000 | 80 |
| 8 | 316L,304L,304 | 1/2″×0.065″ | 1000 | 100 |
| 9 | 316L,304L,304 | φ3mm×0.7mm | 3200 | 80 |
| 10 | 316L,304L,304 | φ3mm×0.9mm | 3200 | 100 |
| 11 | 316L,304L,304 | φ4mm×0.9mm | 3000 | 100 |
| 12 | 316L,304L,304 | φ4mm×1.1mm | 3000 | 100 |
| 13 | 316L,304L,304 | φ6mm×0.9mm | 2000 | 100 |
| 14 | 316L,304L,304 | φ6mm×1.1mm | 2000 | 100 |
| 15 | 316L,304L,304 | φ8mm×1mm | 1800 | 80 |
| 16 | 316L,304L,304 | φ8mm×1.2mm | 1800 | 100 |
| 17 | 316L,304L,304 | φ10mm×1mm | 1500 | 70 |
| 18 | 316L,304L,304 | φ10mm×1.2mm | 1500 | 70 |
| 19 | 316L,304L,304 | φ10mm×2mm | 500 | 100 |
| 20 | 316L,304L,304 | φ12mm×1.5mm | 500 | 80 |
