Seamless JIS G3460 Low Tempreture Steel Tube
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Model Number:
JIS G3460
Trading Properties
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
JIS G3460 low tempreture steel tube -JIS G3460 STPL380, STPL450, STPL690 Chemical Composition: Steel Grade Chemical Composition % C Si Mn P S Ni STPL 380 0.25 max. 0.35 max. 1.35 max. 0.035 max. 0.035 max. 3.20 ~ 3.80 STPL 450 0.18 max. 0.10~0.35 0.30~0.60 0.030 max. 0.030 max. 3.20 ~ 3.80 STPL 690 ...
Product Details
Highlight:
Seamless Low Tempreture Steel Tube
,JIS G3460 Low Tempreture Steel Tube
Product Name:
JIS G3460 Low Tempreture Steel Tube
Model No:
JIS G3460
Technique:
Cold Drawn
Surface Treatment:
Oiled
Type:
Seamless
Alloy Or Not:
Non-alloy
Section Shape:
Round
Application:
For Boilers,Superheaters,Steam Linepipes Of Boilers
Product Description
JIS G3460 low tempreture steel tube
-JIS G3460 STPL380, STPL450, STPL690 Chemical Composition:
| Steel Grade | Chemical Composition % | |||||
| C | Si | Mn | P | S | Ni | |
| STPL 380 | 0.25 max. | 0.35 max. | 1.35 max. | 0.035 max. | 0.035 max. | 3.20 ~ 3.80 |
| STPL 450 | 0.18 max. | 0.10~0.35 | 0.30~0.60 | 0.030 max. | 0.030 max. | 3.20 ~ 3.80 |
| STPL 690 | 0.13 max. | 0.10~0.35 | 0.90 max. | 0.030 max. | 0.030 max. | 8.50 ~ 9.50 |
-JIS G3460 STPL380, STPL450, STPL690 Mechanical Property:
| Steel Grade | Tensile strength | Yield point or proof stress | Elongation % | |||
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No. 11 or No. 12 test piece | No. 5 test piece | No. 4 test piece | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| STPL 380 | 39 {382}min. | 21{206} min. | 35 min. | 25 min. | 30 min. | 22 min. |
| STPL 450 | 46{451} | 25{245} min. | 30 min. | 20 min. | 24 min. | 16 min. |
| STPL 690 | 70{686} | 53{520} min. | 21 min. | 15 min. | 16 min. | 10 min. |

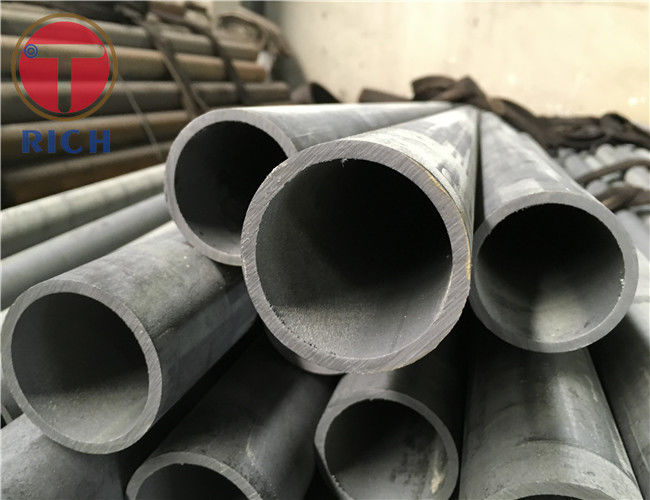

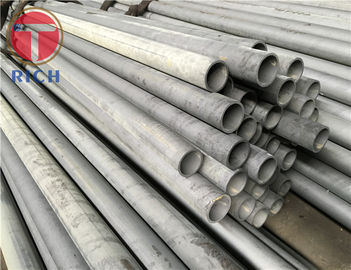

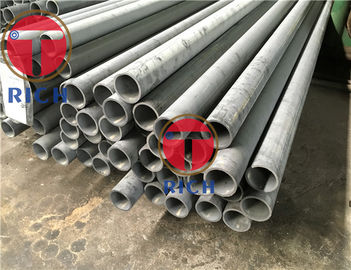

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
