GB/T 18984 Hot Rolled Seamless Steel Tubes For Low Temperature Service Piping
Contact Person : Richard SHEN
Phone Number : +86-13736164628
WhatsApp : +8613736164628
| Packaging Details : | In wooden boxes or hexagonal bundles in seaworthy packing | Delivery Time : | 35-45days |
|---|---|---|---|
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Place of Origin: | CHINA | Brand Name: | TORICH |
|---|---|---|---|
| Model Number: | JIS G3459 |
|
Detail Information |
|||
| Product Name: | JIS G3459 CARBON STEEL SEAMLESS TUBES | Model No: | JIS G3459 |
|---|---|---|---|
| Technique: | Cold Drawn | Surface Treatment: | Oiled |
| Type: | Seamless | Alloy Or Not: | Non-alloy |
| Section Shape: | Round | Application: | For Boilers,Superheaters,Steam Linepipes Of Boilers |
| High Light: | TORICH carbon steel seamless tubes,JIS G3459 carbon steel seamless tubes,TORICH steel seamless tubes |
||
Product Description
JIS G 3459 Carbon steel pipes for high pressure service
JIS G3459 Stainless Steel Pipe is used for the pipings for corrosion resistance, and different grades are applicated for low and high temperature sevice, manufacture method can be cold finished or hot finished, so wide range of specific product requirement can be satisfied to meet the customer's applications.
Chemical Composition:
| Grade | Chemical composition | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | |
| SUS 304 HTP | 0.04~0.10 | 0.75max. | 2.00 max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - | - |
| SUS 309 STP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - | - |
| SUS 310 TP | 0.15 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - |
| 0.08 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - | |
| SUS 316TP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316LTP | 0.030 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316TiTP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | Ti 5XC % min. |
Mechanical properties:
| Grade | Tensile strength | Proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No. 11 test piece No. 12 test piece |
No.5 test piece | No.4 test piece | ||
| Longitudinal direction | Transverse direction | Longitudinal direction | Transverse direction | |||
| SUS 304TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304HTP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304LTP | 49{481}min. | 18{177} min | 35 min | 25 min | 30 min | 22 min |
| SUS 309TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 309STP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 310TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 310STP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 316TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 316HTP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 316LTP | 49{481}min. | 18{177} min | 35 min | 25 min | 30 min | 22 min |
| SUS 316TiTP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |

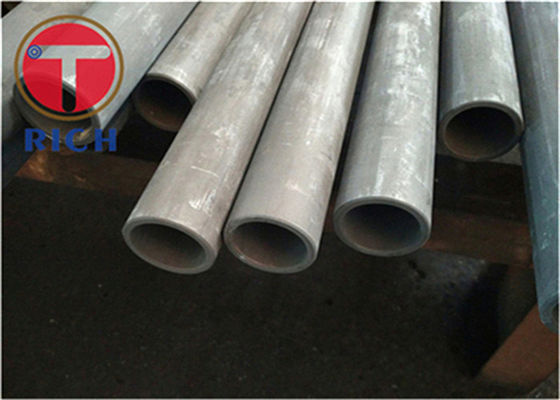

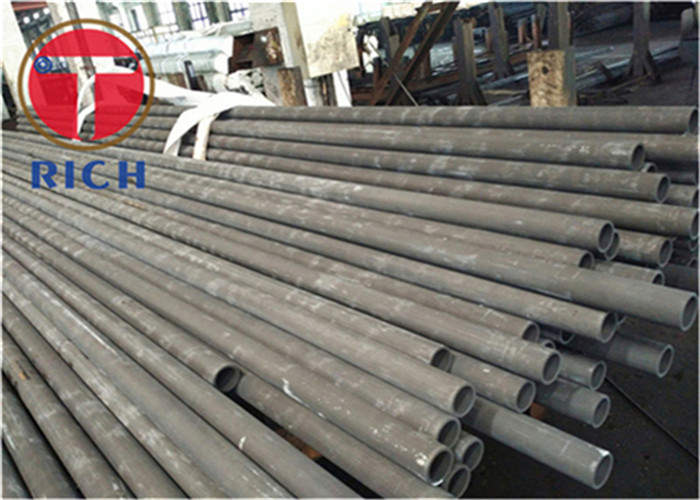

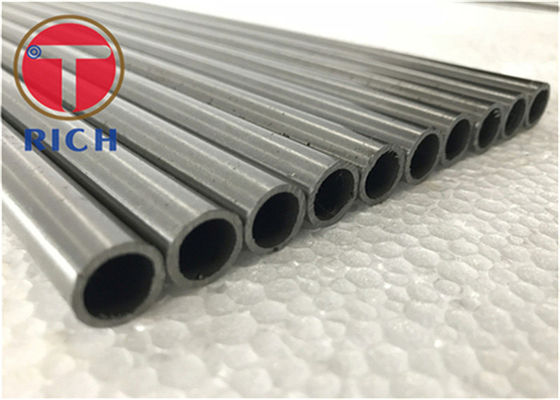

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
