JIS G3452 Carbon 10.5mm Cold Drawn Seamless Steel Tube
Product Details
JIS G3452 cold drawn steel tube
,JIS G3452 Cold Drawn Seamless Steel Tube
,10.5mm Cold Drawn Seamless Steel Tube
JIS G 3452 Carbon steel pipes for ordinary piping
JIS G3452 Carbon Steel Pipes for Ordinary Piping specifies the carbon steel pipe, hereinafter referred to as the "pipes", used for the pipings for conveying steam, water, oil, gas, air, etc. at comparatively low working pressure.
| CHEMICAL COMPOSITION unit (%) | ||
| Steel grade | P | S |
| SGP | 0.040max | 0.040max |
Note: Special steel grade is also available, according to customer request.
| MECHANICAL PROPERTIES | ||
| Steel grade | Tensile strength Mpa | Elongation% |
| SGP | 290 min | 30min |
| Dimensions weights and Demensional Tolerances | |||||||
| Nominal Diameter | OD(mm) | OD Tolerances | WT mm | WT Tolerances | Unit mass excluding socket kg/m | ||
| A | B | Pipes to be cut in taper thread | Other pipes | ||||
| 6 | 1/8 | 10.5 | ±0.5mm | ±0.5mm | 2.0 | +Not specified -12.5% | 0.419
|
| 8 | 1/4 | 13.8 | ±0.5mm | ±0.5mm | 2.3 | 0.652 | |
| 10 | 3/8 | 17.3 | ±0.5mm | ±0.5mm | 2.3 | 0.851 | |
| 15 | 1/2 | 21.7 | ±0.5mm | ±0.5mm | 2.8 | 1.31 | |
| 20 | 3/4 | 27.2 | ±0.5mm | ±0.5mm | 2.8 | 1.68 | |
| 25 | 1 | 34.0 | ±0.5mm | ±0.5mm | 3.2 | 2.43 | |
| 32 | 1 1/4 | 42.7 | ±0.5mm | ±0.5mm | 3.5 | 3.38 | |
| 40 | 1 1/2 | 48.6 | ±0.5mm | ±0.5mm | 3.5 | 3.89 | |
| 50 | 2 | 60.5 | ±0.5mm | ±1% | 3.8 | 5.31 | |
| 65 | 2 1/2 | 76.3 | ±0.7mm | ±1% | 4.2 | 7.47 | |
| 80 | 3 | 89.1 | ±0.8mm | ±1% | 4.2 | 8.79 | |
| 90 | 3 1/2 | 101.6 | ±0.8mm | ±1% | 4.2 | 10.1 | |
| 100 | 4 | 114.3 | ±0.8mm | ±1% | 4.5 | 12.2 | |
| 125 | 5 | 139.8 | ±0.8mm | ±1% | 4.5 | 15.0 | |
| 150 | 6 | 165.2 | ±0.8mm | ±1.6mm | 5.0 | 19.8 | |
| 175 | 7 | 190.7 | ±0.9mm | ±1.6mm | 5.3 | 24.2 | |
| 200 | 8 | 216.3 | ±1.0mm | ±0.8% | 5.8 | 30.1 | |
| 225 | 9 | 241.8 | ±1.2mm | ±0.8% | 6.2 | 36.0 | |
| 250 | 10 | 267.4 | ±1.3mm | ±0.8% | 6.6 | 42.4 | |
| 300 | 12 | 318.5 | ±1.5mm | ±0.8% | 6.9 | 53.0 | |
| 350 | 14 | 355.6 | - | ±0.8% | 7.9 | 67.7 | |
| 400 | 16 | 406.4 | - | ±0.8% | 7.9 | 77.6 | |
| 450 | 18 | 457.2 | - | ±0.8% | 7.9 | 87.5 | |
| 500 | 20 | 508.0 | - | ±0.8% | 7.9 | 97.4 | |

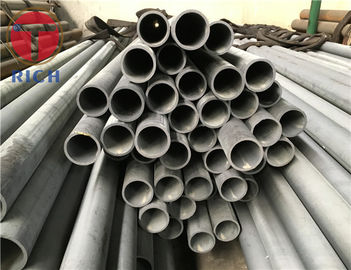

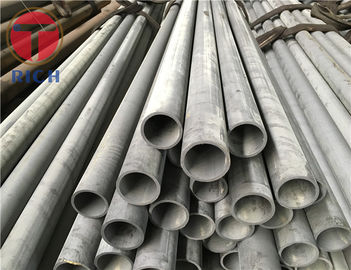

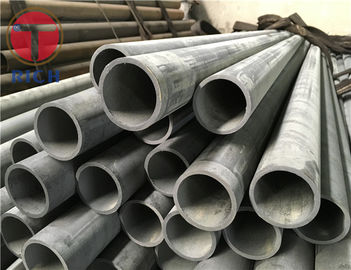

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
