309 310 stainless steel pipe
Product Details
310 stainless steel pipe
,309 stainless steel pipe
,309 310 Stainless Steel Pipe
309 310 stainless steel pipe
Grade 310 is an austenitic stainless steel, which offers exceptional high temperature properties, along with good ductility and weldability. Type 310 stainless steel pipes are typically used for elevated temperature applications. High chromium and nickel content of 310 grade steel pipes provides excellent resistance to corrosion and oxidation, as well as superior strength in temperatures up to 2100°F. The higher chromium and nickel content, also makes it superior to 304 or 309 stainless pipes.
Grade 310S is a low carbon alternative of grade 310. It is used in a lower temperature range when the application environment involves moist corrodents. However, the lower carbon content reduces the high temperature strength of stainless steel grade 310S compared to 310.
Chemical Composition
| Typical Chemical Composition % (max values, unless noted) | |||||||||
| Grade | C | Mn | P | Si | S | Ni | Cr | Mo | Fe |
| 310 / 310S | 0.04 min 0.08 max | 2.0 max | 0.04 max | 0.75 max | 0.03 max | 19.0 min 22.0 max | 24.0 min 26.0 max | 0.75 max | balance |
Mechanical Properties
| Typical Room Temperature Mechanical Properties | |||||
| Grade | Tensile Strength KSI (min.) | Yield Strength 0.2% Offset KSI (min.) | Elongation (% in 2ʺ(50.8 mm) | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 310 / 310S | 75 | 30 | 40 | 217 | 95 |

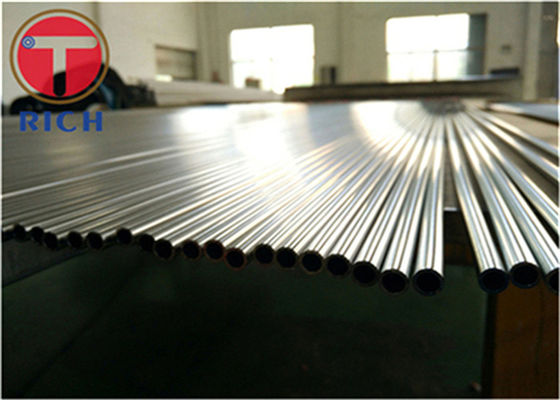

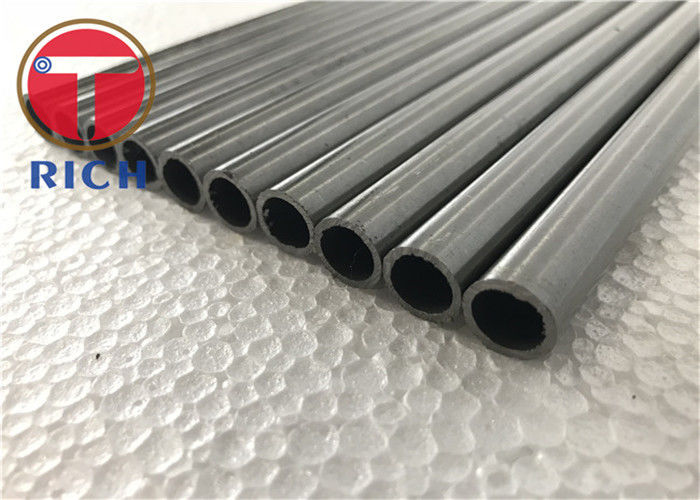

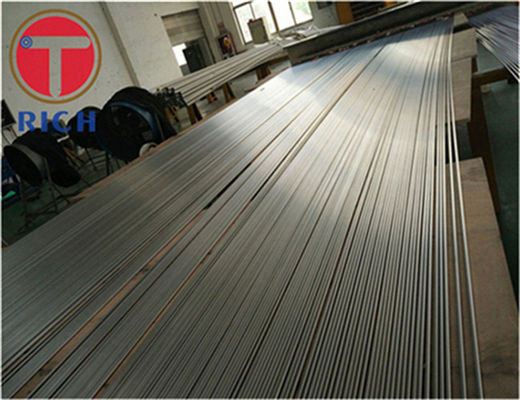

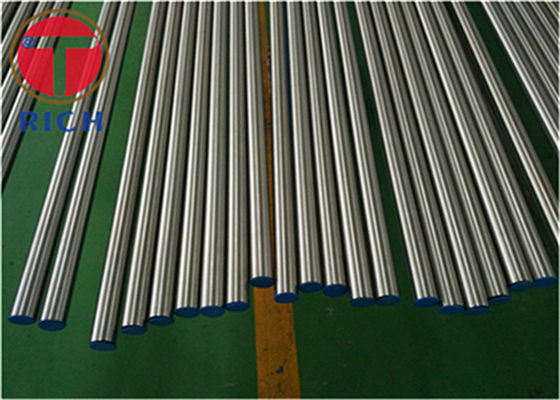

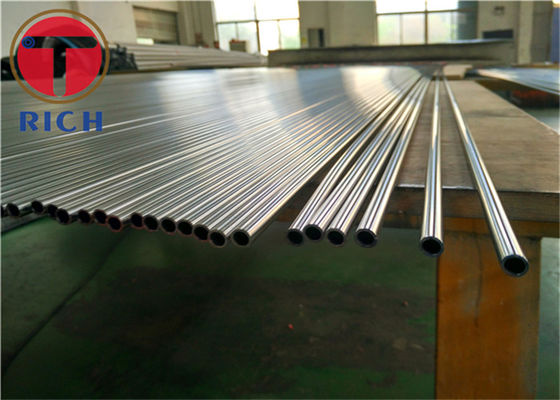

Product Pictures

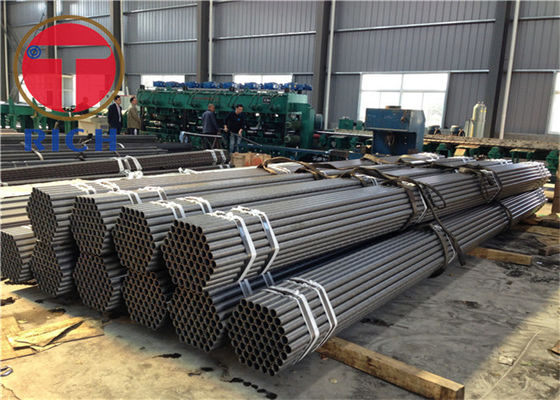

Packaging and Delivery
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
