ASTM A269 316l annealed seamless stainless tubing
Product Details
ASTM A269 Seamless Stainless Tubing
,316l Seamless Stainless Tubing
,Annealed Seamless Stainless Tubing
ASTM A269 316l annealed seamless stainless tubing
The Stainless Steel Welded Tube is stronger but has seam, or the track of welding on it. The welded tubes are also dimensionally less accurate than the seamless tubes. These can be used as Stainless Steel Mechanical Tubing in applications where high mechanical properties are required. The 316 is a reasonably corrosion resistant austenitic stainless steel that can be used in most applications. There are other categories such as ferritic, martensitic and duplex stainless steels. Roopam Steel is stainless steel tube manufacturer in india, We have huge stock of Stainless Steel Round Tube due to which we are leading stainless steel tubing supplier in Mumbai. Some are used as Stainless Steel Sanitary Tubing. There are different specifications to nominate different properties. For example, the ASTM A269 Welded Tube includes grades 304, 304L, 316 and 316L with the diameters ranging from 1/8 inches to 24 inches.
Chemical compositions
| ASTM A269 Seamless Tubing Grades | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| ASTM A269 304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| ASTM A269 304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| ASTM A269 316 | S31600 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| ASTM A269 316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Mechanical Properties
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| ASTM A269 304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| ASTM A269 304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| ASTM A269 316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| ASTM A269 316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |

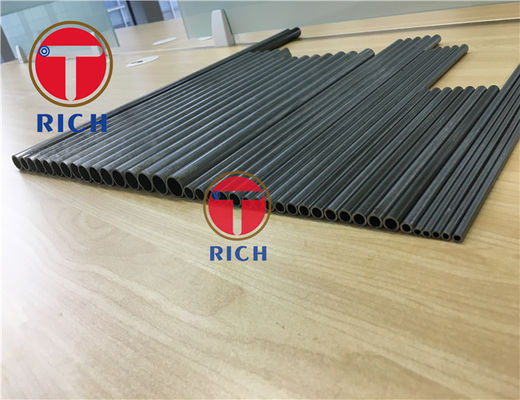

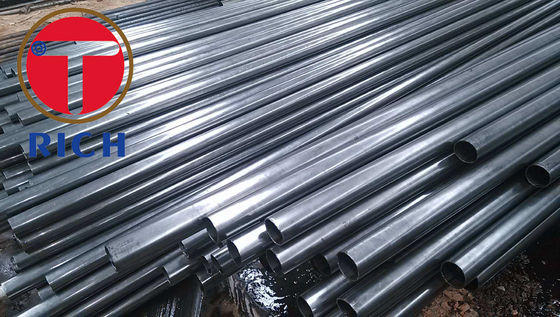

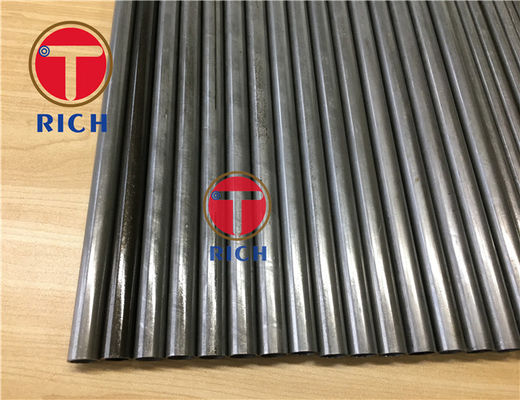

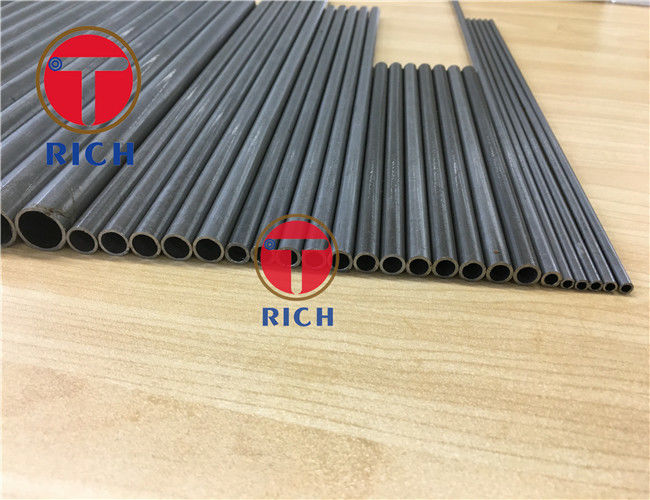

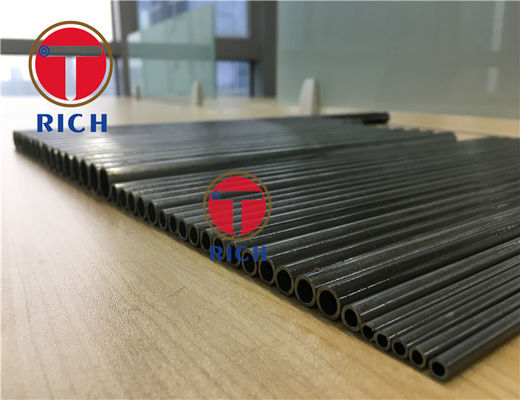

Product Pictures
Packaging and Delivery
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
