ASTM A240 UNS S32760 Steel Pipe
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Model Number:
ASTM A790
Trading Properties
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
ASTM A240 UNS S32760 Steel Pipe ASTM A240 UNS S32760 Plate is a super duplex grade stainless steel alloy made for specific applications. Super duplex is a grading of duplex steel which is a combination of ferrite and austenitic steel types. By combining the structures of ferrite and austenite steels...
Product Details
Highlight:
UNS S32760 Steel Pipe
,ASTM A240 Steel Pipe
Product Name:
ASTM A240 UNS S32760 Steel Pipe
Type:
Seamless
Alloy Or Not:
Non-alloy
Section Shape:
Round
Application:
For Boilers,Superheaters,Steam Linepipes Of Boilers
Keyword:
Duplex Stainless Steel Pipe
Standard:
ASTM A240
Place Of Orign:
Zhejiang,China
Product Description
ASTM A240 UNS S32760 Steel Pipe
ASTM A240 UNS S32760 Plate is a super duplex grade stainless steel alloy made for specific applications. Super duplex is a grading of duplex steel which is a combination of ferrite and austenitic steel types. By combining the structures of ferrite and austenite steels, a remarkable corrosion resistance along with high tensile strength is achieved. SA 240 UNS S32760 Sheet is used in ships, tanks and containers to deploy in most of the surfaces around the metal lattice. UNS S32760 F55 Coil not only holds the high pressure in such systems but also remains the same for longer periods of time. Marine environment poses a high corrosion threat to metal due to the high chloride ion concentration and the salty solution. But since the Super Duplex UNS S32760 Strips is equipped with necessary composition to withstand such conditions, it is preferred in marine environments.
| ASTM A240 UNS S32760 Plate Specification | ASTM A240 / ASME SA240 / NACE MR-0175 |
|---|---|
| Tolerances of width and thickness of ASTM A240 UNS S32760 Plate |
|
| Standard ASTM A240 UNS S32760 Plate sizes in stock | 1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm
|
| UNS S32760 Zeron 100 Plate & Sheet Thickness | 0.1 to 100 mm Thk |
| Width | 10-2500mm |
| Super Duplex 2507 UNS S32760 Plate & Sheet Length | 2m, 2.44m, 3m, or as required |
| ASTM A240 UNS S32760 Plate Finish | 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM A240 UNS S32760 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Duplex Stainless Steel UNS S32760 Plate & Sheet Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
ASTM A240 UNS S32760 Sheet Chemical Composition
| C | Mn | P | S | Si | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|
| 0.03 | 1.00 | 0.03 | 0.01 | 1.00 | 24.0-26.0 | 6.0-8.0 | 3.0-4.0 | 0.20-0.30 |
SA 240 UNS S32760 Plate Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
|---|---|---|---|---|
| Super Duplex S32760 | 7.8 | 0.281 | 1350 | 2460 |
ASME SA 240 UNS S32760 Plate Tensile & Yield Strength
| Tensile | Yield | Elongation | Hardness |
|---|---|---|---|
| MPa min | MPa min | % min | Brinell max |
| 750 | 550 | 25 | 270 |
ASTM A240 UNS S32760 Plate Equivalent
| Grade | UNS | EN | W-Nr | AFNOR |
|---|---|---|---|---|
| 2507 Plate | S32760 | Super Duplex DIN 1.4501 | 1.4501 | - |

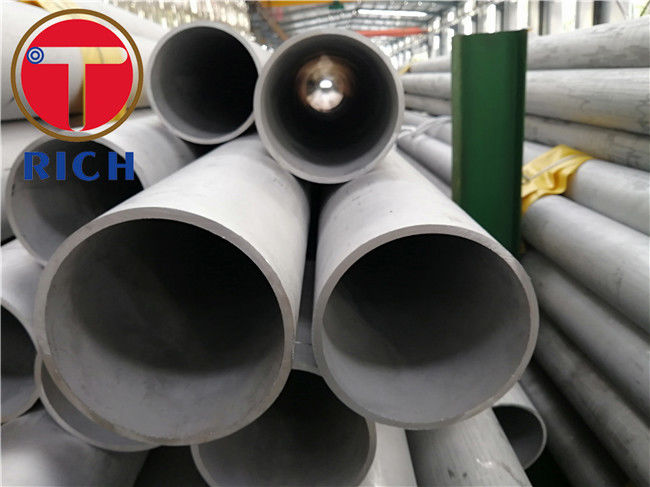

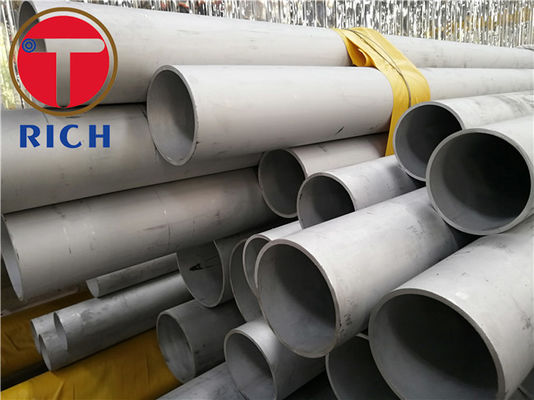

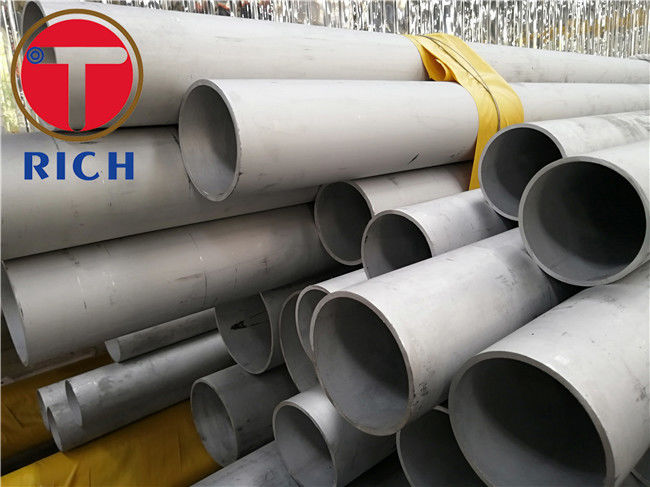

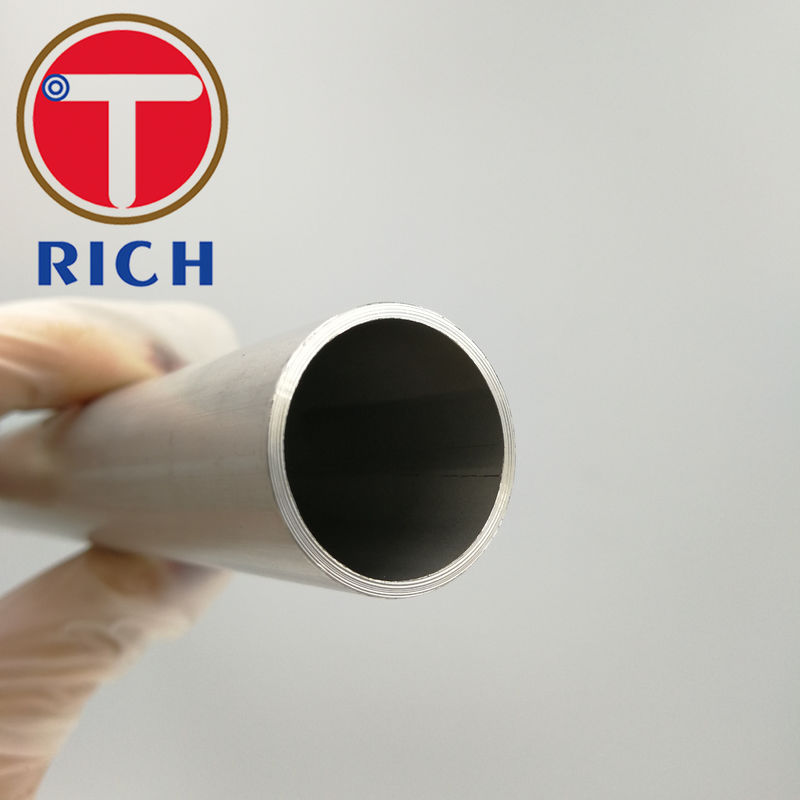

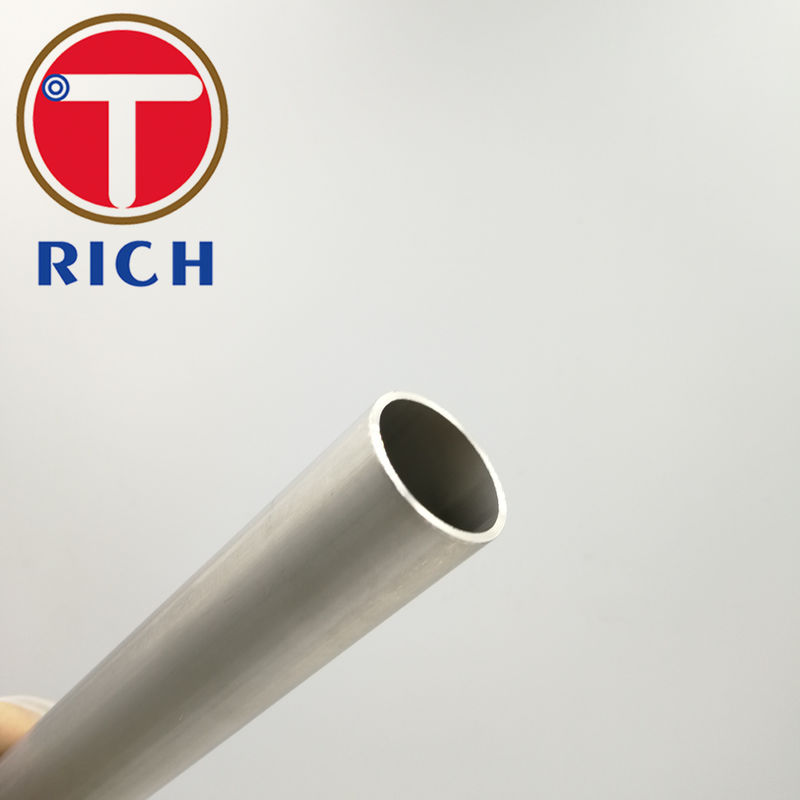

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
