ASTM A790 UNS S32750 Welded Pipe
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Model Number:
ASTM A790
Trading Properties
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
ASTM A790 UNS S32750 Welded Pipe ASTM A790 UNS S32750 is a variation of super duplex steel. The duplex steel material is made up of chromium and molybdenum alloy. The duplex has the ferritic and austenitic steel properties in its metallurgic microstructure. This gives the name duplex to the material...
Product Details
Highlight:
UNS S32750 Welded Pipe
,ASTM A790 Welded Pipe
Product Name:
ASTM A790 UNS S32750 Welded Pipe
Type:
Seamless
Alloy Or Not:
Non-alloy
Section Shape:
Round
Application:
For Boilers,Superheaters,Steam Linepipes Of Boilers
Keyword:
Duplex Stainless Steel Pipe
Standard:
ASTM A790
End:
BE, BOE, BOE, TOE, PBE, BSE, POE, BBE, BLE
Product Description
ASTM A790 UNS S32750 Welded Pipe
ASTM A790 UNS S32750 is a variation of super duplex steel. The duplex steel material is made up of chromium and molybdenum alloy. The duplex has the ferritic and austenitic steel properties in its metallurgic microstructure. This gives the name duplex to the material. The SA 790 UNS S32750 belongs to the super duplex category. There are three groups of duplex, namely the duplex, super duplex and lean duplex. Each of them has their own composition and specific mechanical properties as a result. As the Super Duplex UNS S32750 Pipe belongs to the super duplex category, it is used for high strength and high corrosive applications. The alloy has 25% chromium in its composition along with 4% molybdenum and 7% nickel. This material composition makes it stronger and much corrosion resistant than the ordinary duplex material.
UNS S32750 Pipe Chemical composition
| Carbon | Chromium | Manganese | Molybdenum | Nitrogen | Nickel | Phosphorus | Sulfur | Silicon |
|---|---|---|---|---|---|---|---|---|
| 0.030 max | 24.0-26.0 | 1.20 max | 3.0-5.0 | 0.24-0.32 | 6.0-8.0 | 0.035 max | 0.020 max | 0.8 max |
UNS S32750 Specifications & Equivalent
| Alloy | Common Name | British | European | United States | Tensile Strength | Proof Stress | Elongation |
|---|---|---|---|---|---|---|---|
| Super Duplex Alloy 2507 | Alloy 2507 | 1.4410 | UNS S32750 | F53 | 800 [116] | 550 [79.8] | 15 |
A790 UNS S32750 Mechanical Strength
| Melting Range (°C) | 1350 |
| Melting Range (°F) | 2460 |
| UNS | S32750 |
| Density (g/cm 3) | 7.8 |
| Density (lb/in 3) | 0.281 |

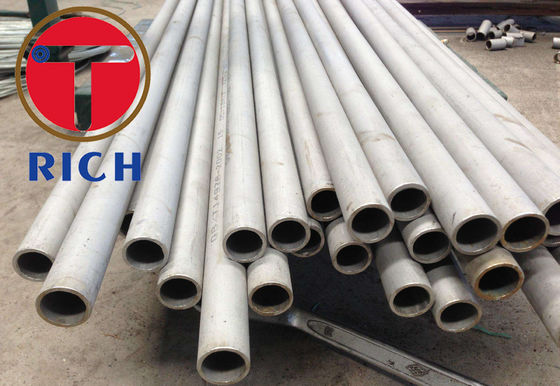

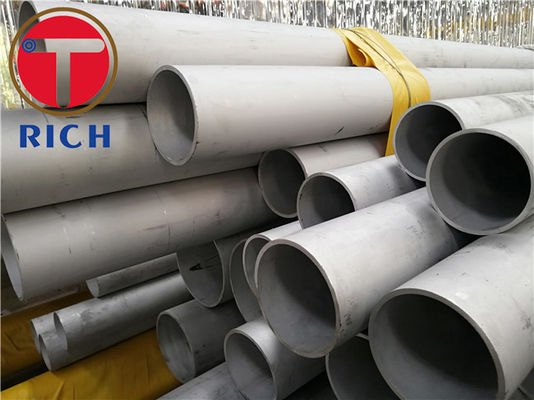

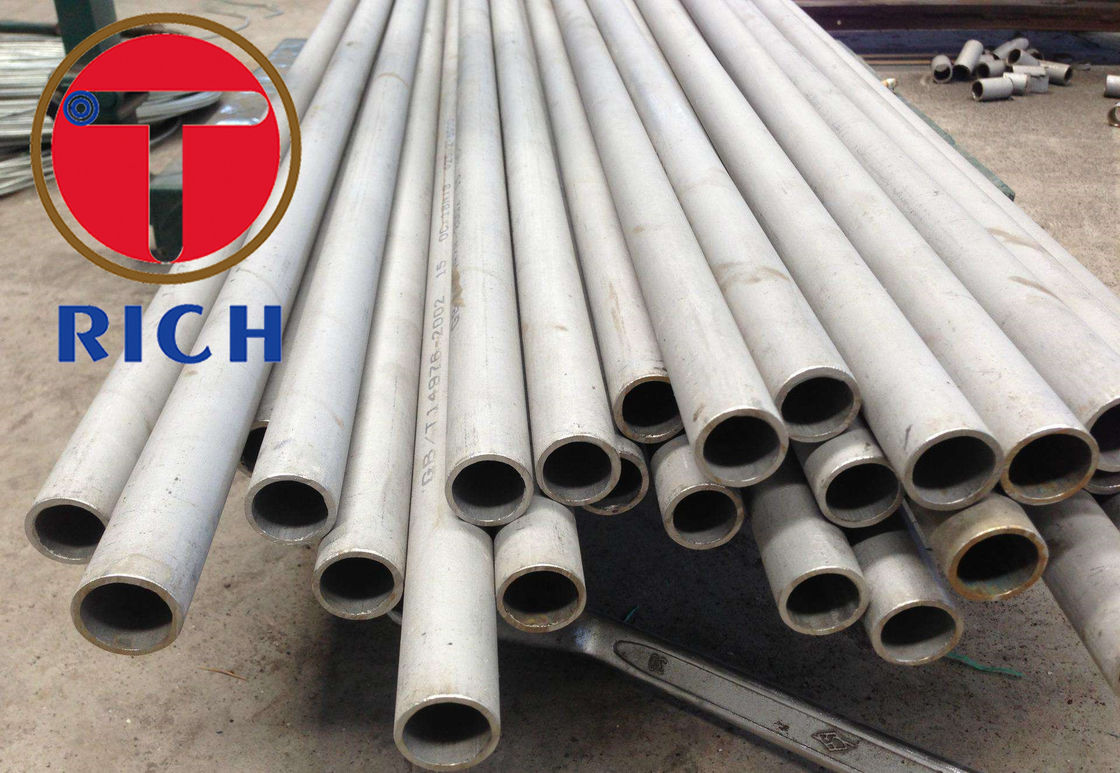

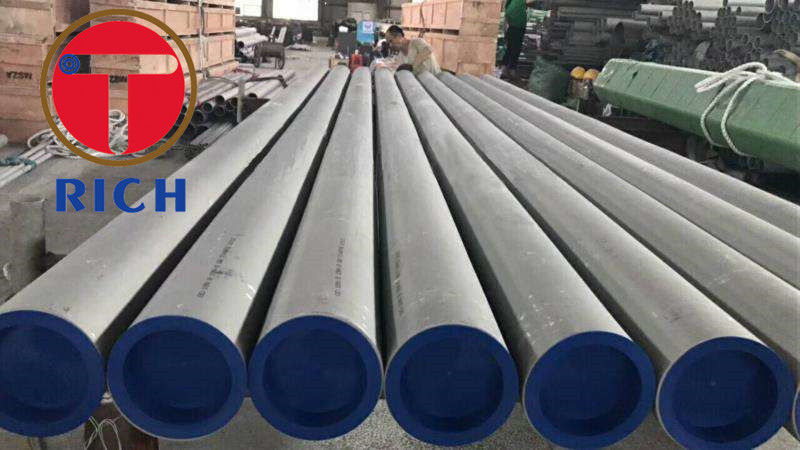

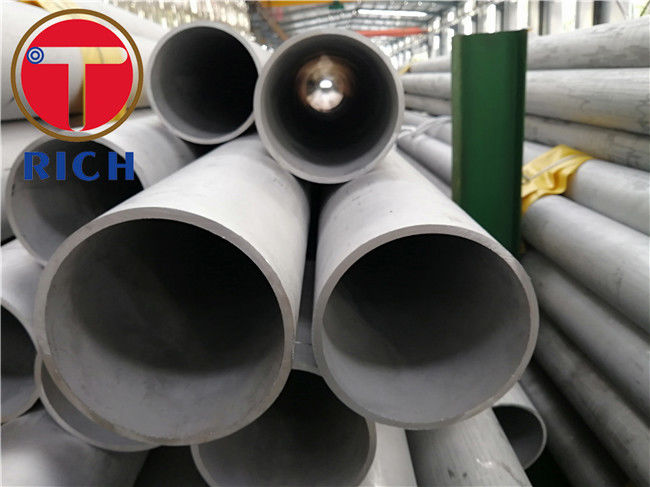

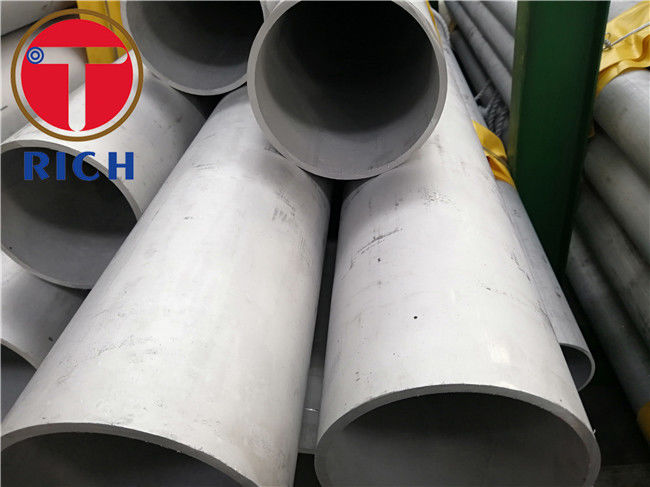

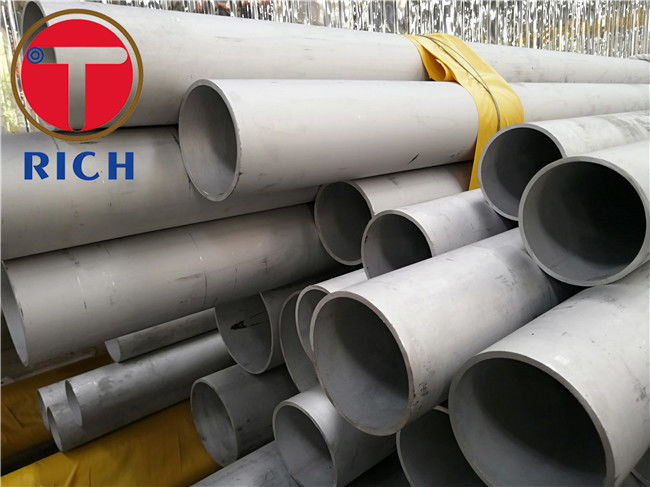

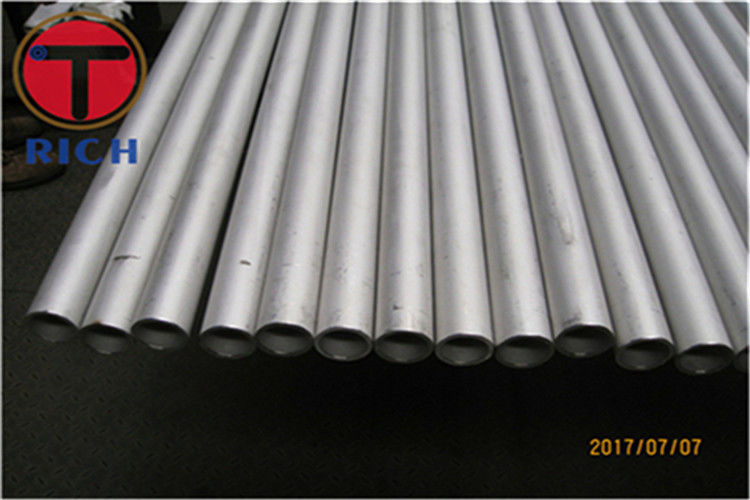

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
