ASTM A789 Duplex steel S31803 tube
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Model Number:
ASTM A 789 ASME SA 789
Trading Properties
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Summary
ASTM A789 Duplex steel S31803 tube ASTM A789 /A789M Covers Grades of nominal wall thickness, stainless steel tubing for services requiring general corrosion resistance, with particular emphasis on resistance to stress corrosion cracking. These steels are susceptible to embrittlement if used for ...
Product Details
Highlight:
S31803 Duplex steel S31803 tube
Product Name:
ASTM A789 Duplex Steel S31803 Tube
Type:
Seamless
Alloy Or Not:
Non-alloy
Section Shape:
Round
Application:
For Boilers,Superheaters,Steam Linepipes Of Boilers
Keyword:
Duplex Stainless Steel Pipe
Grade:
ASTM A 789 ASME SA 789
Standard:
ASTM A789/A789M, ASME SA789
Product Description
ASTM A789 Duplex steel S31803 tube
ASTM A789 /A789M Covers Grades of nominal wall thickness, stainless steel tubing for services requiring general corrosion resistance, with particular emphasis on resistance to stress corrosion cracking. These steels are susceptible to embrittlement if used for prolonged periods at elevated temperatures.
Chemical Composition
| UNS Designation | Composition, % | ||||||||||
| C Max | Mn max | P max | S max | Si max | Ni | Cr | Mo | N | Cu | Others | |
| S31803 | 0.03 | 2 | 0.03 | 0.02 | 1 | 4.5-6.5 | 21.0-23.0 | 2.5-3.5 | 0.08-0.20 | . . . | . . . |
| S32205 | 0.03 | 2 | 0.03 | 0.02 | 1 | 4.5-6.5 | 22-23 | 3.0-3.5 | 0.14-0.20 | . . . | . . . |
| S31500 | 0.03 | 1.20-2.00 | 0.03 | 0.03 | 1.40-2.0 | 4.3-5.2 | 18-19 | 2.5-3.0 | 0.05-0.10 | . . . | . . . |
| S32550 | 0.04 | 1.5 | 0.04 | 0.03 | 1 | 4.5-6.5 | 24-27 | 2.9-3.9 | 0.10-0.25 | 1.50-2.50 | . . . |
| S31200 | 0.03 | 2 | 0.045 | 0.03 | 1 | 5.5-6.5 | 24-26 | 1.-2.0 | 0.14-0.20 | . . . | . . . |
| S31260 | 0.03 | 1 | 0.03 | 0.03 | 0.75 | 5.5-7.5 | 24-26 | 2.5-3.5 | 0.10-0.30 | 0.20-0.80 | W 0.10-0.50 |
| S32001 | 0.03 | 4.0-6.0 | 0.04 | 0.03 | 1 | 1.0-3.0 | 19.5-21.5 | 0.6 | 0.05-0.17 | 1.00 max | . . . |
| S32304 | 0.03 | 2.5 | 0.04 | 0.04 | 1 | 3.0-5.5 | 21.5-24.5 | 0.05-0.60 | 0.05-0.20 | 0.05-0.60 | . . . |
| S32750 | 0.03 | 1.2 | 0.035 | 0.02 | 0.8 | 6.0-8.0 | 24-26 | 3.0-5.0 | 0.24-0.32 | 0.50max | . . . |
| S32760 | 0.05 | 1 | 0.03 | 0.01 | 1 | 6.0-8.0 | 24-26 | 3.0-4.0 | 0.20-0.30 | 0.50-1.00 | W 0.50-1.00 |
| S32950 | 0.03 | 2 | 0.035 | 0.01 | 0.6 | 3.5-5.2 | 26-29 | 1.0-2.5 | 0.15-0.35 | . . . | . . . |
| S32520 | 0.03 | 1.5 | 0.035 | 0.02 | 0.8 | 5.5-8.0 | 23-25 | 3.0-5.0 | 0.20-0.35 | 0.8 | . . . |
Heat Treatment Requirements
| UNS Designation | Temperature | Quench |
| S31803 | 1870-2010 °F [1020-1100°C] | Rapid cooling in air or water |
| S32205 | 1870-2010 °F [1020-1100°C] | Rapid cooling in air or water |
| S31500 | 1800-1900 °F [980-1040°C] | Rapid cooling in air or water |
| S32550 | 1900 °F [1040°C] min | Rapid cooling in air or water |
| S31200 | 1920-2010 °F [1050-1100°C] | Rapid cooling in water |
| S31260 | 1870-2010 °F [1020-1100°C] | Rapid cooling in water |
| S32001 | 1800-1950 °F [982-1066°C] | Rapid cooling in air or water |
| S32304 | 1700-1920 °F [925-1050°C] | Rapid cooling in air or water |
| S32750 | 1880-2060 °F [1025-1125°C] | Rapid cooling in air or water |
| S32760 | 2010-2085 °F [1100-1140°C] | Rapid cooling in air or water |
| S32950 | 1820-1880 °F [990-1025°C] | Rapid cooling in water |
| S32520 | 1975-2050 °F [1080-1120°C] | Rapid cooling in air or water |
Tensile Requirements
| Grade | Tensile strength, min, ksi [MPa] | Yield strength, min ksi [MPa] | Elongation in 2 in., or 50mm, min,% | Hardness, Max Brinell |
| S31803 | 90 [620] | 65 [450] | 25 | 290 |
| S32205 | 95 [655] | 70 [485] | 25 | 290 |
| S31500 | 92 [630] | 64 [440] | 30 | 290 |
| S32550 | 110 [760] | 80 [550] | 15 | 297 |
| S31200 | 100 [690] | 65 [450] | 25 | 280 |
| S31260 | 100 [690] | 65 [450] | 25 | 290 |
| S32001 | 90 [620] | 65 [450] | 25 | 290 |
| S32304 | 100 [690] | 65 [450] | 25 | 290 |
| S32750 | 116 [800] | 80 [550] | 15 | 310 |
| S32760 | 109 [750] | 80 [550] | 25 | 300 |
| S32950 | 100 [690] | 70 [480] | 20 | 290 |
| S32520 | 112 [770] | 80 [550] | 25 | 310 |

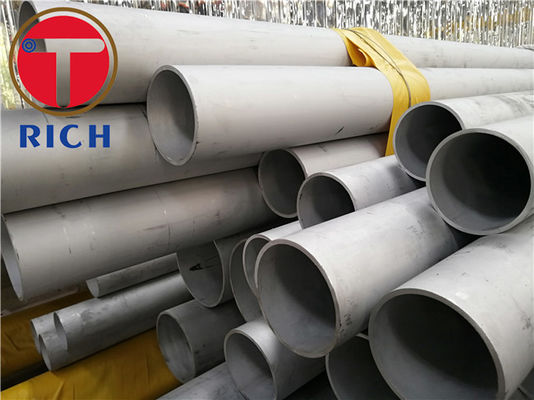

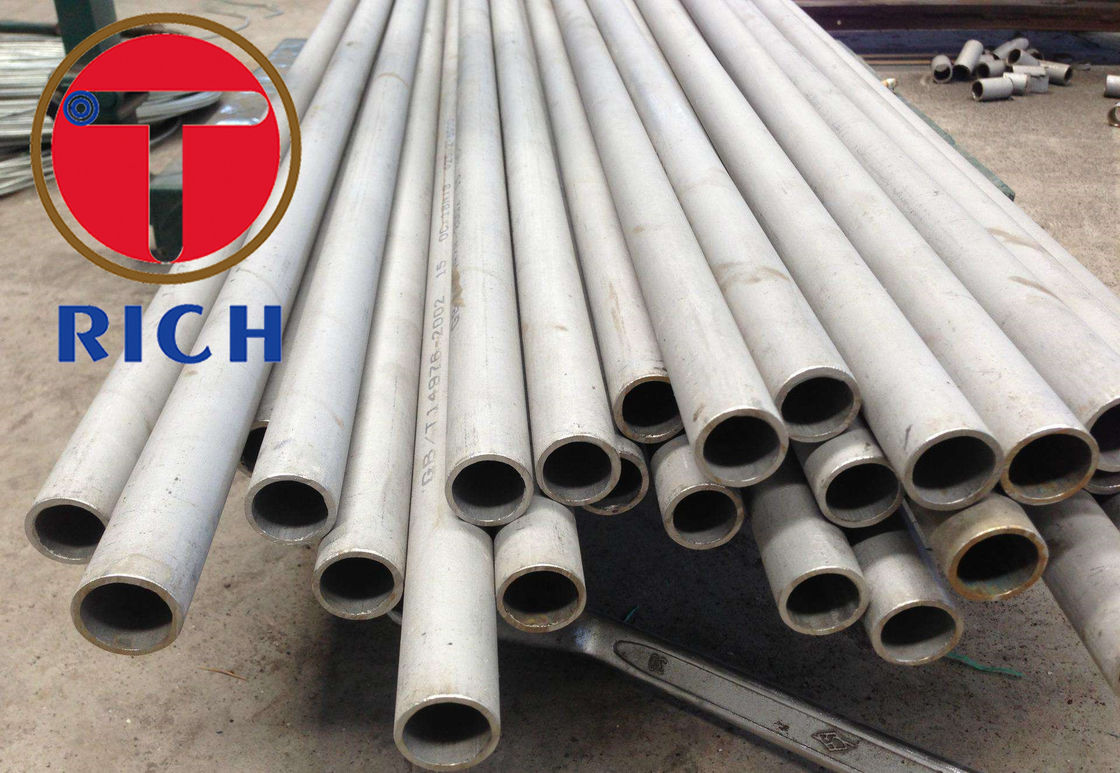

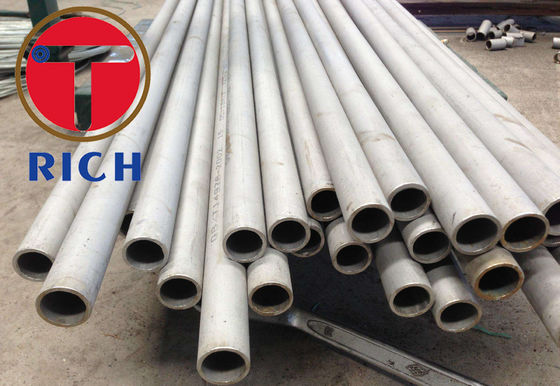

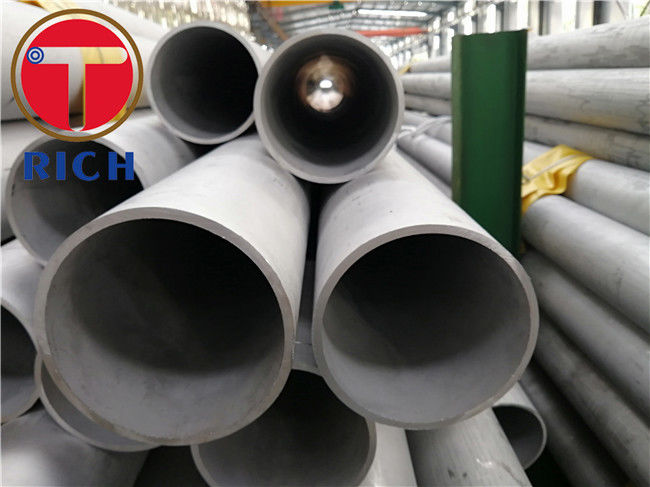

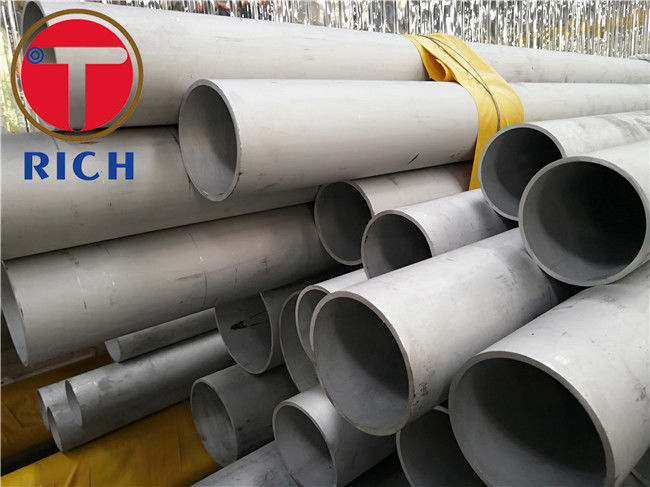

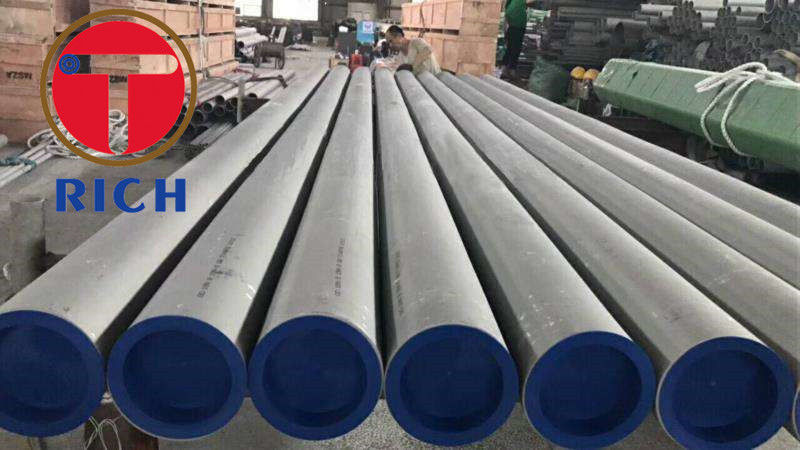

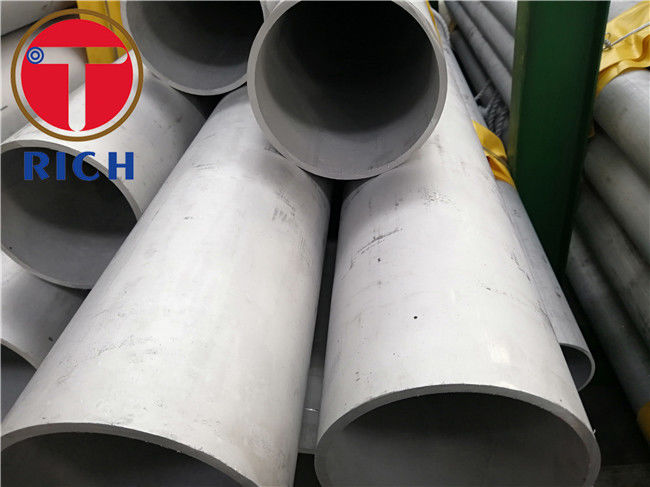

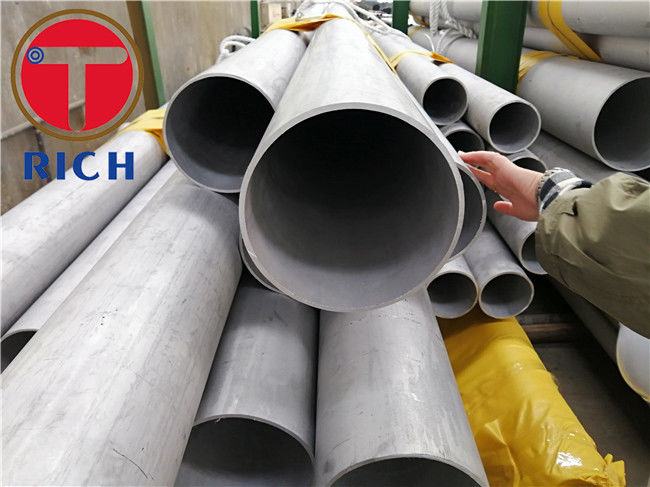

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
