Q345 Hot Formed Seamless Steel Tube Round Square Rectangle
Basic Properties
Place of Origin:
China
Brand Name:
Torich
Certification:
ISO9001, ISO14001, TS16949
Model Number:
ASTM/DIN/EN
Trading Properties
Minimum Order Quantity:
5 Tons
Price:
USD 850 - 1200 per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000 Tons per Year
Product Summary
Hot Formed Steel Pipe Q345 Round Square Rectangle Seamless Steel Tube Material: Q345 A/B/C/D/E Technology: Seamless hot formed Size Range: O.D.: 5 - 420 mm W.T.: 0.5 - 50 mm Length: Max 12000 mm Q345 is a low-alloy steel, widely used in bridges, vehicles, ships, buildings, pressure vessels, special ...
Product Details
Highlight:
Seamless Steel Tube Q345
,Rectangle Seamless Steel Tube
,Round Seamless Steel Tube
Product Name:
Hot Formed Steel Pipe Q345 Round Square Rectangle Seamless Steel Tube
Keyword:
Seamless Steel Tube
Grade:
Q345
Shape:
Square. Rectangular.Round
Surface:
Customers't Requirement
Technique:
Hot Rolled
Alloy Or Not:
Is Alloy
Application:
Structure Pipe
Product Description

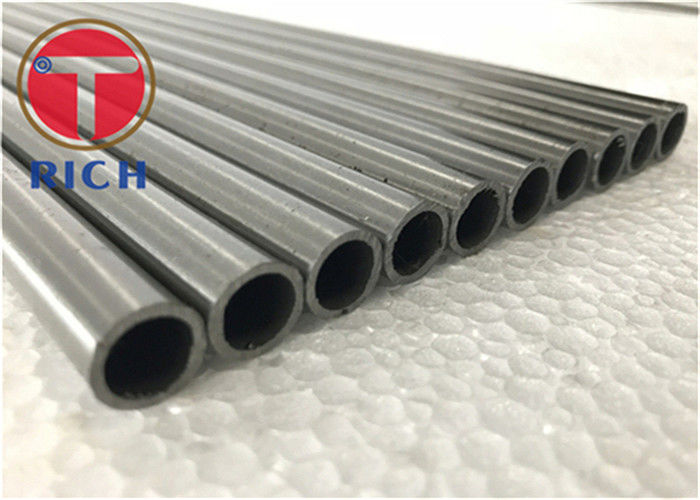

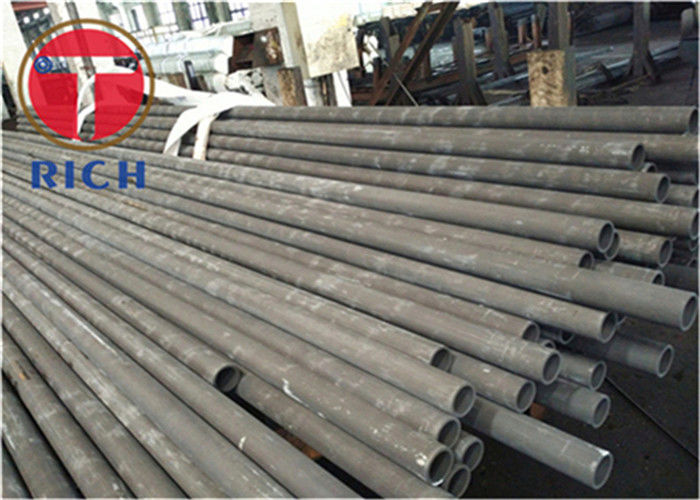

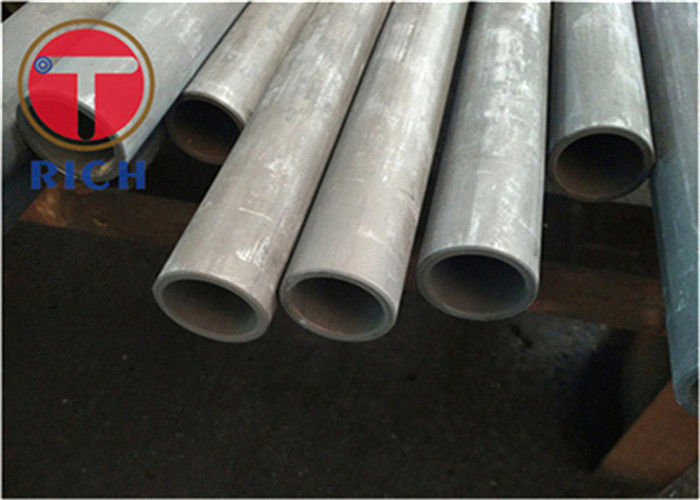

Hot Formed Steel Pipe Q345 Round Square Rectangle Seamless Steel Tube
Material: Q345 A/B/C/D/E
Technology: Seamless hot formed

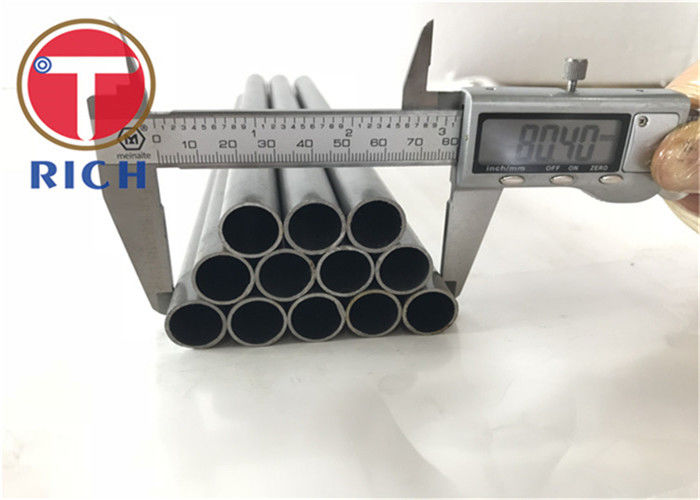

Size Range: O.D.: 5 - 420 mm W.T.: 0.5 - 50 mm Length: Max 12000 mm
Q345 is a low-alloy steel, widely used in bridges, vehicles, ships, buildings, pressure vessels, special equipment, etc. "Q" means yield strength, and 345 means that the yield strength of this steel is 345MPa.
Steel Grade and Chemical Compositon,%
| Steel Grade | C | Si | Mn | P | S | Al | Nb | V | Ti | Cr | Ni | Mo |
| Q345A | ≤0.20 | ≤0.50 | ≤1.70 | ≤0.035 | ≤0.035 | - | ≤0.07 | ≤0.15 | ≤0.20 | ≤0.30 | ≤0.012 | ≤0.10 |
| Q345B | ≤0.20 | ≤0.50 | ≤1.70 | ≤0.035 | ≤0.035 | - | ||||||
| Q345C | ≤0.20 | ≤0.50 | ≤1.70 | ≤0.030 | ≤0.030 | ≥0.015 | ||||||
| Q345D | ≤0.18 | ≤0.50 | ≤1.70 | ≤0.030 | ≤0.025 | ≥0.015 | ||||||
| Q345E | ≤0.18 | ≤0.50 | ≤1.70 | ≤0.025 | ≤0.020 | ≥0.015 |
| Steel Grade | Yield Strength | Tensile Strength | Elongation |
| Q345A | ≥345MPa | 490-675MPa | ≥21% |
| Q345B | ≥345MPa | 490-675MPa | ≥21% |
| Q345C | ≥345MPa | 490-675MPa | ≥22% |
| Q345D | ≥345MPa | 490-675MPa | ≥22% |
| Q345E | ≥345MPa | 490-675MPa | ≥22% |
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free samples?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
