OD380mm EN101305-1 Cold Drawn Steel Tube
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO9001; ISO14001; TSI16949
Model Number:
EN10305-1
Trading Properties
Minimum Order Quantity:
5 Tons
Price:
negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
EN101305-1 seamless cold drawn hexagon shaped steel tube for precision service Products Description: Seamless cold drawn steel tube Application: For Agriculture motor applications, for Agricultural Machines Steel Grade/Steel Material: E215 E235 E355 Size Range: OD 6-380mm WT 1-35mm Length max12000mm ...
Product Details
Highlight:
EN101305-1 cold drawn steel tube
,EN101305-1 cold drawn tube
,OD380mm cold drawn steel tube
Product Name:
EN101305-1 Seamless Cold Drawn Hexagon Shaped Steel Tube
Product Keyword:
Seamless Cold Drawn Steel Tube
Standard:
EN10305-1
Grade:
E215 E235 E355
OD:
6-380mm
WT:
1-35mm
Length:
According To Customers' Requirement
Section Shape:
Hexagon
Alloy Or Not:
Alloy
Secondary Or Not:
Non-Secondary
Application:
For Agriculture Motor Applications, For Agricultural Machines
Type:
Seamless Steel Tube
Product Description
EN101305-1 seamless cold drawn hexagon shaped steel tube for precision service
Products Description: Seamless cold drawn steel tube
Application: For Agriculture motor applications, for Agricultural Machines
Steel Grade/Steel Material: E215 E235 E355
Size Range:
| OD | 6-380mm |
| WT | 1-35mm |
| Length | max12000mm |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Cold-drawn
Chemical Composition:
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery condition | ||||||||||||
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK | |||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |

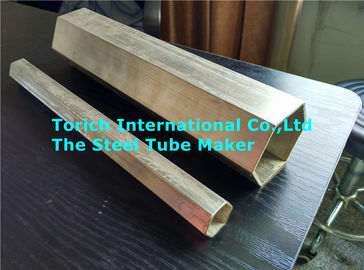

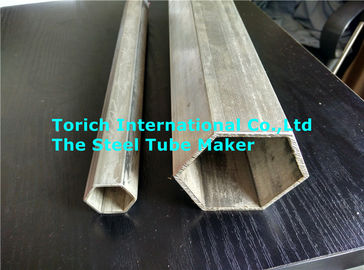

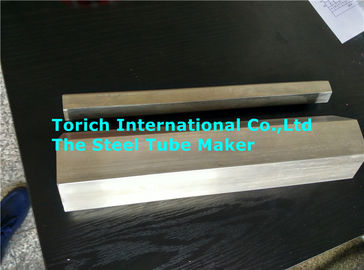

Product Show:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
