ASTM A210 Tubes For Boiler And Superheater
Product Details
ASTM A210 Tubes
,Tubes For Boiler
,Tubes For Superheater
ASTM A210 Seamless Carbon Steam Boiler Tubes for Boiler and Superheater
Applications: For Boilers,Superheaters,Steam linepipes of boilers
Technique: Cold-drawn
Steel Grade/Steel Material: A-1, C
Size range:
| O.D. | 6-168mm |
| W.T. | 1-15mm |
| Length | max 12000mm |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
| Steel Grade and Chemical Compositions: | |||||
| Grade | C | Mn | P | S | Si |
| A-1 | ≤0.27 | ≤0.93 | ≤0.035 | ≤0.035 | ≥0.10 |
| C | ≤0.35 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥0.10 |
Mechanical proporties:
| Grade | Tensil Strength Mpa(ksi) | Yield Point Mpa(ksi) | Elongation |
| A-1 | ≥255(37) | ≥415(60) | ≥30% |
| C | ≥275(40) | ≥485(70) | ≥30% |
| Tolerance for OD and WT(SA-450/SA-450M) | |||||
| OD in(mm) | + | - | WT in(mm) | + | - |
| ＜1''(25.4) | 0.10 | 0.10 | ≤1.1/2''(38.1) | 20% | 0 |
| 1''～1.1''(25.4～38.1) | 0.15 | 0.15 | ＞1.1/2''(38.2) | 22% | 0 |
| ＞1.1/2''～＜2''(38.1～50.8 | 0.20 | 0.20 | |||
| 2''～＜2.1/2''(50.8～63.5) | 0.25 | 0.25 | |||
| 2.1/2''～＜3''(63.5～76.2) | 0.30 | 0.30 | |||
| 3''～＜4''(76.2～101.6) | 0.38 | 0.38 | |||
| 4''～＜7.1/2''(101.6～190.5) | 0.38 | 0.64 | |||
| ＞7.1/2～9''(190.5～228.6) | 0.38 | 1.14 | |||

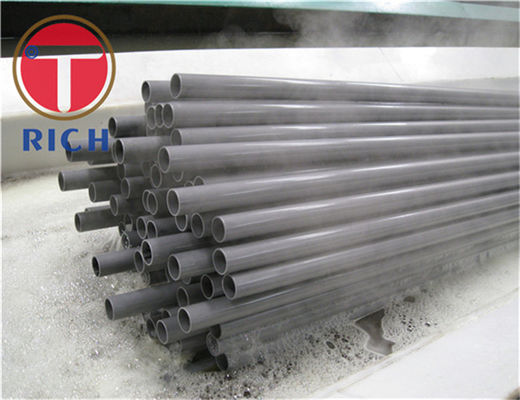

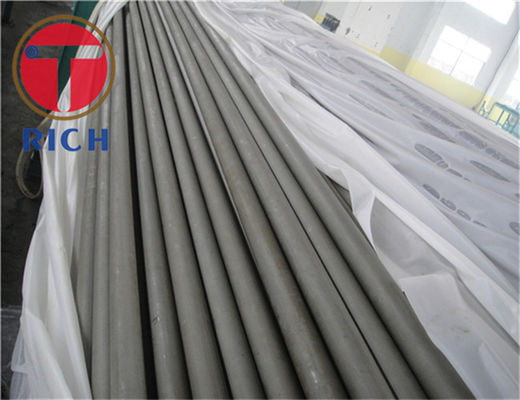

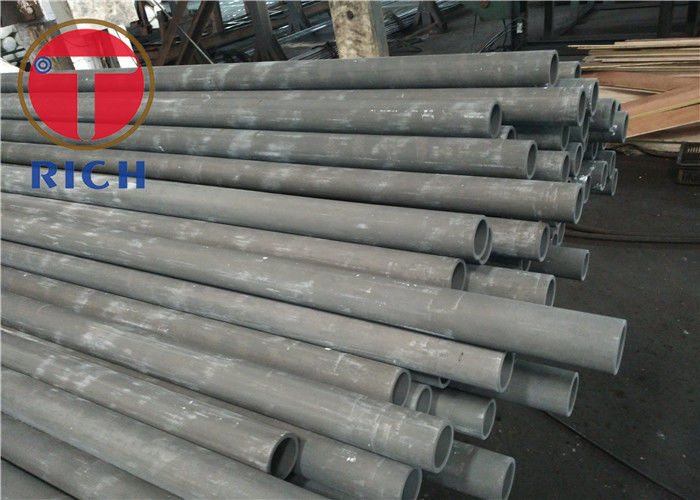

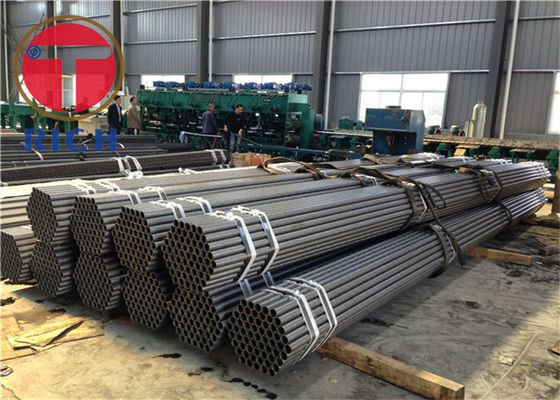

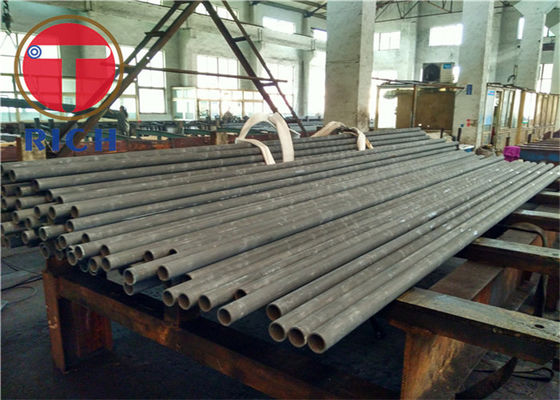

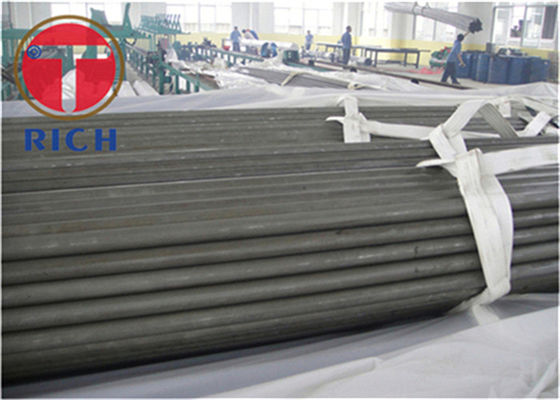

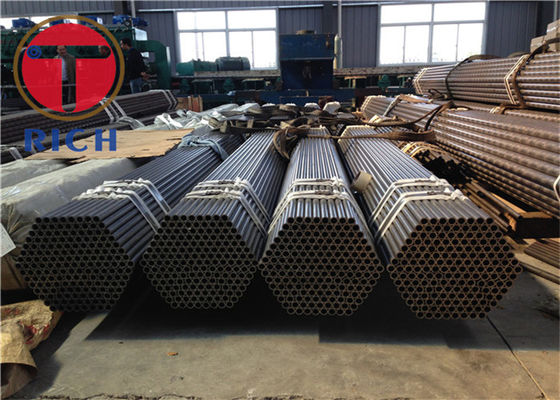

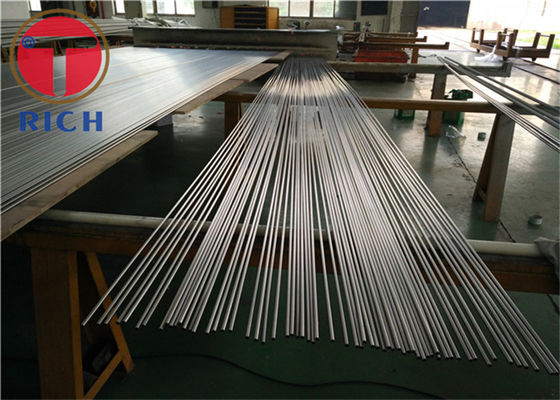

Product Pictures:
Company Introduction:
Packaging and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are a professional steel pipes materials manufacturer.
Q: How long is your delivery time?
A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.
Q: Do you provide free sampleas?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
-
