Alloy 825 Austenitic Nickel-Iron-Chromium Alloy Steel Tubes
Product Details
Austenitic Nickel-Iron-Chromium Alloy Steel Tubes
,Nickel-Iron-Chromium Alloy Steel Tubes
,Alloy 825 Tubes
Alloy 825 Austenitic Nickel-Iron-Chromium Alloy Tubes
Product Description:
Incoloy 825 is an austenitic nickel-iron-chromium alloy with additions of molybdenum, copper and titanium. It was developed to provide exceptional corrosion resistance in both oxidizing and reducing environments. The alloy is resistant to chloride stress-corrosion cracking and pitting. The addition of titanium stabilizes Alloy 825 against sensitization in the as-welded condition making the alloy resistant to intergranular attack after exposure to temperatures in a range that would sensitize unstabilized stainless steels. The fabrication of Alloy 825 is typical of nickel-base alloys, with material being readily formable and weldable by a variety of techniques.
Alloy 825 Coils can be not and cold worked. Tooling and heavy duty machining equipments are used to reduce work-hardening of this alloy. Inconel 825 Plates is used in the petroleum industry for applications such as gas well components, valves and tubing, as well as finding use in high-strength piping systems. Inconel 825 Sheets is also used in various industry applications such as in Oil & Gas, Hangers, Tool Joints, Fasteners, Shafting and more.
Incoloy 825 Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo |
825 Incoloy Plates Chemical Composition
| Grade | Ni | C | Mn | Si | Cr | Fe | Al | Ti | Cu | S | |
| Incoloy 825 | MIN | 38.0 | – | – | – | 19.5 | 22.0 | – | 0.6 | 1.5 | – |
| MAX | 46.0 | 0.05 | 1.0 | 0.5 | 23.5 | – | 0.2 | 1.2 | 3.0 | 0.015 | |
Incoloy 825 Plates Mechanical Physical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa –220 | 30 % |
Typical Applications:
- Oil and gas well equipment
- Hydraulic systems
- Chemical injection lines
- Chemical process equipment and vessels
- Downhole control lines
- Control and instrumentation
- Acid Production
- Nuclear fuel processing

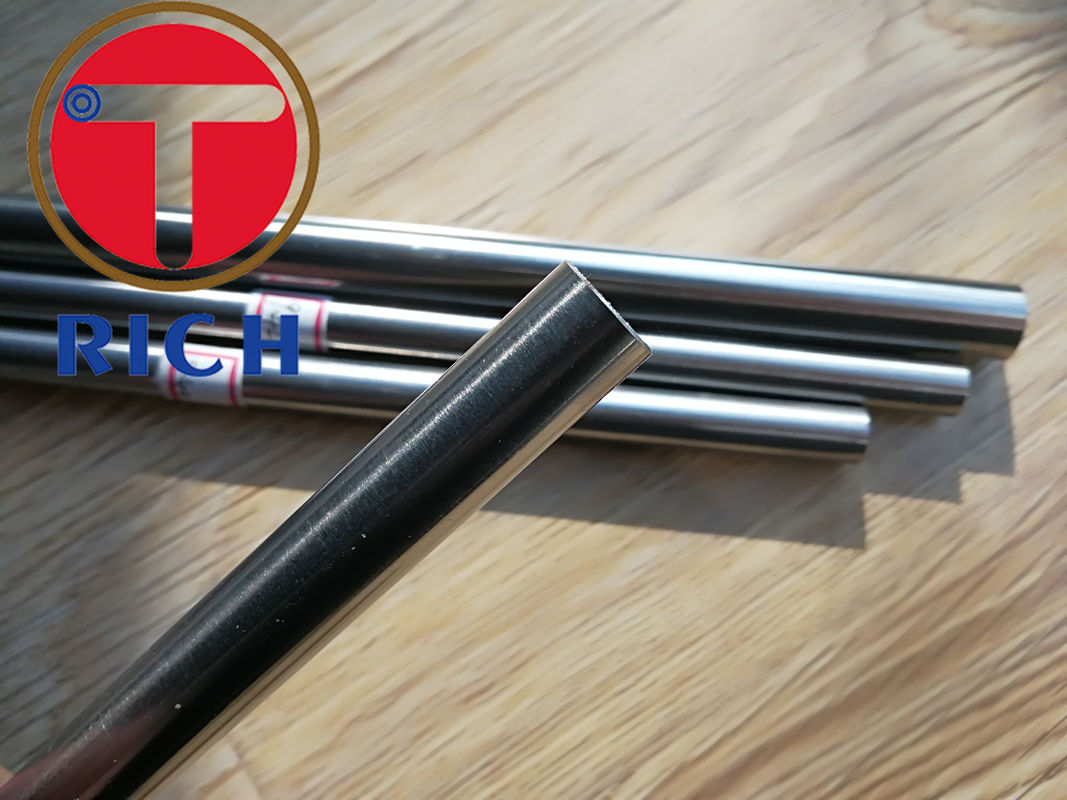

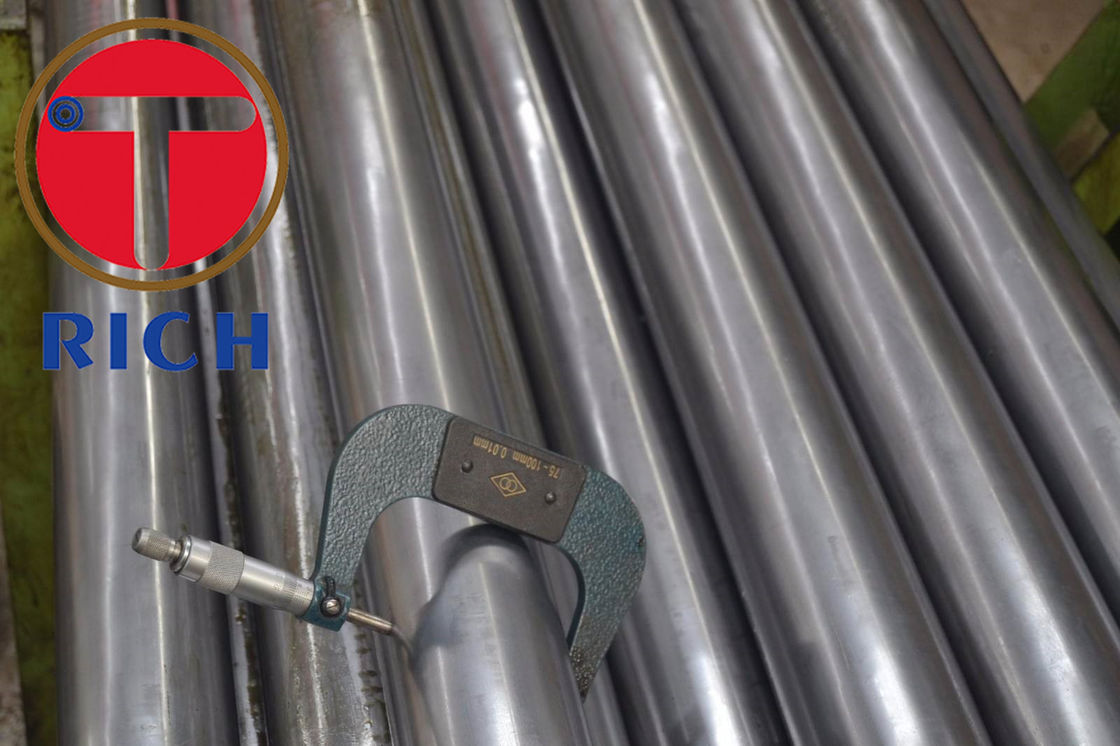

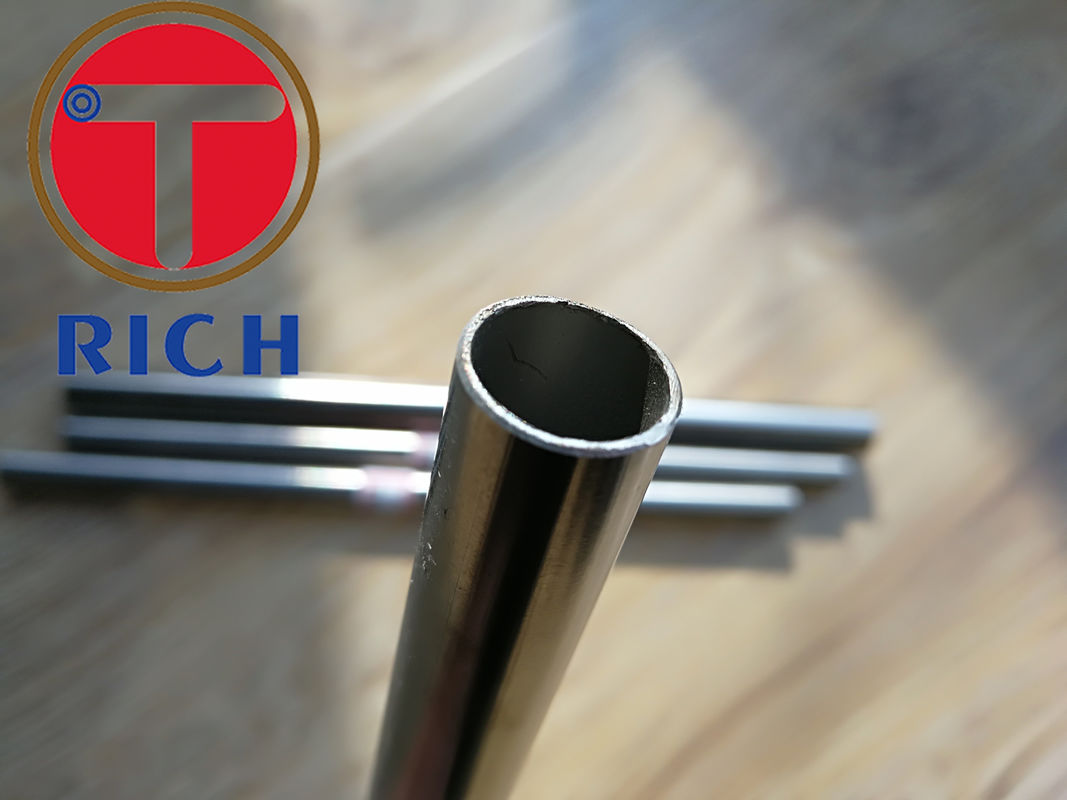

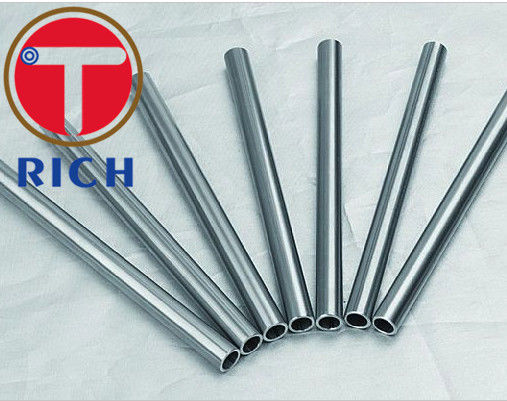

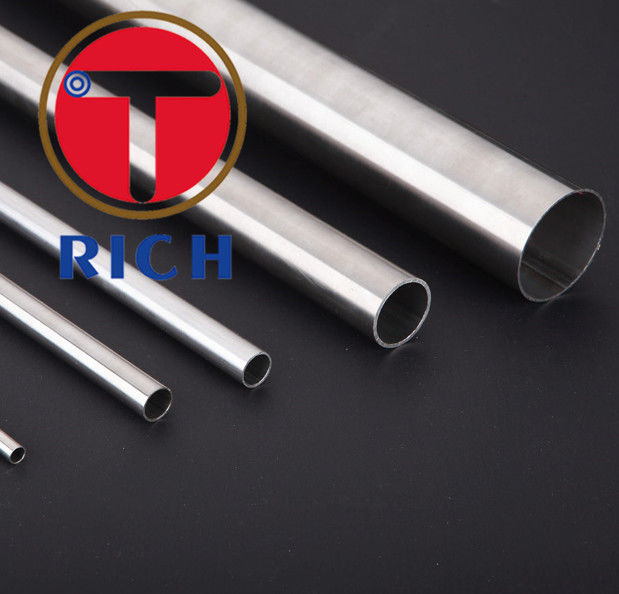

Product Pictures:
