ASME SB444 600 625 Inconel Exhaust Tubing

Basic Information
Place of Origin: ZHEJIANG
Brand Name: TORICH
Certification: ISO 9001
Model Number: ASME SB444
Minimum Order Quantity: 100 Kgs
Price: Negotiable
Packaging Details: Waterproof bag or wooden case
Delivery Time: 3-4 Weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 255 Tons Per Month
Detail Information
Resistance (μΩ.m): 1.15 Ni (Min): 72%
Ultimate Strength (≥ MPa): 650 Model Number: Inconel 625
High Light:

ASME SB444 Inconel Exhaust Tubing

,

ASME SB444 inconel 625 exhaust tubing

,

ASME SB444 inconel 600 pipe


Product Description

ASME SB444 Inconel 600 625 Steel Tube Exhaust Tubing



Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloys(UNS N06625 and UNS N06852)

and Nickel-Chromium-Molybdenum-Silicon Alloy(UNS N06219)Pipe and Tube



Inconel Alloy 600

Inconel Alloy 600 has good resistance to corrosion and high temperature, and has high strength and good fabric-ability.
It resists chloride-ion-incurred stress corrosion cracking, sulfur compounds and oxidizing conditions at high temperatures.
The alloy demonstrates good performance in high temperature nitriding environments.


Inconel 600 with high nickel content, is virtually immune to chloride-induced stress corrosion cracking.

The alloy has superb corrosion resistance to caustic environments.

Inconel Alloy 600 also demonstrates resistance to dry chlorine up to 538°C.

They are available in a wide range of formats including wire, plate, sheet, strip,pipe, fittings, bar, flanges, and so on.



Chemical component



%
Ni
Cr
Fe
C
Mn
Si
S
Cu
min
72.0
14.0
6.0
___
___
___
___
__
max
___
17.0
10.0
0.15
1.00
0.50
0.015
0.50





Form
Standard ASTM
Rod, bar and wire
B 166
Plate, sheet and strip
B 168, B 906
Seamless pipe and tube
B 167, B 829
Welded pipe
B 517, B 775
Welded tube
B 516, B 751
Welding fitting
B 366
Billet and bar for reforging
B 472
Forging
B 564



Other Inconel Grade

Inconel 600 (UNS N06600, DIN W. Nr. 2.4816)
Inconel 601 (UNS N06601, DIN W. Nr. 2.4851)
Inconel 617 (UNS N06617, DIN W. Nr. 2.4663A)
Inconel 625 (UNS N06625, DIN W. Nr. 2.4856)
Inconel 718 (UNS N07718, DIN W. Nr. 2.4668)
Inconel X-750(UNS N07718, DIN W. Nr. 2.4668)



ASTM B444

Referenced ASTM Standard:
E829 Specification for general requirements for Nickel and Nickel alloy seamless pipe and tube.
E112 Test Methods for determining the average grain size.
G28 Test methods for detecting susceptibility to intergranular corrosion in wrought, Nickel-Rich, Chromium-Bearing Alloys.
G48 Test methods for piting and crevice corrosion resistance of stainless steel and related alloys by use of ferric chloride solution.

Keywords: Seamless pipe; seamless tube; N06219; N06625



Applications: Chemical process industry, heat treating fixtures, air-frame components and nuclear reactors.
Density :8.47 g/cm3
Melting range :1354-1413℃

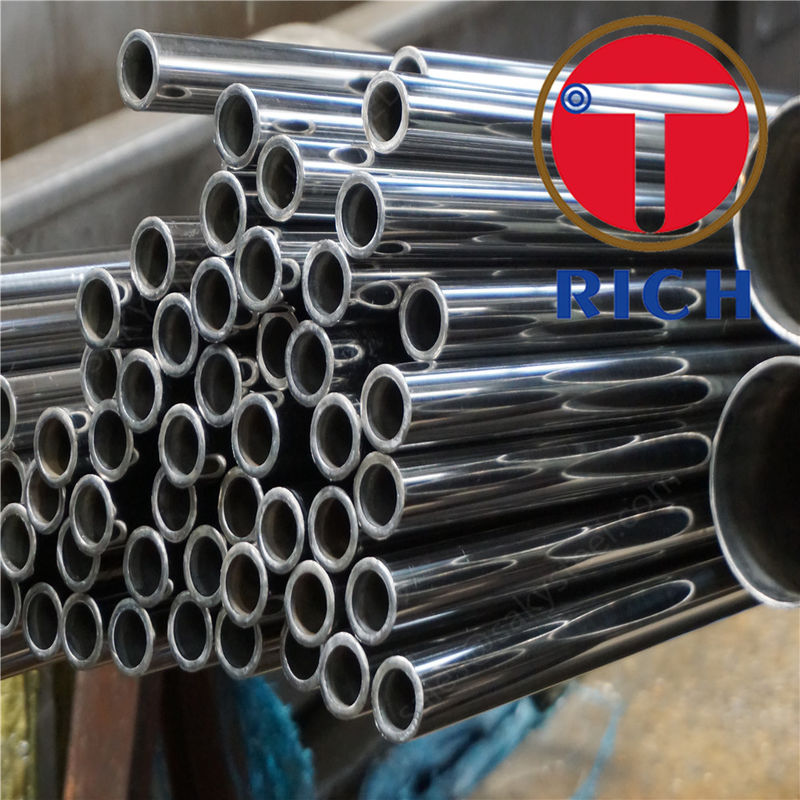

ASME SB444 600 625  Inconel Exhaust Tubing 0

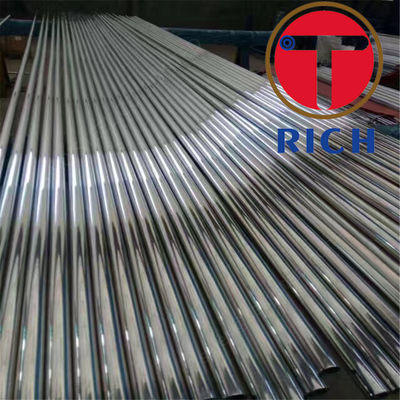

ASME SB444 600 625  Inconel Exhaust Tubing 1

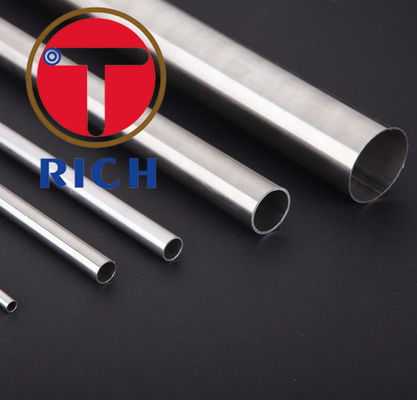

ASME SB444 600 625  Inconel Exhaust Tubing 2

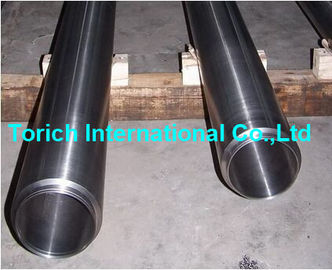

ASME SB444 600 625  Inconel Exhaust Tubing 3
