SUS316L Condenser Medical Food Industry Stainless Seamless Precision Capillary Steel Tubes
Product Details
Medical Seamless Precision Capillary Steel Tubes
,SUS316L Seamless Precision Capillary Steel Tubes
,SUS316L stainless steel capillary tube
SUS316L Condenser Medical and Food Industry Stainless Seamless Precision Capillary Steel Tubes
Applications: For medical industry, food industry, condenser
Technique: Cold-drawn
Steel Grade/Steel Material: U20103 U20203 L03451
Size range:
| O.D. | 0.4-8.0mm |
| W.T. | 0.05-0.9mm |
| Length | According to customer requirement |
Characteristic:
Good concentricity
Good OD and ID tolerance
High Precision
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Chemical Composition:
| Unified digital code | Grade | Chemical Component(Quality Fraction)/% | |||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | ||
| No More Than | |||||||||
| U20103 | 10A | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | 0.030 | 0.030 | 0.15 | 0.30 | 0.20 |
| U20203 | 20A | 0.17~0.23 | 0.17~0.37 | 0.35~0.65 | 0.030 | 0.030 | 0.25 | 0.30 | 0.20 |
| L03451 | Q345A | ≤0.20 | ≤0.55 | 1.00~1.60 | 0.030 | 0.030 | 0.30 | 0.30 | 0.20 |
Mechanical proporties:
| Grade | Strength of extension MPa | Yield Point MPa | Elongation % |
| No more than | |||
| 10A | 335~470 | 205 | 30 |
| 20A | 390~540 | 245 | 25 |
| Q345A | 470~630 | 345 | 22 |

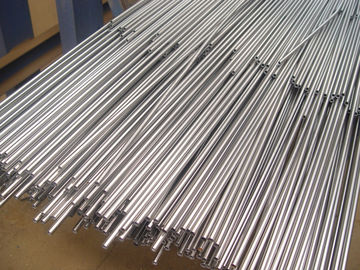

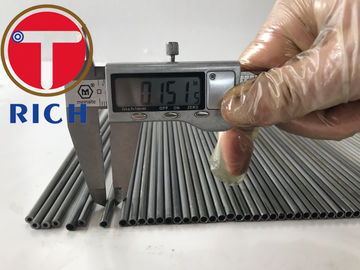

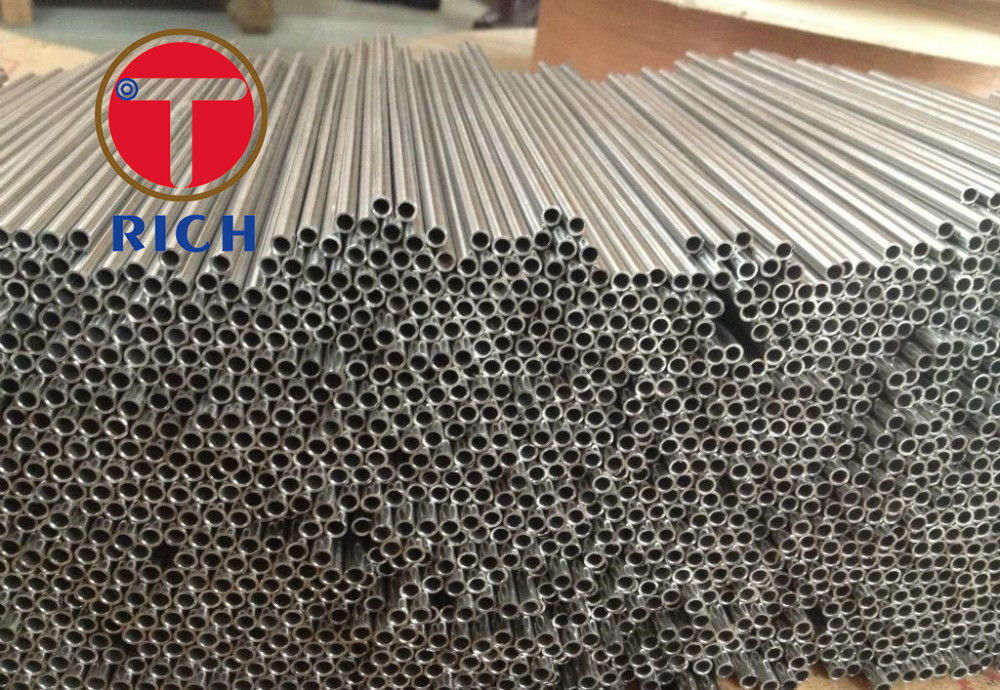

Product Show:
FAQ
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
