ASTM A 513 Electric Resistance Welded Carbon And Alloy Steel Tube
Product Details
Alloy Steel Electric Resistance Welded Tube
,Carbon Electric Resistance Welded Tube
,ASTM A 513 electric resistance welded pipe
ASTM A 513 Electric- Resistance -Welded Carbon and Alloy steel tube
ASTM A513 is a standard specification published by the ASTM standard for cold-formed welded in round, square, and rectangular shapes. It would(could) be used for a rack, fence, furniture, ornamental fencing & decorative handrail, etc.. ASTM A513 defines based primarily on mechanical property. Our tubing is used CR or PO material for A513.
Deliver condition:
1. A.W.H.R. "as welded" from hot-rolled steel
2. A.W.C.R. "as welded" from cold-rolled steel
3. S.D.C.R. "sink-drawn", cold-rolled steel
5. M.D. mandrel drawn
6. S.S.I.D. special smooth inside diameter
Please specify the delivery condition when sending the enquiry!
Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized
Applications:
For Machinery, Mechanical Engineer, Automotive Parts,Agricultural.
Grade and Chemical Composition(%) of ASTM A513:
| Grade | C | Mn | P(max) | S(max) | Si | Cr | Mo |
| ASTM A513 1010 | 0.08-0.13 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| ASTM A513 1020 | 0.17-0.23 | 0.30-0.60 | 0.035 | 0.035 | - | - | - |
| ASTM A513 1026 | 0.22-0.28 | 0.60-0.90 | 0.035 | 0.035 | - | - | - |
| ASTM A513 4130 | 0.28-0.33 | 0.40-0.60 | 0.035 | 0.04 | - | - | - |
Mechanical Properties of ASTM A513:
| Grade | Tensil strength(Mpa) ≥ | Yield strength(Mpa) ≥ | Elongation% ≥ | RB, ≥ |
| ASTM A513 1010 | 379 | 310 | 12 | 68 |
| ASTM A513 1020 | 448 | 379 | 10 | 75 |
| ASTM A513 1026 | 517 | 448 | 10 | 80 |
| ASTM A513 4130 | 621 | 552 | 10 | 87 |
Keywords
Alloy steel tube; Carbon steel tube; mechanical tubing; resistance welded steel tube; steel tube; welded steel tube

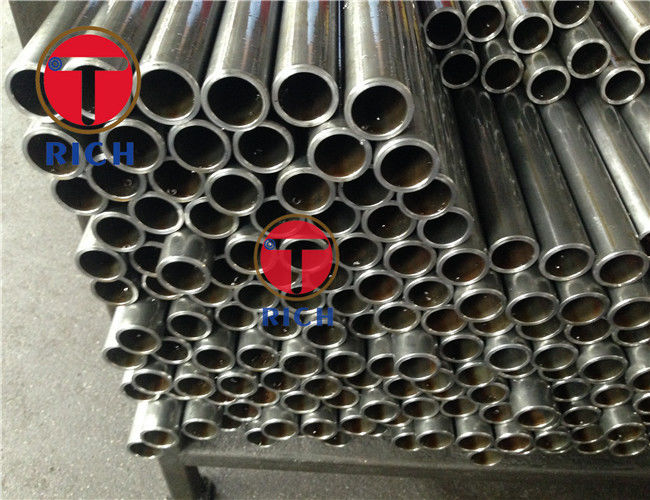

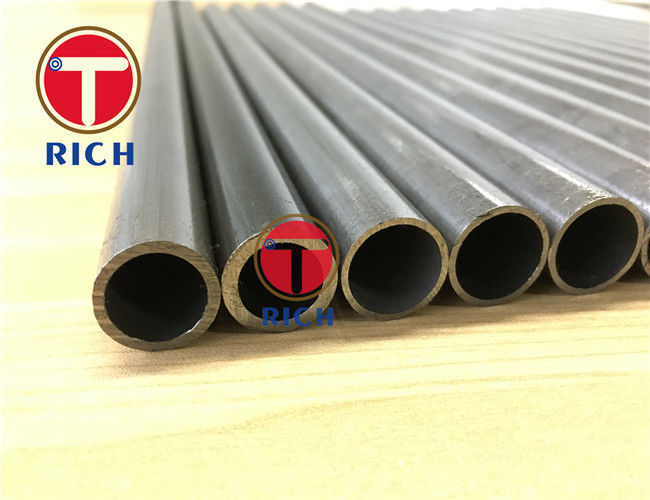

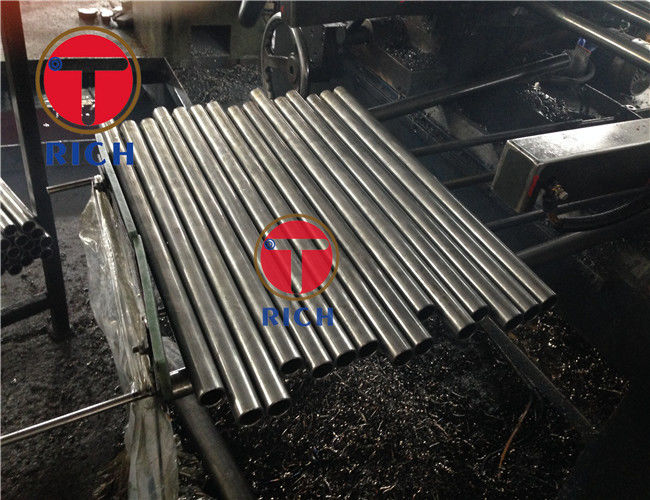

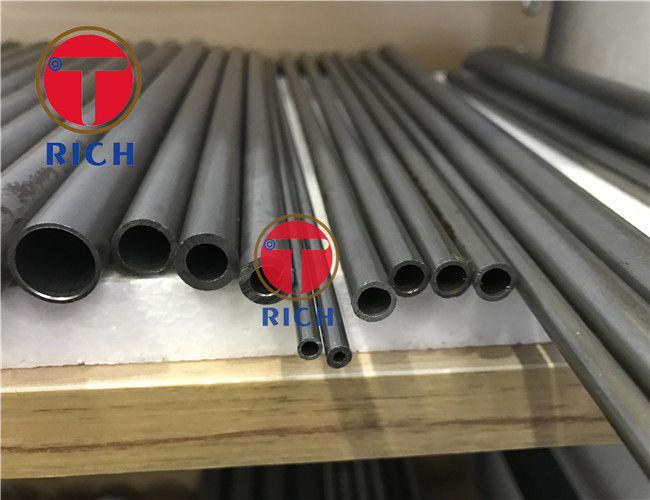

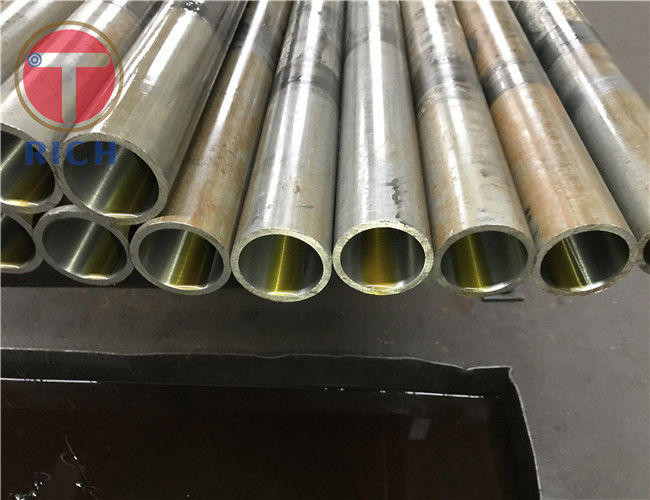

Product Pictures
Package and Delivery:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold drawn ERW DOM tubes ASTM A513 1010 1020 1026 for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
