Heat Treatment 12000mm EN10216-2 Steel Hydraulic Tubing
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO
Model Number:
EN10216-2
Trading Properties
Minimum Order Quantity:
1 Tons
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
60000 Tons/Year
Product Summary
EN10216-2 Seamless Non-Alloy and Alloy Steel Tubes for Pressure Purposes with Specified Elevated Temperature Properties Product Description: Applications EN10216-2 non-alloy and alloy seamless steel pipe is mainly used as boiler water tube, smoke tube, superheater tube, air preheater tube, etc. It ...
Product Details
Highlight:
EN10216-2 Steel Hydraulic Tubing
,12000mm Steel Hydraulic Tubing
,60Mpa Seamless Steel Tube
Standard:
EN10216-2
O.D.:
10.2 Mm To 711 Mm
W.T:
1.6 Mm To 100 Mm
Length Max:
12000mm
Advantages:
Heat Treatment
Process Method:
Cold Drawn/Hot Rolled
Surface Finish:
Varnish/Coating/Paint
Brand:
TORICH
Product Description
EN10216-2 Seamless Non-Alloy and Alloy Steel Tubes for Pressure Purposes with Specified Elevated Temperature Properties
Product Description:
Applications EN10216-2 non-alloy and alloy seamless steel pipe is mainly used as boiler water tube, smoke tube, superheater tube, air preheater tube, etc. It is also utilized to produce pipeline, container, equipment, pipe fittings, and such.
Chemical composition:
| Steel grade | C | Si | Mn | P | S | Cr b | Mo b | Ni b | Al tot | Cu b c | Nb b | Cr+Cu +Mo+Ni | |
| Steel name | Steel number | max. | max. | max. | Max. | max. | max. | max. | max. | min. | max. | max. | max. b |
| P195TR1 | 1.0107 | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | - | 0,30 | 0,010 | 0,70 |
| P195TR2 | 1.0108 | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | 0,02 d | 0,30 | 0,010 | 0,70 |
| P235TR1 | 1.0254 | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | - | 0,30 | 0,010 | 0,70 |
| P235TR2 | 1.0255 | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | 0,02 d | 0,30 | 0,010 | 0,70 |
| P265TR1 | 1.0258 | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | - | 0,30 | 0,010 | 0,70 |
| P265TR2 | 1.0259 | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,30 | 0,08 | 0,30 | 0,02 d | 0,30 | 0,010 | 0,70 |
Mechanical property:
| Steel grade | Tensile properties | Impact properties | ||||||||
| Steel name | Steel number | Upper yield strength ReH b min. for Wall Thickness T mm | Tensile Strength Rm | Elongation A min. % b c | Minimum average absorbed energy KV J at a temperature of °C c | |||||
| T =16 | 16 < T =40 | 40 < T =60 | l | t | ||||||
| Mpa | Mpa | Mpa | Mpa | l | t | 0 | -10 | 0 | ||
| P195TR1 e | 1.0107 | 195 | 185 | 175 | 320 to 440 | 27 | 25 | - | - | - |
| P195TR2 | 1.0108 | 195 | 185 | 175 | 320 to 440 | 27 | 25 | 40 | 28 d | 27 |
| P235TR1 e | 1.0254 | 235 | 225 | 215 | 360 to 500 | 25 | 23 | - | - | - |
| P235TR2 | 1.0255 | 235 | 225 | 215 | 360 to 500 | 25 | 23 | 40 | 28 d | 27 |
| P265TR1 e | 1.0258 | 265 | 255 | 245 | 410 to 570 | 21 | 19 | - | - | - |
| P265TR2 | 1.0259 | 265 | 255 | 245 | 410 to 570 | 21 | 19 | 40 | 28 d | 27 |
EN 10216 Seamless steel tubes for pressure purposes:
- EN 10216-1 Non-alloy steel tubes with specified room temperature properties
- EN 10216-2 Non alloy and alloy steel tubes with specified elevated temperature properties
- EN 10216-3 Alloy fine grain steel tubes
- EN 10216-4 Non-alloy and alloy steel tubes with specified low temperature properties
- EN 10216-5 Stainless steel tubes

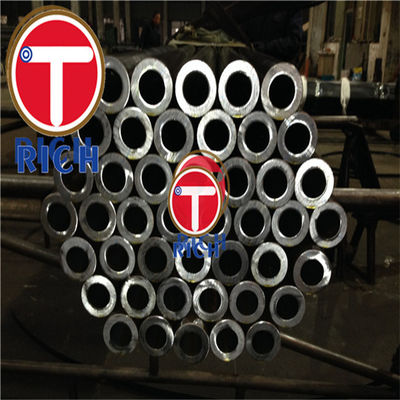

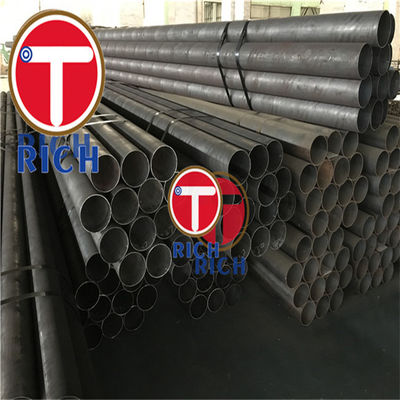

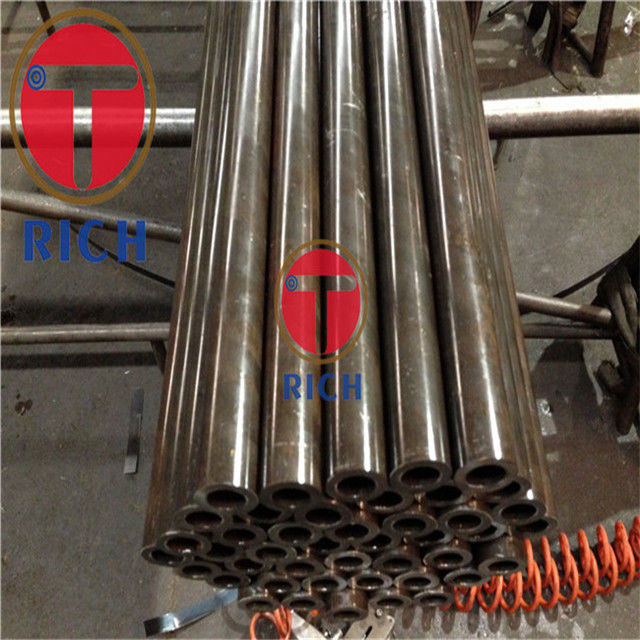

Product Pictures:
Package and Delivery:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
EN10216-2 Seamless Non-Alloy and Alloy Steel Tubes for Pressure Purposes with Specified Elevated Temperature Properties
