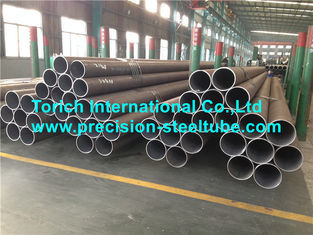

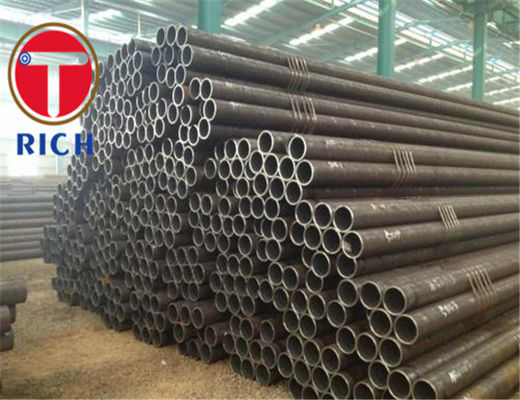

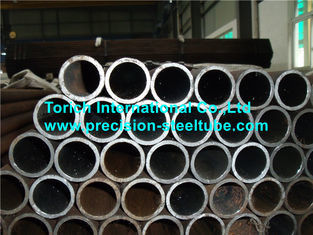

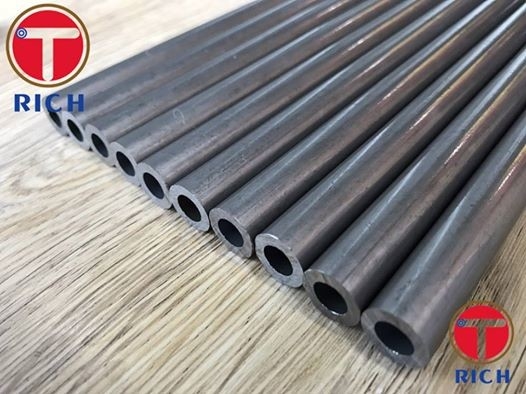

Φ 42X18 Φ33.0X7.0mm AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Product Details
AISI 1045 Precision Ground Tubing
,400mm Precision Ground Tubing
,ASTM A519 Precision Ground Shafting
42X18 AISI 1045 Cold-Drawn Precision Ground Shafting Seamless Steel Tube
Torich is a profesional Producer for precision ground shafting,material is hard high carbon steel
1045,1020 .1010 etc ,widly use in Machining
Torich can produce precision metal tubing as per below standard and material:
|
andard & Material | Carbon Steel | ASTM A519 Standard | MT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518 | |
| JIS G3445 Standard | STKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B STKM14C STKM15A STKM15C STKM16A STKM16C STKM17A STKM17C STKM18A STKM18B STKM18C STKM19A STKM19C STKM20A | |||
| JIS G3473 Standard | STC370, STC440, STC510A, STC510, STC540, STC590A, STC590B | |||
| DIN 2391 Standard | St 35, St45, St52 | |||
| EN 10297-1 Standard | E235, E275, E315, E355, E470 | |||
| EN 10305-1 Standard | E215, E235, E355 | |||
| EN 10305-4 Standard | E215, E235, E355 | |||
| BS 6323-3 Standard | HFS 3, HFS 4, HFS 5, HFS 8 | |||
| NF A49-311 | TU 37-b, TU 52-b, TU 56-b, TU XC35 | |||
| Alloy Steel | ASTM A519 Standard | 1345, 3140, 4130, 4135, 4140, 4150, 4320, 4340, 5120, 5130 | ||
| JIS G3429 Standard | STH11, 12 STH21, 122 STH31 | |||
| JIS G3441 Standard | SCR420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM440TK | |||
|
Size | Size Range | Tolerance | ||
| OD | 10-80mm | -0.035 -- +0.045mm | ||
| ID | 5-74mm | ±0.035mm | ||
| WT | 1-14mm | depends on sizes | ||
| Length | random or fixed length | +0-3.5mm | ||
| Straightness | 0.15:1000, 0.4:1000, 0.5:1000 1:1000 or customized | |||
| Surface Roughness | Ra 0.02—0.4μm | |||
1045 material also called as 45 Steel in China ,Called S45C in Japan.1045 in America,Germany name is 1.1192.
It is used to make small-section quenched and tempered parts with large load and large-scale normalized parts with
small stress,as well as surface-hardened parts that do not require high core strength, such as pins, guide posts,
watch hands
and other components.
Heat treatment
Recommended heat treatment temperature: normalizing 850℃, quenching 840℃, tempering 600℃.
1045 steel is carbon structural steel, with low hardness and easy machining. It is often used in molds as templates,
stubs, guide posts, etc.,
but requires heat treatment.
1045 steel is qualified if its hardness is greater than HRC55 (up to HRC62) after quenching and before tempering.
The practical high hardness is HRC55 (induction quenching HRC58).
Tester:
Tensile testing machine, Rockwell hardness tester, eddy current flaw detection, chemical composition detector, magnetic
particle flaw detector, metallographic analysis instrument, surface roughness measuring instrument, outer micrometer,
inner diameter white dial indicator, vernier caliper
-
