Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Basic Properties
Place of Origin:
ZHEJIANG,CHINA
Brand Name:
TORICH
Certification:
ISO14001:2008,TS16949
Model Number:
ASTM A312
Trading Properties
Minimum Order Quantity:
5 Tons
Payment Terms:
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability:
60000 Tons/Year
Product Summary
ASTM A312 Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipes Product Description: The standard specifications include seamless, straight seam welded and heavily cold welded austenitic stainless steel tubing for high temperature and general corrosive service. There are several ...
Product Details
Highlight:
ASTM A312 Stainless Welded Pipe
,WT 60mm Stainless Welded Pipe
,609.6mm Austenitic Stainless Steel Pipes
Model Number:
ASTM A312
Delivery State:
Hot Rolled, Cold Drawn
Application:
Liquid, Water, Gas, Oil, Boiler Project, Etc.
Surface:
Bright Annealed, Pickled, Blasted Or Passivated.
OD:
10.3mm-609.6mm
WT:
0.2mm-60mm
Length:
5-12m Or As You Required
Brand:
TORICH
Product Description
ASTM A312 Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipes
Product Description:
The standard specifications include seamless, straight seam welded and heavily cold welded austenitic stainless steel tubing for high temperature and general corrosive service. There are several grades in this standard, and each steel grade shall confirm to the required chemical composition of C, Mn, P, S, Si, Cr and Cr, Ni, Mo, etc. All the pipes shall be furnished in the heat-treated condition in accordance with the required heat treating temperature and cooling/testing requirements. And also need to comply to the required tensile strength and yield strength.
Chemical Composition:
| Steel Grade | ASTM A312 Chemical Composition % Max | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | … | … | … . | … |
| TP304H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | … | … | … | … |
| TP304L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-13.0 | … | … | … | … |
| TP310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 24.0-26.0 | 19.0-22.0 | 0.75 | |||
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP316L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | … | … | … |
| TP316H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 11.0-14.0 | 2.00-3.00 | … | … | … |
| TP316Ti | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 0.10 | … | 5x(C+N)-0.70 |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | … | 0.10 | … | 5C-0.70 |
| TP321H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | … | … | … | 4C-0.60 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-13.0 | 10xC-1.00 | … | ||
| TP347H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-13.0 | … | … | 8xC-1.00 | … |
Mechanical Property:
| Grade | UNS | Tensile Strength Min, Ksi [MPa] | Yield Strength Min, Ksi [MPa] |
|---|---|---|---|
| TP304 | S30400 | 75 [515] | 30 [205] |
| TP304L | S30403 | 70 [485] | 25 [170] |
| TP304H | S30409 | 75 [515] | 30 [205] |
| TP304N | S30451 | 80 [550] | 35 [240] |
| TP304LN | S30453 | 75 [515] | 30 [205] |
| TP309S | S30908 | 75 [515] | 30 [205] |
| TP310S | S31008 | 75 [515] | 30 [205] |
| TP316 | S31600 | 75 [515] | 30 [205] |
| TP316L | S31603 | 70 [485] | 25 [170] |
| TP316H | S31609 | 75 [515] | 30 [205] |
| TP316N | S31651 | 80 [550] | 35 [240] |
| TP316LN | S31653 | 75 [515] | 30 [205] |
| TP317 | S31700 | 75 [515] | 30 [205] |
| TP317L | S31703 | 75 [515] | 30 [205] |
Equivalent Steel Grade:
| ASTM A312 | JIS G3459 | DIN 17440 | BS | NF |
|---|---|---|---|---|
| TP304 | SUS 304 TP | X5CrNi 18 9 | 304S18 | A 49-230 |
| TP304H | SUS 304 HTP | 304S59 | A 49-214 | |
| TP310 | 304 LTP | X2 CrNi 19 9 | 304S14 | A 49-230 |
| TP316 | SUS 304L TP | |||
| TP316H | 310STP | X5 CrNiMo 18 10 | 316S18 | A 35-573 |
| TP316L | SUS 316 TP | 316S59 | A 49-230 | |
| TP321 | SUS 316 LTP | X2 CrNiMo 18 10 | 316S14 | A 49-230 |
| TP347 | 316 HTP | x10 CrNiTi 18 9 | 321S18 | A 49-230 |
| TP347H | SUS 316 LTP | X5 CrNiNb 18 9 | 347S18 | A 35-573 |
Key Words:
Welded Pipes And Tubes
Austenitic Stainless Steel
Corrosive Service Applications Forming
Seamless Welded Tubes
Heavily Cold Worked Steel Tubes

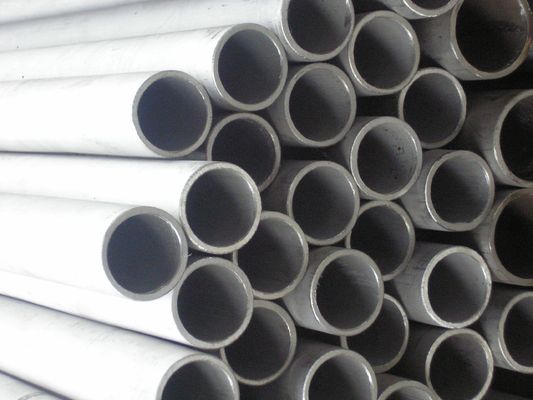

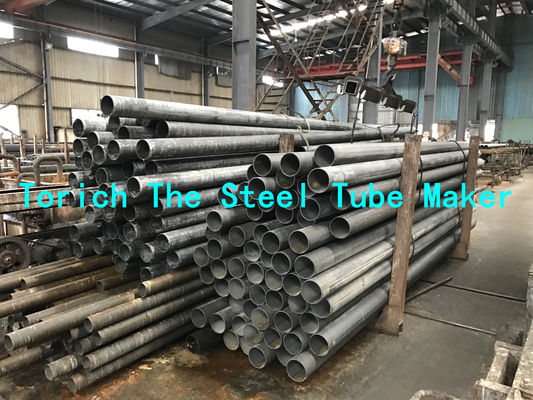

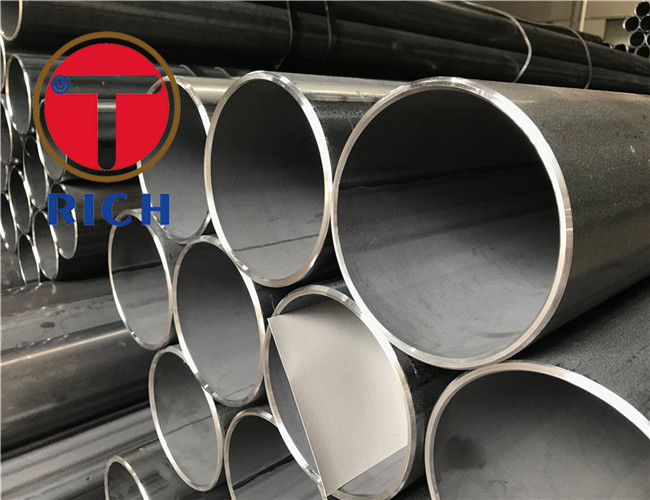

Product Pictures:
Packing and Delivery :
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
