100Cr6 GCr15 Seamless Alloy Steel Tube
Product Details
GCr15 Carbon Steel Tube
,OD 260mm Carbon Steel Tube
,12m Precision Steel Tube
100Cr6 GCr15 Seamless Alloy Steel Tube
Delivery Condition: +C, +LC, +SR, +A, +N
Size Range:
OD: 10-260mm
WT: 2-30mm
Length: 2-12m

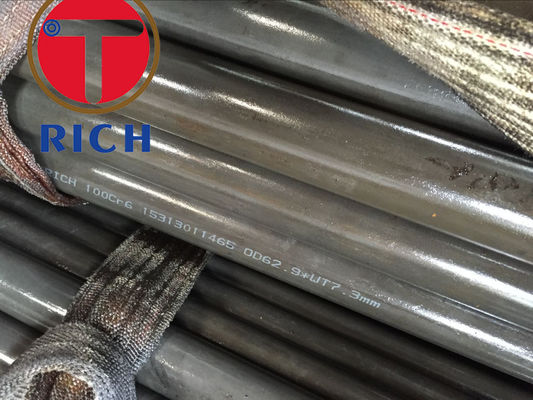

Our regular size: 29.4x5.6mm, 36.9x7.73mm, 62.9x7.3mm etc
Bearing Steel Tube Characteristic:
High strength
High-precision
Good Surface Quality
Stable quality
Smooth Roughness
TORICH QUALITY ASSURANCE
Production Processs:
Seamless Cold Drawn or Seamless Cold Rolled + Heat Treatment
Steel Grade/Steel Material:
| Steel Grade | mass fraction % | ||||||
| C | Si | Mn | P | S | Cr | Mo | |
| GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | ≤0.027 | ≤0.020 | 1.30-1.65 | ≤0.10 |
| 100Cr6 | 0.93-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.35-1.60 | ≤0.10 |
| 100CrMnSi6-4 | 0.93-1.05 | 0.45-0.75 | 1.00-1.20 | ≤0.025 | ≤0.015 | 1.40-1.65 | ≤0.10 |
| 100CrMnSi6-6 | 0.93-1.05 | 0.45-0.75 | 1.40-1.70 | ≤0.025 | ≤0.015 | 1.40-1.65 | ≤0.10 |
| 100CrMo7 | 0.93-1.05 | 0.15-0.45 | 0.25-0.45 | ≤0.025 | ≤0.015 | 1.65-1.95 | 0.15-0.30 |
Relevant Steel Specification of 100Cr6 Bearing Steel
| Country | USA | German | Japan | British |
| Standard | ASTM A295 | DIN 17230 | JIS G4805 | BS 970 |
| Grades | 52100 | 100Cr6/1.3505 | SUJ2 | 535A99/EN31 |
Mechanical Properties of DIN 100Cr6 Bearing Steel
| Properties | Metric | Imperial |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Hardness, Brinell | – | – |
| Hardness, Knoop (converted from Rockwell C hardness) | 875 | 875 |
| Hardness, Rockwell C (quenched in oil from 150°C tempered) | 62 | 62 |
| Hardness, Rockwell C (quenched in water from 150°C tempered) | 64 | 64 |
| Hardness, Rockwell C (quenched in oil) | 64 | 64 |
| Hardness, Rockwell C (quenched in water) | 66 | 66 |
| Hardness, Vickers (converted from Rockwell C hardness) | 848 | 848 |
| Machinability (spheroidized annealed and cold drawn. Based on 100 machinability for AISI 1212 steel) | 40 | 40 |
100Cr6 Steel Physical Properties
| Properties | Metric | Imperial |
| Density | 7.81 g/cm3 | 0.282 lb/in³ |
| Melting point | 1424°C | 2595°F |
DIN 100Cr6 Alloy Steel Thermal Properties
| Properties | Metric | Imperial |
| Thermal expansion co-efficient (@ 23-280°C/73.4- 36°F, annealed) | 11.9 µm/m°C | 6.61 µin/in°F |
| Thermal conductivity (typical steel) | 46.6 W/mK | 323 BTU in/hr.ft².°F |
Forging of DIN 100Cr6 Bearing Steel
DIN 100Cr6 alloy steel is forged at 927 to 1205°C, and should not be forged below 925ºC. A post-forge equalization treatment is recommended at 745ºC for 4-6 hours followed by air cooling for SAE/AISI 52100 steel.
Heat Treatment for DIN 100Cr6 Bearing Steel
DIN 100Cr6 alloy bearing steel is heated at 816°C followed by quenching in oil. Before performing this process, it is subjected to normalizing heat treatment at 872°C followed by slowly cooling in order to reduce the machining stress.

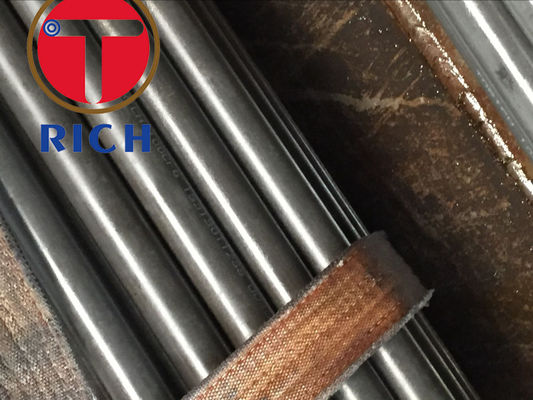

Production Steel Tube 100Cr6:
Application
FAQ
Q1: Are you trading company or Manufactuer ? A: Of course, we are manufactuer. We are in field of honed tube and piston rod for more than 16 years.
Q2: What is the payment term? Do you accept LC ? A: Normally payment is by T/T, 30% advance payment, balance pay after receiving the copy BL. L/C is accepted. Also we provide Trade Assurance online which will protect the interests of both sides.The payment will be hold by authorized Third Party until you receive the goods under the Trade Assurance Policy.
Q3: What is your delivery time? A: normally, it is 25~60 days after you confirm the order. If your order is urgent, we would like to try our best to meet your requirements.

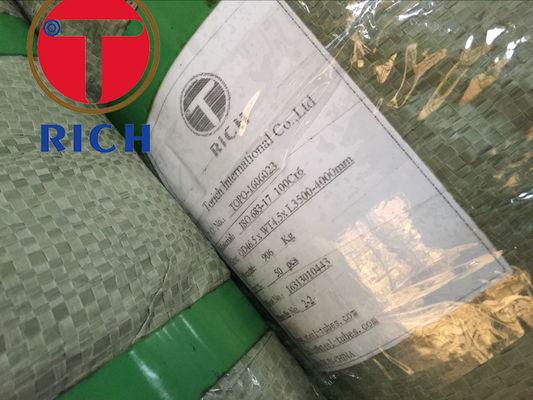

Q4: What is the package? A: The package is seaworthy wooden case by container, or accoding to your requirements.
Q5: Can I add my logo on the goods? A: Yes, OEM and ODM are available for us.
Q6: Do you have inspection procedures before sending goods? A: 100% inspection before packing and Third Party Inspection Service is available if customer apply for it.
Q7: Can I visit your factory before the order? A: Please, we are finding long-term partners, welcome to visit our factory. We will pick you up at the airport.
