ERW Precision Steel Tubes for Automotive

ERW Precision Steel Tubes for Automotive

MOQ: 5 tons
Price: 888 USD PER TON
Standard Packaging: packing in standard marine package
Delivery Period: 25-40 days
Payment Method: T/T, L/C, D/A, D/P, Western Union,
Supply Capacity: 50000 tons per year
Detail Information
Place of Origin
Zhejiang,China
Brand Name
TORICH
Certification
ISO9001,ISO14001,TS16949
Model Number
ASTM A513/SAE J525/EN10305/DIN2393
Product Name:
ERW Precision Steel Tubes For Automotive
Keyword:
ERW Precision Steel Tubes
Usage:
For Automotive Shock Absorber,engine Application
Shape:
Round
Technique:
ERW(electric Resistance Welded)
Material:
1010,1020,1045,4130,4140
OD:
5-420mm
WT:
0.5-50mm
Length:
Max12000mm
Package:
Standard Marine Package
Highlight:

ERW Precision Steel Tube

,

WT 50mm Precision Steel Tube

,

ASTM A513 Seamless Hydraulic Tubing

Product Description

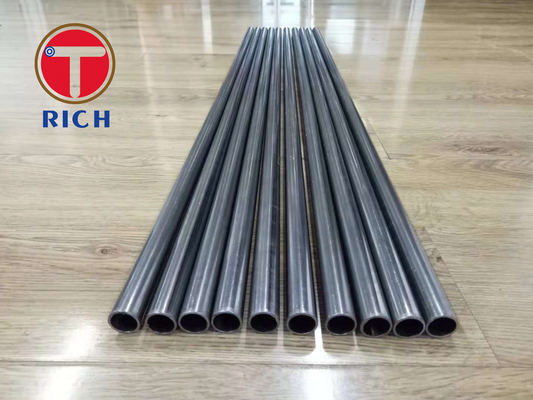

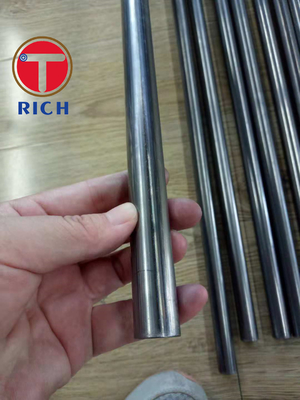

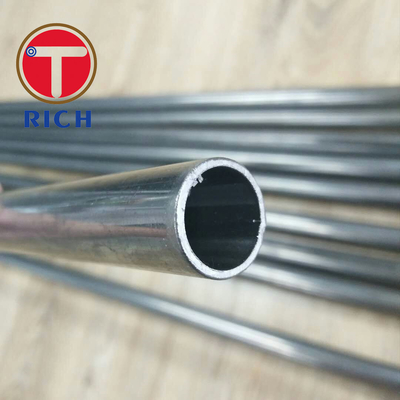

ERW Precision Steel Tubes for Automotive



TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience.
Our main products are seamless precision steel tubes,ERW precision steel tubes. The material we usually use for producing ERW Precision Steel Tubes for Automotive is Q195,Q235,Q345,ST37,ST44,ST52,ETC.



Steel Grade:
SAE1010, SAE1020, SPCC,SPHC,other materials upon agreement with customers.


Production method:
Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance


Size range:
O.D.:6-350mm     W.T.:1-15mm      L:max12000mm


Packing:
In Hexagonal Bundles, with anti corrosion oil protection, with seaworthy packing


Deliver condition:

1. A.W.H.R.    "as welded" from hot-rolled steel
2. A.W.C.R.      "as welded" from cold-rolled steel
3. S.D.C.R.       "sink-drawn", cold-rolled steel
5. M.D.              mandrel drawn
6. S.S.I.D.          special smooth inside diameter

Please specify the delivery condition when sending the enquiry!


Thermal condition:
1. No final thermal treatment
2. Stress relieved
3. Annealed
4. Normalized


                                       Steel Grade and Chemical Compositions:
Steel  Grade C Mn P S Si Cr Mo
max   max max max min
1008 0.10  0.5 0.035  0.035
1010 0.08-0.13 0.30-0.60 0.035  0.035
1018 0.14-0.20 0.30-0.60 0.035  0.035
1020 0.17-0.23 0.30-0.60 0.035  0.035
1026 0.22-0.28 0.60-0.90 0.035  0.035
1035 0.31-0.38 0.60-0.90 0.035  0.035
4130 0.28-0.33 0.40-0.60 0.035  0.035  0.15-0.35 0.80-1.10 0.08-0.25
4140 0.38-0.43 0.75-1.00 0.035  0.035  0.15-0.35 0.80-1.10 0.15-0.25

ERW Precision Steel Tubes for AutomotiveERW Precision Steel Tubes for Automotive

ERW Precision Steel TubesERW Precision Steel Tubes

ERW Precision Steel Tubes for AutomotiveERW Precision Steel Tubes for AutomotiveERW Precision Steel Tubes for AutomotiveERW Precision Steel Tubes for AutomotiveERW Precision Steel Tubes for AutomotiveERW Precision Steel Tubes for Automotive


FAQ
Q: Are you trading company or manufacturer ?
A: We are professional steel tube manufacture since 1997
Q: What certificates do you have ?
A: IATF16949,ISO9001,SGS
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need pay the cost of freight.
