Welding Plain Ends ASTM A53 ERW Carbon Steel Tubes
Product Details
ERW Carbon Steel Tubes
,ASTM A53 Carbon Steel Tubes
,660mm Cold Drawn Steel Tube
ASTM A53 ERW Carbon Steel Tubes
Product Description:
ASTM A53 pipe covers Seamless and Welded, Black and Hot-Dipped Galvanized nominal (average) wall pipe for coiling, bending, flanging and other special purposes and is suitable for welding. Continuous-Welded pipe is not intended for flanging. Purpose for which pipe is intended should be stated on order.
Size Range:
| Out diameter | 26.7~660mm |
| Wall Thickness | 0.5-20mm |
| Length | as requirement |
Chemical Properties %
| Grade | C, max | Mn, max | P, max | S, max | Cu*, max | Ni*, max | Cr*, max | Mo*, max | V*, max | |
| Type S (Seamless) | A | 0.25 | 0.95 | 0.05 | 0.05 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| B | 0.30 | 1.20 | 0.05 | 0.05 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 | |
| Type E (Electric-resistance Welded) | A | 0.25 | 0.95 | 0.05 | 0.05 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| B | 0.30 | 1.20 | 0.05 | 0.05 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 | |
| Type F (Furnace-welded) | A | 0.30 | 1.20 | 0.05 | 0.05 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
Mechanical Properties
| Grade A | Grade B | |
| Tensile Strength, min., psi, (MPa) | 48,000 (330) | 60,000 (415) |
| Yield Strength, min., psi, (MPa) | 30,000 (205) |
35,000 (240) |
ASTM A53 Grade A & Garde B may be furnished bare or coated and with capped ends. pipes up to 3” OD will be supplied in bundles. In order to prevent rust during sea shipment, bundles of Pipe may be wrapped with polypropylene sheets, and secured with flat steel bands. Over 3” OD will be supplied loose.
ASTM A53 Grade A & Garde B Application Industries:
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry

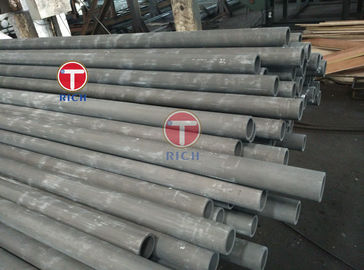

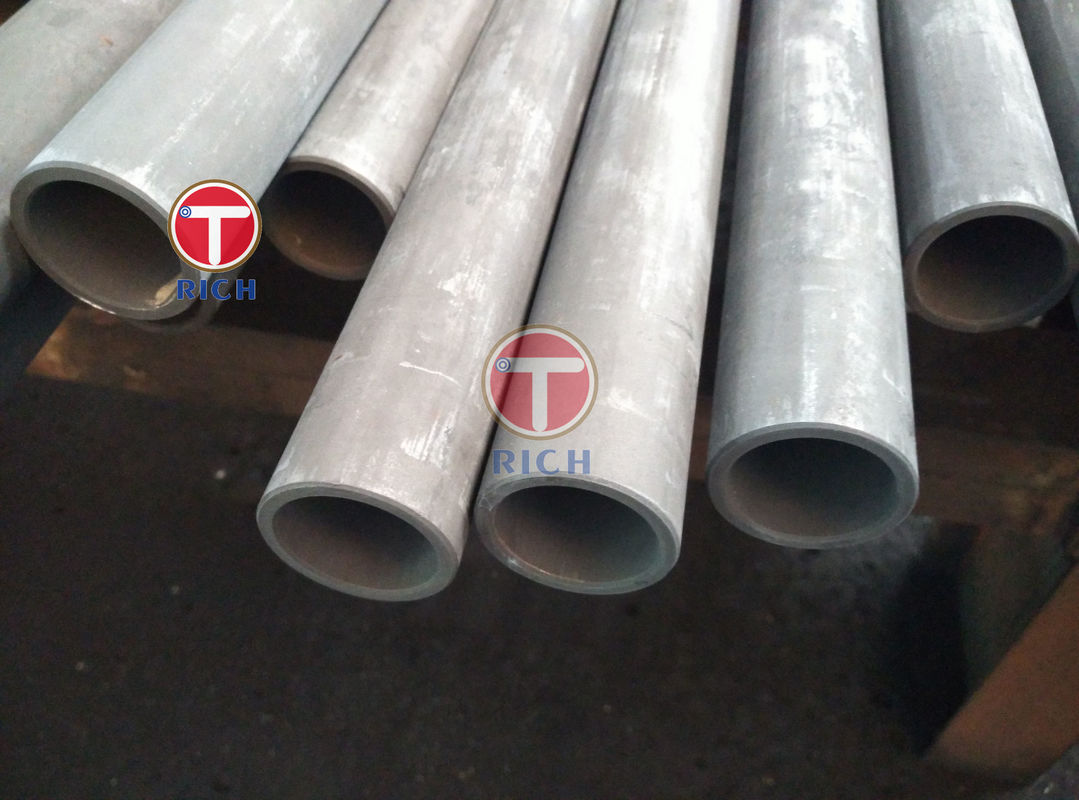

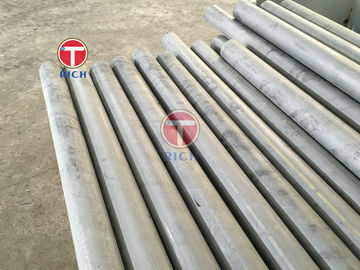

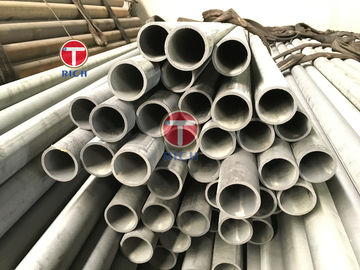

Product Pictures:
Packing and Delivery :
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
