DIN2391 ST 37.4 nbk Boiler Tube
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO
Model Number:
DIN2391
Trading Properties
Minimum Order Quantity:
5 Tons
Payment Terms:
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:
3000 Ton/Tons per Month can adjust
Product Summary
DIN2391 ST 37.4 nbk Boiler Tube Specification Offered For DIN 2391 st37.4 fuel injection steel tube Standard: DIN 2391 Steel grade: ST35, ST37, ST37.4, ST45, ST52, ST52.4 Size: OD (4-190mm) x WT (0.5-15mm) Delivery condition: NBK(+N), GBK(+A), BK(+C), BKW(+LC), BKS(+SR). Application: Used in ...
Product Details
Highlight:
DIN2391 Seamless Mechanical Tubing
,ST52 Seamless Mechanical Tubing
,20mm Seamless Steel Tube
Model Number:
DIN 2391
Grade:
ST35-ST52, St52, St37, St35.8, ST45
Application:
Hydraulic Pipe
Alloy Or No:
Non-alloy
Technique:
Cold Rolled
Surface Treatment:
Black/Bright
Thickness:
0.5-20mm
Section Shape:
Round
Material:
ST37/ST52/CK45/AISI4140
Special Pipe:
Other
Product Description
DIN2391 ST 37.4 nbk Boiler Tube
Specification Offered For DIN 2391 st37.4 fuel injection steel tube
- Standard: DIN 2391
- Steel grade: ST35, ST37, ST37.4, ST45, ST52, ST52.4
- Size: OD (4-190mm) x WT (0.5-15mm)
- Delivery condition: NBK(+N), GBK(+A), BK(+C), BKW(+LC), BKS(+SR).
- Application: Used in hydraulic system, automobile, locomotive and military industry.
Chemical Composition
| Grade | Chemical Composition(%): | ||||
| C max | Si max | Mn | P max | S max | |
| St 35 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| St 45 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| St 52 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
| Steel grade | Chemical Composition(%): | ||||||
| Steel name | Steel number | C max | Si max | Mn | P max | S max | Al min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Mechanical Properties(Mpa):
| Steel grade | BK | BKW | BKS | GBK | NBK | |||||||
| RmN/mm min | min | RmN/mm min | min | N/mm min | ReH N/mm min | min | N/mm min | min | N/mm min | ReH N/mm min | min | |
| St35 | 480 | 6 | 420 | 10 | 420 | 315 | 14 | 315 | 25 | 340-470 | 235 | 25 |
| St45 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440-570 | 235 | 21 |
| St52 | 640 | 4 | 580 | 7 | 580 | 420 | 10 | 490 | 22 | 490-630 | 355 | 22 |
| Steel grade | Minimum values for the delivery condition | ||||||||||||
| Steel name | Steelnumber | + C | + LC | + SR | + A | + N | |||||||
| Rm Mpa | A% | Rm Mpa | A% | Rm Mpa | ReH Mpa | A% | ReH Mpa | A% | Rm Mpa | ReH Mpa | A% | ||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Application :
- Pneumatic cylinder
- Hydraulic cylinder
- Precise machine pipes
- Agriculture machine Boiler construction

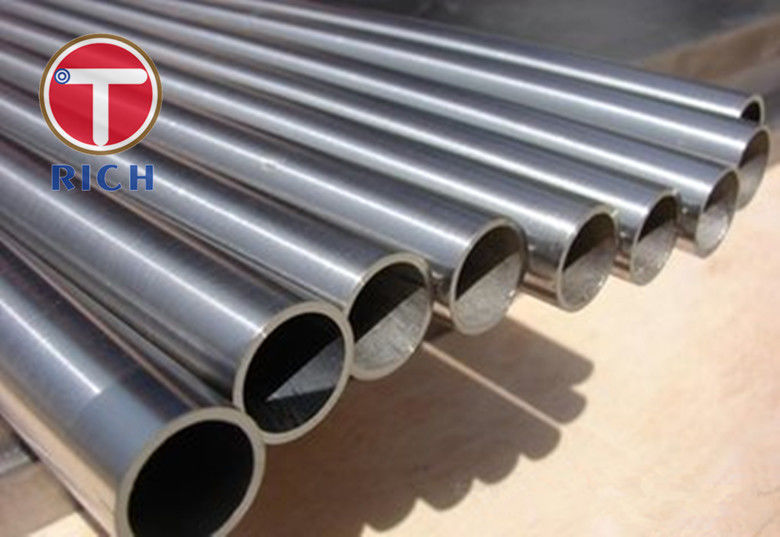

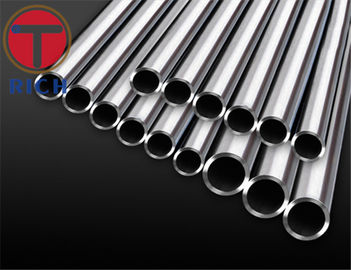

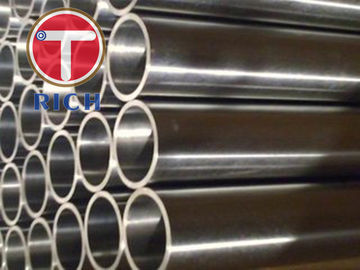

Product Pictures:
Packing and Delivery:
FAQ:
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
