Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube

Basic Properties
Place of Origin: ZHEJIANG
Brand Name: TORICH
Certification: ISO
Model Number: 30 - 250 mm
Trading Properties
Minimum Order Quantity: 1 Ton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Tons Per Year
Product Summary
Cold Drawn Precision Round Carbon Steel Tube Mechanics performance: Material Tensile strength Yield strength Elongation Hardness CK20/20#/AISI1020 >520 N/ mm2 >375 N/mm2 >15% >85HB CK45/45#/AISI1045 >600 N/ mm2 >520 N/ mm2 >15% >85HB ST52/16Mn/Q345D >600 N/ mm2 >520 N/ mm2 >15% >85HB 25Mn/STKM 13C-T ...

Product Details

Highlight:

OD 250mm Carbon Steel Tube

,

Q345 Carbon Steel Tube

,

Cold Drawn Steel Hydraulic Tubing

Thickness: 2 - 30mm
Outer Diameter: 30 - 250 Mm
Application: Hydraulic Pipe
Grade: 10#-45#, 16mn, Q195-Q345, ST35-ST52
Alloy Or Not: Non-alloy
Surface: Customers't Requirement
Product Description



Cold Drawn Precision Round Carbon Steel Tube





Mechanics performance:
Material Tensile strength Yield strength Elongation Hardness
CK20/20#/AISI1020 >520 N/ mm2 >375 N/mm2 >15% >85HB
CK45/45#/AISI1045 >600 N/ mm2 >520 N/ mm2 >15% >85HB
ST52/16Mn/Q345D >600 N/ mm2 >520 N/ mm2 >15% >85HB
25Mn/STKM 13C-T >600 N/ mm2 >530 N/ mm2 >15% >85HB





Variety :
Processing Cylinder
Diameter
Straightness Size
Accuracy
W.T/mm Inner Bore Roughess
Cold drawn/cold rolled ID30-250 0.3 H9-H11 ±10% 0.4~1.6um
Honed tube ID50-250 0.3 H7-H9 ±10% <0.4um





Condition Material Grade T.S (MPa) lowest Y.S (MPa) lowest Elongation (%)
BKS ST35 (10#) ≥420 ≥315 ≥14
BKS ST45(20#) ≥520 ≥375 ≥12
BKS ST52(16Mn) ≥580 ≥420 ≥10
GBK ST35 (10#) ≥315   ≥35
GBK ST45(20#) ≥390   ≥32
GBK ST52(16Mn) ≥490   ≥30
NBK ST35 (10#) 340-470 ≥235 ≥32
NBK ST45(20#) 440-570 ≥255 ≥30
NBK ST52(16Mn) 490-630 ≥335 ≥28

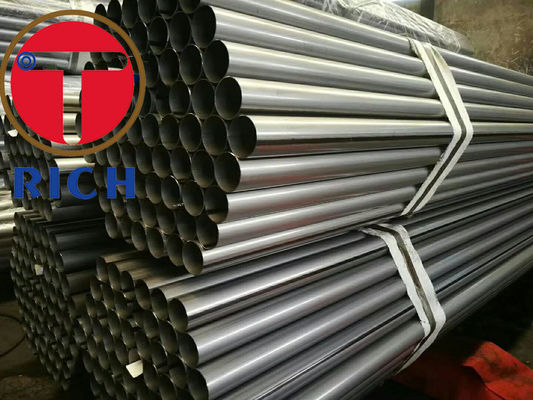

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube 0

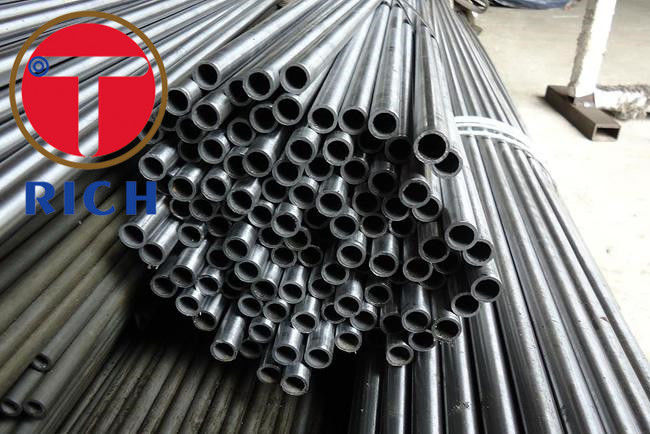

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube 1

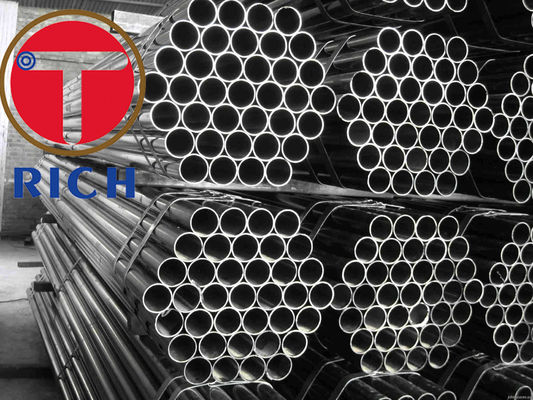

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube 2



1.Transportation: By Sea

20' FCL (means the length than 5,800mm)
40' FCL (means the length than 11,800mm)
2.Bulk cargo (means the quantity is more than 200MT)
3.With regards to other length or quantity, it should be taken by clients themselves
4.Delivery time: 25-35days to the dispatch port after receipt of T/T or L/C at sight.
5.Optional: wooden box; caps; vanished coating.
6.Payment: T/T or L/C at sight, T/T 100% in advance (If order less than 3MT)
7.Price item: FOB, CFR, CNF, C&F, CIF
8.Origin: China
9.Third party inspection: BV, SGS, Lloyds. The Expense needs to stand by clients.





1.Are you a trading company or manufacturer?

We are the professional manufacturer of precision seamless steel pipe since the year 1992.



2. How can I get the price?

We usually quote within 24 hours after we get your inquiry by telling us the material, out diameter,

wall thickness length, quantity and application of the steel pipe which you need.

If you are very urgent to get the price.

please inform us in email so that we will regard your inquiry priority.



3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. we will provide you

the sample for free, however we could only make sure the same material, the dimension will be

much similar as your request but not same.

And customer should afford the charge of shipment.



4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

if normal order 25-30days.



5. What is your terms of delivery?
We accept FOB CIF EXW CFR.
