Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering
Basic Properties
Place of Origin:
ZHEJIANG, CHINA
Brand Name:
TORICH
Certification:
ISO9001, ISO14001, TS16949
Model Number:
ASTM A519
Trading Properties
Minimum Order Quantity:
2 Tons
Price:
Negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
6000 Tons per Year
Product Summary
Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering TORICH is able to manufacture 4130 4140 precision seamless tubes accordingto ASTM A519, which covers both seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing The tubes can ...
Product Details
Highlight:
ASTM A519 Precision Steel Tube
,WT 50mm Precision Steel Tube
,Anti Rust Hydraulic Steel Tubing
Product Name:
Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering
Keyword:
Precision Steel Tube
Material:
1045 4130 4140
WT:
1mm~50mm
OD:
6mm~350mm
Tolerance:
+/-0.1mm
Surface:
Anti Rust Oil
Application:
For Auto Parts, Machinery Parts
Product Description
Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering
TORICH is able to manufacture 4130 4140 precision seamless tubes accordingto ASTM A519, which covers both
seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing The tubes can be furnished
in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.
| Standard | ASTM A519 |
| Key Word | Seamless High Precision Steel Tube |
| Material | 1045 4130 4140 etc |
| Size | OD: 6-350mm; WT: 1-50mm; Length: max12000mm |
| Manufacture | Seamless Cold Drawn And Cold Rolling |
| Application | For Machinery, Mechanical Engineering |
| Test | Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test |
Chemical Requirements
| Steel grade | C max | Mn | P max | S max | Si max | Cr max | Mo |
| 1045 | 0.45-0.50 | 0.60-0.90 | 0.04 | 0.05 | | | |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.04 | 0.04 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.04 | 0.04 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
Mechanical Properties
| Steel Grade | Tensile Strength, min | Yield Strength, min | Enlongation %, min | Rockwell Hardness B Scale |
| 1045 HR | 75 ksi 517Mpa | 45ksi 310Mpa | 15% | 80 |
| 1045CW | 90ksi 621Mpa | 80ksi 552Mpa | 5% | 90 |
| 1045SR | 80ksi 552Mpa | 70ksi 483Mpa | 8% | 85 |
| 1045A | 65ksi 448Mpa | 35ksi 241Mpa | 20% | 72 |
| 1045N | 75ksi 517Mpa | 48ksi 331Mpa | 15% | 80 |
| 4130 HR | 90ksi 621Mpa | 70ksi 483Mpa | 20% | 92 |
| 4130 SR | 105ksi 724Mpa | 85ksi 586Mpa | 10% | 95 |
| 4130A | 75ksi 517Mpa | 55ksi 379Mpa | 30% | 81 |
| 4130N | 90ksi 621Mpa | 60ksi 414Mpa | 20% | 89 |
| 4140 HR | 120ksi 855Mpa | 90ksi 310Mpa | 15% | 100 |
| 4140 SR | 120ksi 855Mpa | 100ksi 689Mpa | 10% | 100 |
| 4140 A | 80ksi 552Mpa | 60ksi 414Mpa | 25% | 85 |
| 4140 N | 120ksi 855Mpa | 90ksi 621Mpa | 20% | 100 |

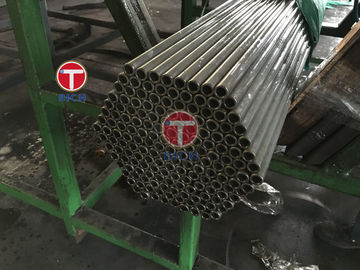

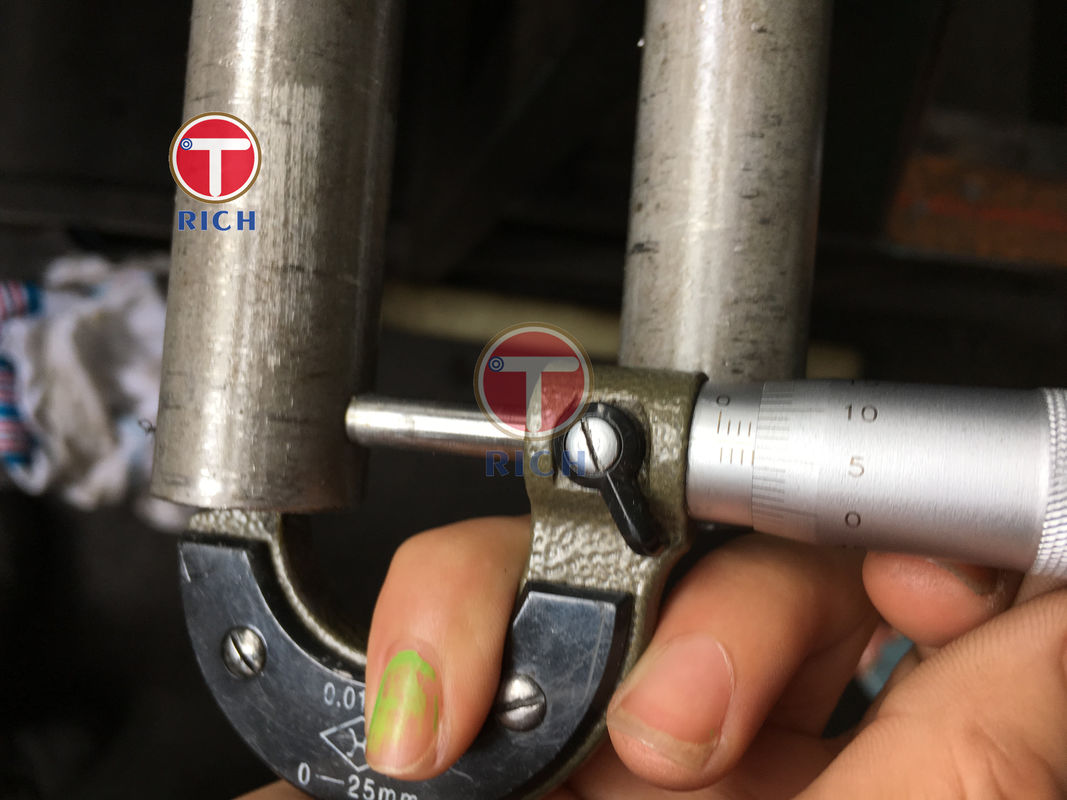

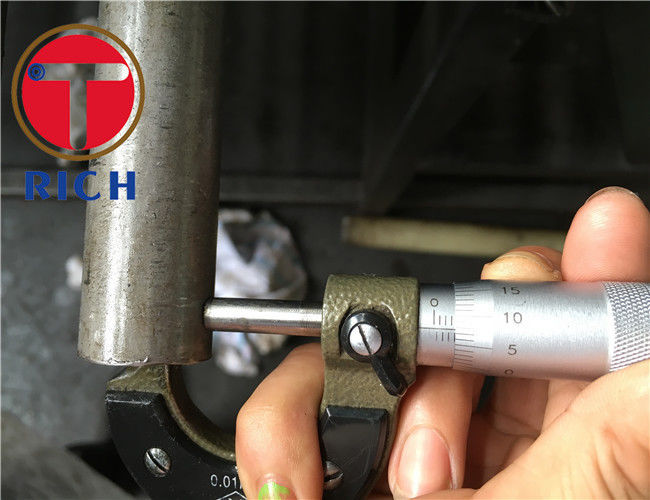

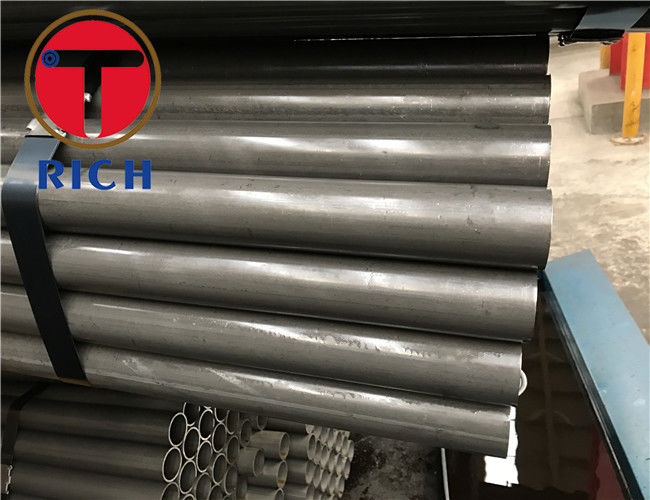

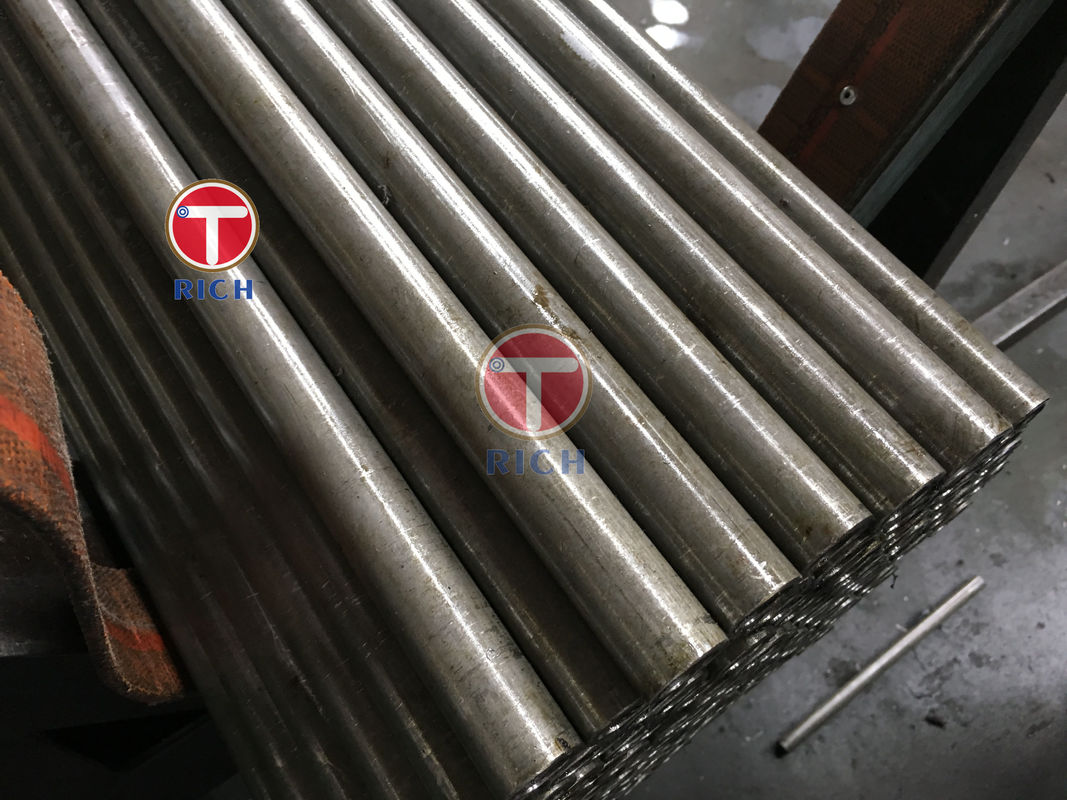

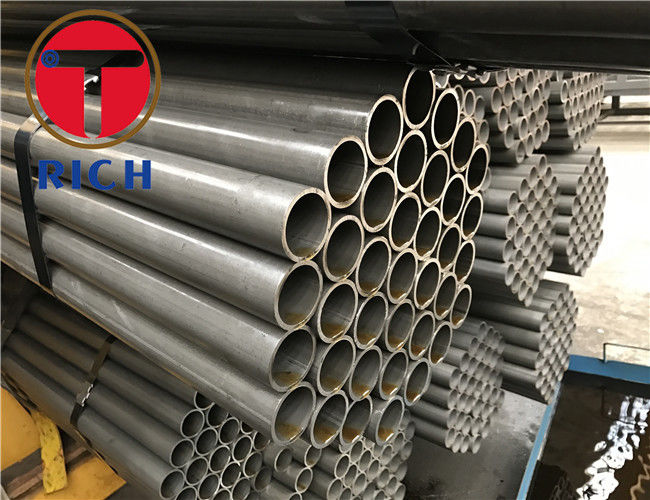

Product Show of High Precision Steel Tubes
Manufacturing Process
Packing & Delivery
Packing Details : In bundles or in wooden boxes packaging
Delivery Details : 30-60days
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
