Automotive 10*0.7 ERW SAE J527 PVF Coating Bundy Tube

Name: Automotive 10*0.7 ERW SAE J527 PVF Coating Bundy Tube
Brand: TORICH INTERNATIONAL LIMITED
SKU: SAE J527
Price: 28,750.50 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	SAE J527
MOQ:	10 TONS
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	50000 ton per year

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China

Certification:

ISO9001,ISO14001

Product Name:

10*0.7 PVF Bundy Tube Automotive Steel Tubes

Keyword:

Bundy Tube

Material:

SAE J527

Usage:

Automotive Brake System

Shape:

Round

Technique:

ERW

Surface:

PVF Coating

Length:

Max12000mm

OD:

0.28-10mm

WT:

0.08-1mm

Packaging Details:

10*0.7 PVF Bundy Tube Automotive Steel Tubes,packed in pallet.

Supply Ability:

50000 ton per year

Highlight:

SAE J527 Bundy Tube

PVF Coating Bundy Tube

ERW Automotive Steel Tubes

Product Description

**10*0.7 PVF Bundy Tube Automotive Steel Tubes**

1. Standard

ASTM A254 Copper-brazed steel tubing

SAE J526 Welded low-carbon tubing

SAE J527 Brazed Double Wall Low-Carbon Steel Tubing

EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems

2. Steel Grade

BHG1, BHG2, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06

3. Heat Treatment

BK or NBK

4. Specification

O D/ mm	4	4.2	4.76	6	6.35	7.8	8	9.52
W T	0.5-1.0mm (0.5-0.7mm common WT)
Tolerance	±0.05mm
Length	180Kg/coil; 700-1000m/coil; per customer’s request

5. Production Process

Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing

6. Surface Treatment

Coating	Thickness	Salt spray test duration
Copper/White Zinc/Colour-Zinc	8μm	72h
PVF	8μm+20μm	1000-2000h
Military Green Zinc	8μm	180h
GALF	8μm+20μm	1000-2000h
Nylon	8μm+40μm	180h

7. Packing: In coil, in wooden box with seaworthy packing

8. Application

1) Fluid carrying system for automobiles

2) Fluid carrying system for refrigerators

3) Wire condenser for chillers, showcase

4) Vending machine, ice machine etc.

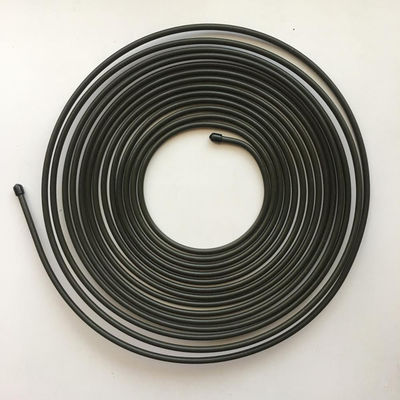

Automotive 10*0.7 ERW SAE J527 PVF Coating Bundy Tube 0

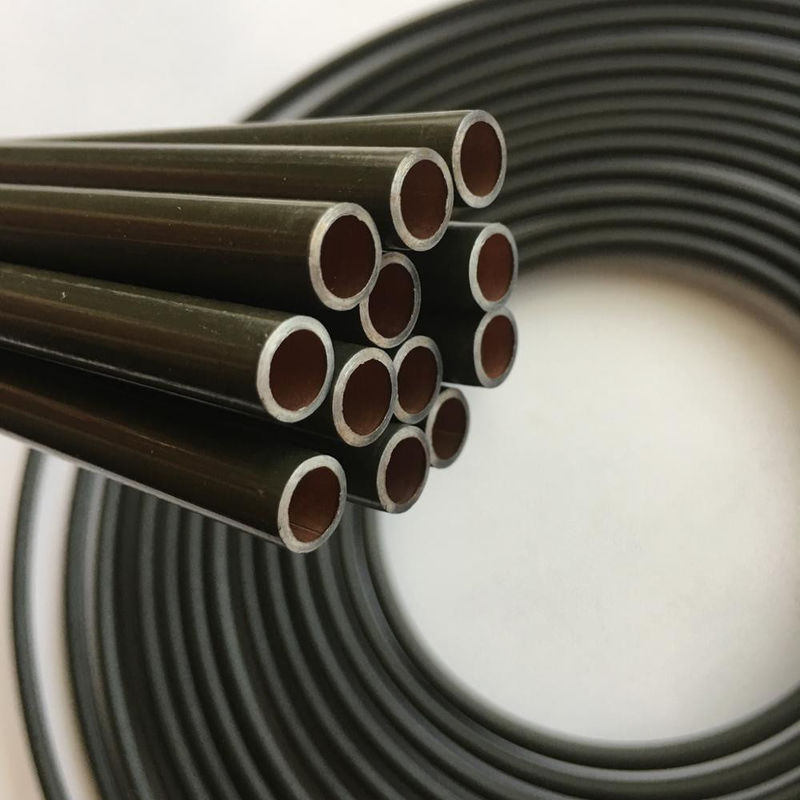

10*0.7 PVF Bundy Tube Automotive Steel Tubes
