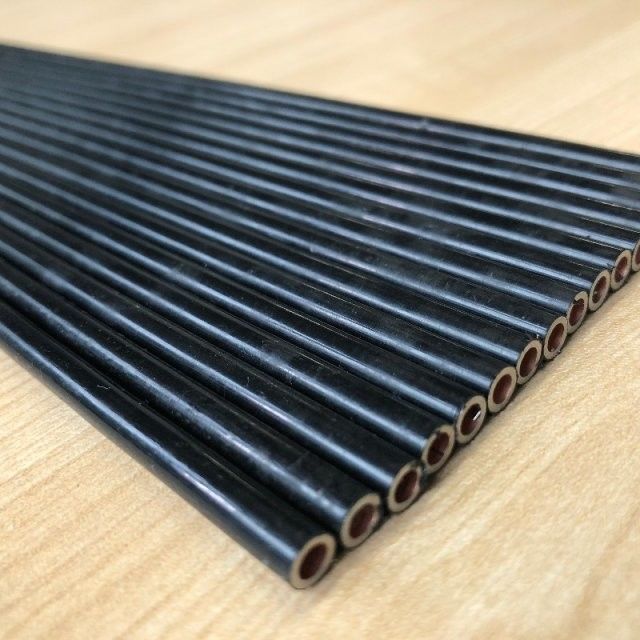

Cold Drawn PVF Coating Bundy Automotive Steel Tubes

Basic Properties
Place of Origin: Zhejiang China
Brand Name: TORICH
Certification: ISO 9001
Model Number: ASTM A254 BHG1
Trading Properties
Minimum Order Quantity: 500Kg
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Tons Per Month
Tags

low carbon steel pipe

steel mechanical tubing

low carbon steel tube
Product Summary
ASTM A254 BHG1 Copper PVF Coating Coil Tube Bundy Tube For Automobile Braking System Double-wall bundy tube has the advantages of seamless pipe and welded pipe, which not only has the high strength of seamless pipe, but also has the high precision of welded pipe. SAE J526 Welded low-carbon tubing ...

Product Details

Highlight:

PVF Coating Automotive Steel Tubes

,

Bundy Automotive Steel Tubes
Thickness: 0.5 - 1 Mm
Outer Diameter(Round): 4 - 9.52 Mm
Section Shape: Round
Technique: Cold Drawn
Special Pipe: Bundy Tube
Alloy Or Not: Non-alloy
Tolerance: ±5%
Key Words: Single Wall Bundy Tube
Heat Treatment: XBK Or NBK
Application: Automobile Braking System
Product Description



ASTM A254 BHG1 Copper PVF Coating Coil Tube Bundy Tube For Automobile Braking System



Double-wall bundy tube has the advantages of seamless pipe and welded pipe, which not only has the high strength of seamless pipe, but also has the high precision of welded pipe.



SAE J526 Welded low-carbon tubing

EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems

ASTM A254 Copper-brazed steel tubing





O D/ mm





4



4.2



4.76



6



6.35



7.8



8



9.52



W T





0.5-1.0mm (0.5-0.7mm common WT)



Tolerance





±0.05mm



Length





180Kg/coil; 700-1000m/coil; per customer’s request





Tube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere— Cleaning-- Leakage detection– Zinc/Copper Plating– Keep pressure (Airtightness) – Packing







Coating





Thickness



Salt spray test duration



Copper/White Zinc/Colour-Zinc





8μm



72h



PVF





8μm+20μm



1000-2000h



Military Green Zinc





8μm



180h



GALFAN





8μm+20μm



1000-2000h



Nylon





8μm+40μm



180h





Application industry



Double-layer coiled pipe is widely used in automobile braking system and fuel transportation pipeline, civil electric box compressor carburetor, heat exchanger, condenser and many other components.



1 ) Advantage:


a. Good corrosion resistance;
b. Excellent mechanical properties;
c. Low-pressure loss;
d. Comparatively light in weight
e. Sturdy shape, pleasant to the eye when exposed;
f. Impervious to harmful chemical;
g. Cost effective;
h. Recyclable & have resale value.


2 ) Plating: Cooper coated
3 ) Certifiction: ISO9001
4 ) Package: cut-to-length /in coils, as your requirement,beveled ends.
5 ) Standard: Country YB/T4164--2007
6 ) Raw materials: low carbon steel tube/ BHG2
