Brake System PVF Coating Single Wall Bundy Tube
Product Details
PVF Coating Bundy Tube
,Single Wall Bundy Tube
SAE J526 PVF Coating Single Wall Bundy Tube For Brake System
1. Standard
SAE J526 Welded low-carbon tubing
EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems
ASTM A254 Copper-brazed steel tubing
2. Steel Grade
BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06
3. Heat Treatment
BK or NBK
4. Specification
| O D/ mm | 4 | 4.2 | 4.76 | 6 | 6.35 | 7.8 | 8 | 9.52 |
| W T | 0.5-1.0mm (0.5-0.7mm common WT) | |||||||
| Tolerance | ±0.05mm | |||||||
| Length | 180Kg/coil; 700-1000m/coil; per customer’s request | |||||||
5. Surface Treatment
| Coating | Thickness | Salt spray test duration |
| Copper/White Zinc/Colour-Zinc | 8μm | 72h |
| PVF | 8μm+20μm | 1000-2000h |
| Military Green Zinc | 8μm | 180h |
| GALFAN | 8μm+20μm | 1000-2000h |
| Nylon | 8μm+40μm | 180h |
6. Application
1) Fluid carrying system for automobiles
2) Fluid carrying system for refrigerators
3) Wire condenser for chillers, showcase
4) Vending machine, ice machine etc.

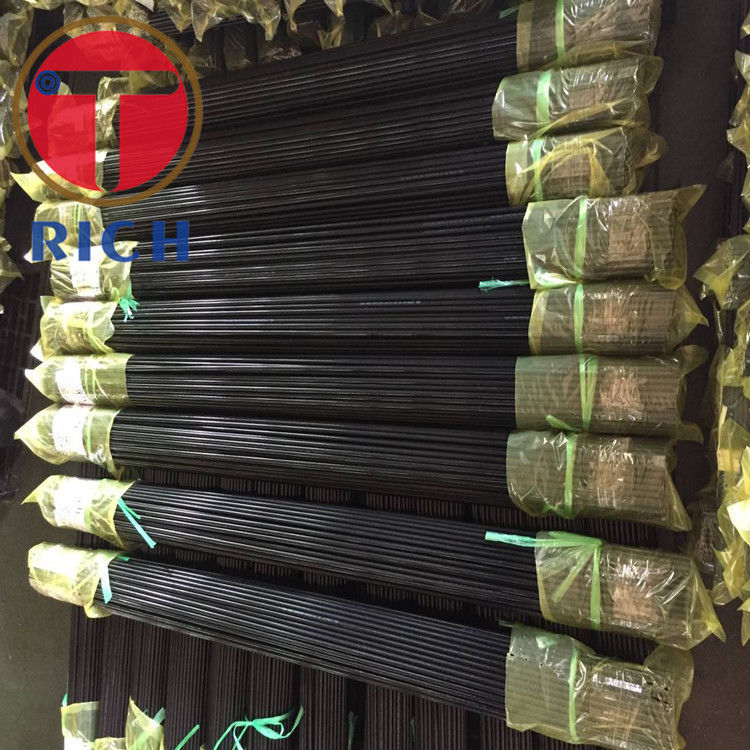

Detailed Images
A&Q
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
-
