Cold drawn Bearings tubes 12M Seamless Alloy Steel Tube

Minimum Order Quantity : 3tons Price : negotiable
Packaging Details : In bundles or in wooden boxes packaging Delivery Time : 5-8weeks days
Payment Terms : L/C, T/T Supply Ability : 50000tons per year
Place of Origin: China Brand Name: Torich
Certification: ISO9001 TS16949 Model Number: ISO683

Detail Information

Production Name: GCr15 100Cr6(1.3505) Seamless Bearing Steel Tubes Material: S1541 GCr15 G4051 SUJ2 100Cr6(1.3505)
OD: 4-114mm WT: 0.5-12mm
Length: 12M Max Production Method: Cold Drawn
Surface: Smoonth
High Light:

12M seamless alloy steel tube

,

bearings seamless alloy steel tube

Product Description

Precision steel tubes destined for production of bearings



Chemical Composition:GCr15

C:0.95-1.05 Mn:0.20-0.40 Si:0.15-0.35 S:≤0.020 P:≤0.027 Cr:1.30-1.65
100Cr6 C :0.95~1.05 Si:0.15~0.35 Mn:0.25~0.45 S :≤0.025 P :≤0.025 Cr:1.40~1.65
Ni:≤0.30 Cu:≤0.25 Mo:≤0.08Note:Ni+Cu≤0.50

Material  S1541 GCr15 G4051 SUJ2 100Cr6(1.3505)
Standard

YB-T 4146

SKFD33

S13000

GOST801-78

Application Automobile parts



Material S1541 GCr15 G4051 SUJ2 100Cr6(1.3505)



Characteristic

Bearing steel has high and uniform hardness and wear resistance as well as high elastic limit. Bearing steel is one of the most stringent steels in all steel production because of its strict requirements on the uniformity of chemical composition, the content and distribution of non-metallic inclusions, and the distribution of carbides. In 1976, ISO of the International Organization for Standardization (ISO) incorporated some general bearing steel numbers into the international standards, and divided the bearing steel into four categories: fully hardened bearing steel, surface hardened bearing steel, stainless bearing steel, high temperature bearing steel and a total of 17 steel grades.





Size range: OD 4-114mm WT0.5-12mm

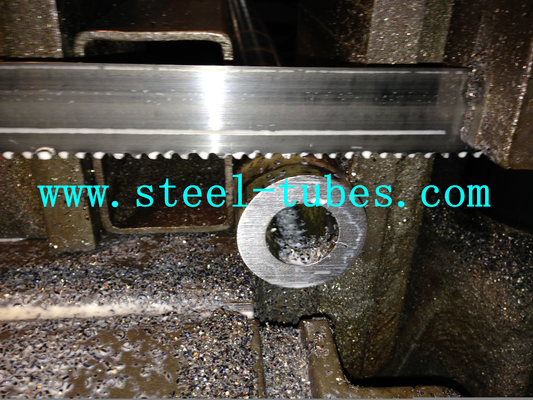

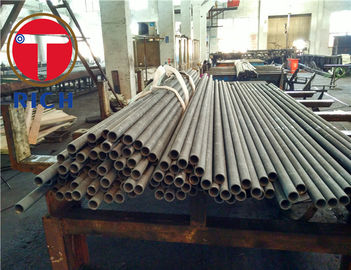

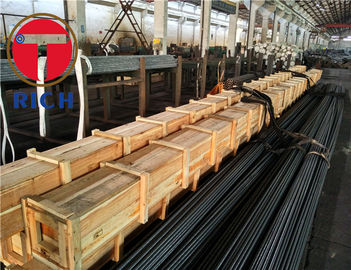

Cold drawn Bearings tubes 12M Seamless Alloy Steel Tube 0  Cold drawn Bearings tubes 12M Seamless Alloy Steel Tube 1
