TORICH JIS G4805 SUJ2 SUJ3 GCr15 100Cr6 Seamless Precision Bearing Steel Tube for Swing Bearing

Basic Information
Place of Origin: ZHEJIANG, CHINA
Brand Name: TORICH
Certification: ISO9001, ISO14001, TS16949
Model Number: JIS G4805
Minimum Order Quantity: 10 Tons
Price: negotiable
Packaging Details: Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000 Tons per Year
Detail Information
Product Name: TORICH JIS G4805 SUJ2 SUJ3 GCr15 100Cr6 Seamless Precision Bearing Steel Tube For Swing Bearing Keyword: Seamless Bearing Steel Tube
Standard: ASTM A295, A534, GB/T18254, JIS G4805 Material: GCr15, 52100, SUJ2, SUJ3, 100Cr6, SKF3S
Characteristic: High Dimensional Accuracy Usage: Bearing Parts, Automotive Parts
OD: 5 - 114 Mm WT: 1 - 14 Mm
Length: 3000mm-12000 Mm Surface: Pickling And Passivation
High Light:

Bearing Precision Steel Tube

,

100Cr6 Precision Steel Tube


Product Description

TORICH JIS G4805 SUJ2 SUJ3 GCr15 100Cr6 Seamless Precision Bearing Steel Tube for Swing Bearing



Material:

GCr15(52100,SUJ2,SUJ3,100Cr6, SKF3S)

20CrNiMo(8620H,4118H)

SKF,30Cr13



Bearing Steel Tube

GB/T18254 High Carbon Chromium bearing seamless tube

ASTM A295 Wearable high-carbon bearing seamless steel tube

ASTM A534 Wearable&cementite bearing seamless steel tube

JIS G4805 High-Carbon Chromium bearing seamless steel tube



Size Range:

OD 5-114mm WT 1-14mm



Feature: High Dimensional Accuracy, Less Surface Decarburization,

High utilization rate and stable properties



Application: automotive, electrical, instrumentation,aerospace etc.


No.
Grade
Chemical Composition %
C
Si
Mn
Cr
Mo
B00151
G8Cr15
0.75-0.85
0.15-0.35
0.20-0.40

 1.30-1.65

≤0.10
B00150
GCr15
0.95-1.05
0.15-0.35
0.25-0.45
1.40-1.65
≤0.10
B01150
GCr15SiMn
0.95-1.05
0.45-0.75
0.95-1.25
1.40-1.65

 ≤0.10

B03150
GCr15SiMo
0.95-1.05
0.65-0.85
0.20-0.40
1.40-1.70
0.30-0.40
B02180
GCr18Mo
0.95-1.05
0.20-0.40
0.25-0.40
1.65-1.95
0.15-0.25

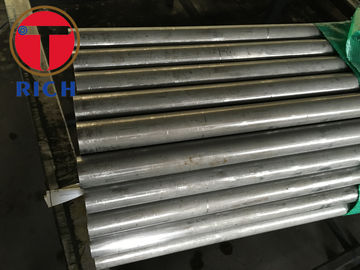

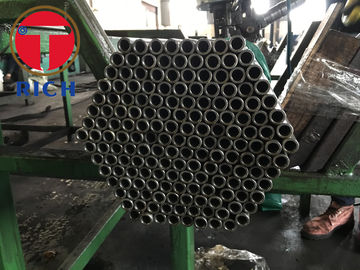

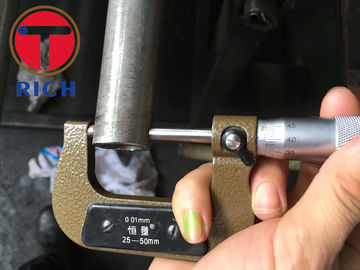

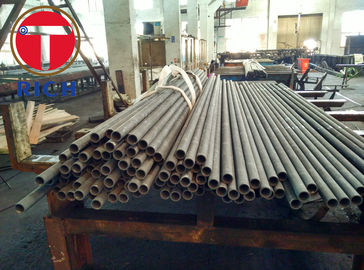

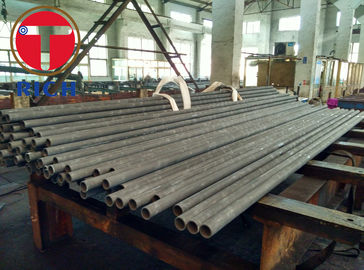

Product Show

TORICH JIS G4805 SUJ2 SUJ3 GCr15 100Cr6 Seamless Precision Bearing Steel Tube for Swing Bearing 0TORICH JIS G4805 SUJ2 SUJ3 GCr15 100Cr6 Seamless Precision Bearing Steel Tube for Swing Bearing 1



Delivery Condition

WHR Hot rolling and hot forging unannealed round steel
WHSTAR Hot rolling and hot forging soft annealed round steel
WHTGR Hot rolling spheroids annealed round steel
WHTGSFR Hot rolling spheroids annealed peeled round steel
WHSTASFR Hot rolling and hot forging soft annealed peeled peeled round steel
WCR Cold drawn(cold rolled)round steel
WCSPR Cold drawn(cold rolled)polished round steel
WHT Hot rolling steel tube
WHTASFT Hot rolling annealed peeled steel tube
WCT Cold drawn(cold -rolled)steel tube
After negotiation of the customer and supplier (stipulated in contract),the delivery condition can be "Annealed+

phosphatized+micro drawing"+"Annealed+micro drawing"etc
WHWY Wire rod steel (hot rolling or spheroids annealed)



Company Introduction

EN10305-6 High Precision Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems 2

EN10305-6 High Precision Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems 3EN10305-6 High Precision Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems 4



QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking


100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
