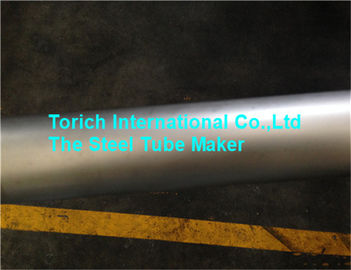

Pickling Surface Seamless Gr2 Hollow Steel Tube
Product Details
precision steel pipe
,precision seamless pipe
Gr2-titanium-metal-tube
Product detail:
| Product Name | Titanium tube/tubes/pipe/pipes/tubing precision metal tubing |
| Standard | ASTM B337, ASME SB338, ASTM B338, ASTM B861, ASTM B862 |
| Material | Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr11, Gr12, etc |
| Length | ≤6000mm |
| Size(mm) | Diameter 8-203.2 |
| Section shape | Round/ Square |
| Certification | ISO9001:2008, SGS |
| Surface Treatment | pickling, polished, bright finish etc. |
| Application | Heat exchanger, cooling tower, aviation, medical, industry etc. |
| Feature | 1.Low Density and High Strength 6.Good thermal properties 7.Low Modulus of Elasticity |
| Advantages | 1. First-class technonlgy and the rigorous work attitude 2. We have the most professional team to solve all kinds of the problems you have during the manufacturing process and provide your pressure vessel drawing for free if you need. 3. Low purchasing cost for repetitive orders in the long-run as our performance/price ratio is higher. |
Titanium and its alloys have many excellent properties, which are mainly embodied in the following aspects:
1. High strength. Titanium alloy has high strength, its tensile strength is 686 - 1176 MPa, and its density is only about
60% of steel, so its specific strength is very high.
2. High hardness. The hardness HRC of titanium alloy (as annealed) is 32-38.
3. Low modulus of elasticity. The elastic modulus of titanium alloy (as annealed) is 1.078*10-1.176*10MPa, which is
about half of that of steel and stainless steel.
4. Excellent performance at high and low temperatures. At high temperature, titanium alloy can still maintain good
mechanical properties, its heat resistance is much higher than that of aluminium alloy, and its working temperature
range is wider. At present, the working temperature of new type of heat-resistant titanium alloy can reach 550-600
degrees C. At low temperature, the strength of titanium alloy is higher than that at normal temperature, and it has
good toughness. Low temperature titanium alloy has -25 degrees C. It also maintains good toughness at 3 C.
5. Titanium has strong corrosion resistance. Titanium can form thin and compact titanium oxide film on the surface
of Titanium in air below 550 C. Therefore, its corrosion resistance is better than that of most stainless steels in
oxidizing media such as atmosphere, sea water, nitric acid and sulfuric acid and strong alkali.
Titanium mian feature:
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight,
excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength
and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture,
mechanical parts field, automobile industry, and aerospace field, etc.

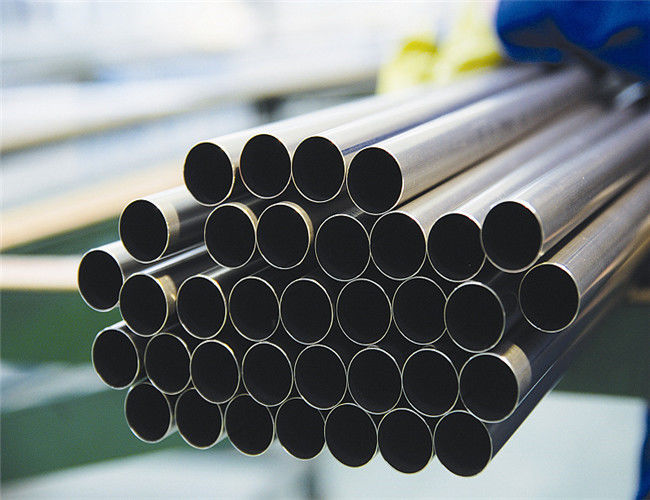

Gr2-titanium-metal-tube precision metal tubing
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
Q: Stock is available ?
A: Some regual sizes of precision steel tubes is available with stock,Usually produce according to the order-
