Condenser Seamless Titanium GB/T3625 Alloy Steel Pipe

Name: Condenser Seamless Titanium GB/T3625 Alloy Steel Pipe
Brand: TORICH INTERNATIONAL LIMITED
SKU: GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861
Price: 25,002.00 USD
Availability: InStock

Brand Name:	TORICH
Model Number:	GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861
MOQ:	500kg
Price:	negotiable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	5000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China

Certification:

ISO9001 ISO14001 TS16949

Product Name:

Round Seamless Titanium Pipe Alloy Steel Pipe For Heater Exchanger

Keyword:

Seamless Titanium Pipe

Application:

For Condenser And Heater-Exchangers

Shape:

Round

Standard:

GB/T3624, GB/T3625, ASTM B338,etc

Material:

TA1, TA2, TA3, TA9, TA10

Surface:

Polishing

OD:

10-80mm

WT:

0.5-4.5mm

Length:

Max 12000mm

Packaging Details:

Round Seamless Titanium Pipe Alloy Steel Pipe For Condenser / Stainless Steel Tubing For Heater Exchanger,packing in standard marine packages.

Supply Ability:

5000 tons per month

Highlight:

alloy steel tube

alloy steel seamless tube

Product Description

Round Seamless Titanium Pipe Alloy Steel Pipe For Heater Exchanger

Standard: GB/T3624, GB/T3625, ASTM B338/ASME SB338, ASTM B861/ASME SB861, DIN17861

Size range: OD: 10-80mm WT: 0.5-4.5mm Length: 15m max

Material: TA1, TA2, TA3, TA9, TA10

Usage: Condenser and Heater-Exchangers

Chemical Composition%

Grade	N max	C max	H max	Fe max	O max	Residual		Al	V	Pd	Mo	Cr	Si max	S max	Mn max	Cu	Oth ers	Ni	Ti
Grade	N max	C max	H max	Fe max	O max	Each max	Total max	Al	V	Pd	Mo	Cr	Si max	S max	Mn max	Cu	Oth ers	Ni	Ti
TA1	0.03	0.08	0.015	0.20	0.18	0.1	0.4	-	-	-	-	-	-	-	-	-	-	-	balance
TA2	0.03	0.08	0.015	0.30	0.25	0.1	0.4	-	-	-	-	-	-	-	-	-	-	-	balance
TA3	0.05	0.08	0.015	0.30	0.35	0.1	0.4	-	-	-	-	-	-	-	-	-	-	-	balance
TA9	0.03	0.08	0.015	0.30	0.25	0.1	0.4	-	-	0.12-0.25	-	-	-	-	-	-	-	-	balance
TA10	0.03	0.08	0.015	0.30	0.025	0.1	0.4	-	-	-	0.2-0.4	-	-	-	-	-	-	0.6-0.9	balance

Mechanical Property

Grade	TS(Mpa)	YS(Mpa)	E(%), min
TA1	≥240	140-310	24
TA2	≥400	275-450	20
TA3	≥500	380-550	18
TA9	≥400	275-450	20
TA10	≥460	≥300	18

Characteristic:

Good concentricity High Precision

Good surface quality Stable quality

Good OD and ID tolerance Smooth Roughness

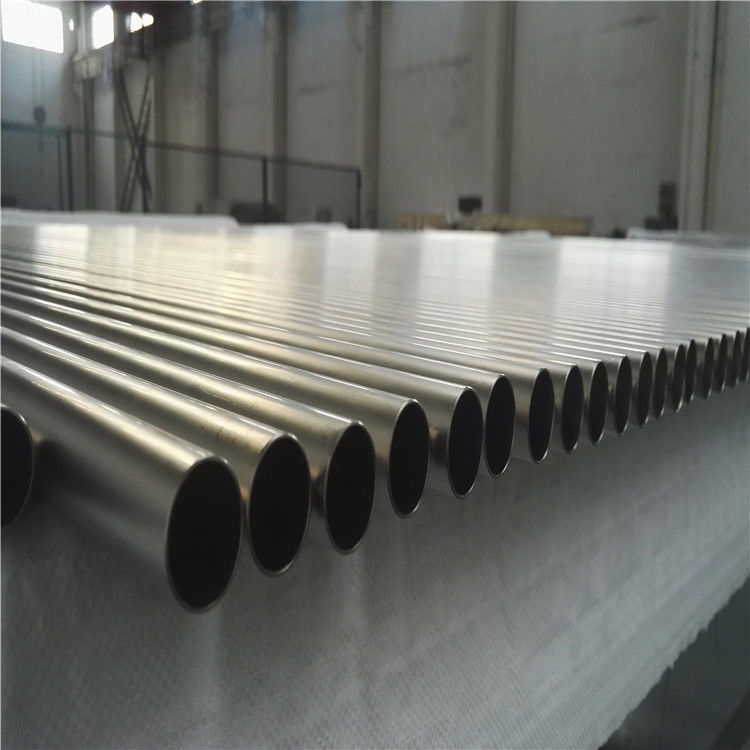

product pictures

Round Seamless Titanium Pipe Alloy Steel Pipe For Heater Exchanger
