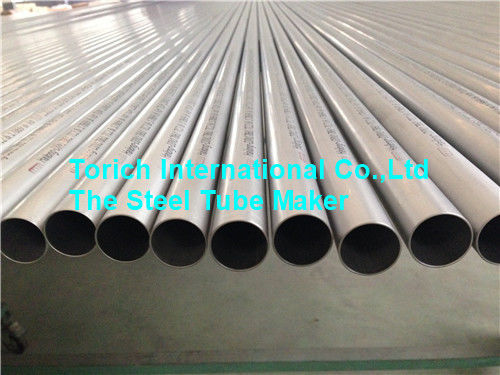

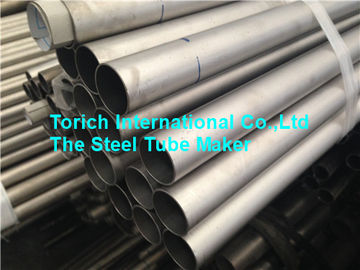

TORICH GB/T 3625 TA1 TA2 Titanium Heat Exchanger Seamless Tubes
OD:2.5~150mm
WT:0.5-10mm
Grade:Grade2 etc
Application: Exchanger , cold condenserors ,Electronic industry accessories,Air conditioner coil etc.
Grade : TA1,TA2,TA3,TA9,TA9-1,TA10 .
Standard: Gr/T3624-1991,Gr/T3625-1995 ASTM AB338
Size : OD:4-114mm WT: 0.2-4.mm
Packaging: Bundles Packaging ,Wooden case.
Chemical Elements:
| Steel Grade | Nominal Chemical Composition | Chemical Composition/% |
| Main components | Impurity,max |
| Ti | Mo | Pd | Ni | Si | B | Fe | C | N | H | O | Others |
| Single | Sum |
| TA1 | Industry Titanium | Remained | — | — | — | — | — | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | 0.10 | 0.40 |
| TA2 | Industry Titanium | Remained | — | — | — | — | — | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.10 | 0.40 |
| TA3 | Industry Titanium | Remained | — | — | — | — | — | 0.30 | 0.08 | 0.05 | 0.015 | 0.35 | 0.10 | 0.40 |
| TA9 | Ti-0.2Pd | Remained | — | 0.12~0.25 | — | — | — | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.10 | 0.40 |
| TA9-1 | Ti-0.2Pd | Remained | — | 0.12~0.25 | — | — | — | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | 0.10 | 0.40 |
| TA10 | Ti-0.3Mo-0.8Ni | Remained | 0.2~0.4 | — | 0.6~0.9 | — | — | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.10 | 0.40 |
Mechanical porperties:
| Mechanical porperty at room temperature |
| Alloy Grade | Condition | Mechanical porperty at room temperature |
| Tensile strength /Mpa | specified non-proportional extension strength /Mpa | percentage elongation after fracture % |
| TA1 | Annealing | ≥240 | 140-310 | ≥24 |
| TA2 | ≥400 | 275-450 | ≥20 |
| TA3 | ≥500 | 380-550 | ≥18 |
| TA9 | ≥400 | 275-450 | ≥20 |
| TA9-1 | ≥240 | 140-310 | ≥24 |
| TA10 | ≥460 | ≥300 | ≥18 |
American Standard: ASTM B 337 B338
Steel tube maker ,If any interests do no hesitate to email us .
Reference Documents:
GB/T 228 Metallic Material Tensile testing at ambient temperature
GB/T 241 Metal Tube Hydrostatic Testing
GB/T 244 Metal Tube Bend Test
GB/T 246 Metal Tube Flattening Test
GB/T 3620.1 Titanium and titanium alloy grades and chemical composition
GB/T 3620.2 Titanium and titanium alloy processing product chemical composition allowable deviation
GB/T 4698 Sponge titanium, titanium and titanium alloy chemical analysis method
GB/T 8180 Titanium and titanium alloy processing product packaging, mark, transportation and storage
GB/T 12969 Titanium and titanium alloy pipe ultrasonic and eddy current testing method
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
If you have another question, pls feel free to contact us
