316 304 Stainless Steel Tube Needle Medical Micro Tube ISO9001 TS16949
Product Details
stainless steel round tube
,stainless tube steel

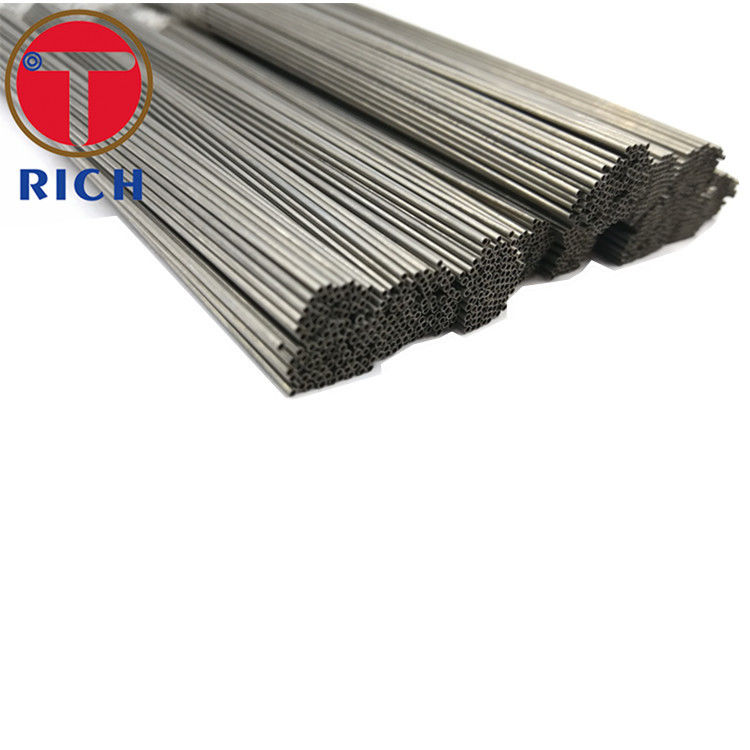

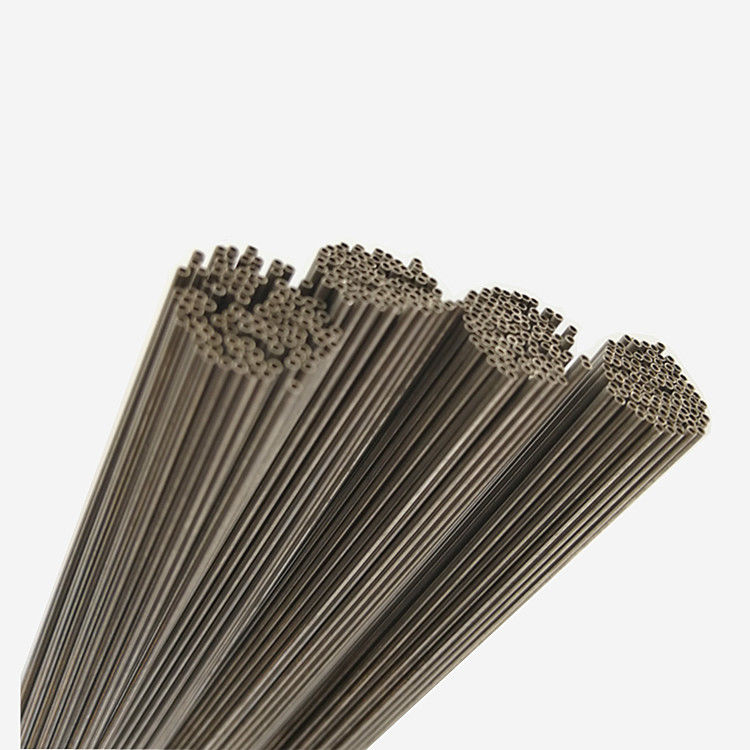

TORICH 316 304 Sensor Stainless Steel Needle Tube
The main specifications of medical needles are between 0.25 ~ 30.0mm in diameter,
tube wall thickness between 0.08 ~ 2.0,
tube wall thickness tolerance within 0.02,
good concentricity, bright appearance, smooth inner hole, soft and hard state!
Applications
1: Medical equipment industry, injection needle tube, puncture needle tube, medical industrial tube.
2: industrial electric heating tube, industrial oil tube
3: temperature sensor tube, sensor tube, barbecue tube, thermometer tube, thermometer tube, instrument tube,
thermometer stainless steel tube.
4: pen making pen, core tube, pen tube.
5: All kinds of electronic micro-tubes, optical fiber accessories, light mixer, small diameter stainless steel capillary
6: clock and watch industry, mother-to-child, raw ear pole, watch strap accessories, jewelry punch needle
7: all kinds of antenna tube, automobile tail antenna tube, tie rod antenna tube, stretch pointer, mobile phone stretch antenna tube,
micro-antenna tube, portable computer antenna Stainless steel antenna.
8: stainless steel pipes for laser engraving equipment.
9: pipes for fishing utensils, pipes for dropping fishing rods
10: pipes for various dietary industries, pipes for transporting materials
Capillary Tube Size:
| Seamless Welded Tubing (TYPE) |
Material | Min. Burst pressure (PSI) | Min. Collapse pressure (PSI) | Load at Min. 0.2% YS (IBS) | Load at Typical UTS (IBS) |
| 1/8" × 0.028" | 316L | 29,531 | 9,487 | 256 | 768
|
| 1/8" × 0.035" | 316L | 36,914 | 11,132 | 297 | 891 |
| 1/4" × 0.035" | 316L | 18,676 | 6,540 | 709 | 2,128 |
| 1/4" × 0.049" | 316L | 26,146 | 8,635 | 928 | 2,785 |
| 1/4" × 0.065" | 316L | 34,684 | 10,666 | 1,133 | 3,400 |
| 3/8" × 0.035" | 316L | 12,500 | 4,583 | 1,122 | 3,365 |
| 3/8" × 0.049" | 316L | 17,500 | 6,183 | 1,506 | 4,517 |
| 1/2" × 0.035" | 316L | 9,394 | 3,522 | 1,534 | 4,602 |
| 1/2" × 0.049" | 316L | 13,151 | 4,799 | 2,083 | 6,248 |
| 1/2" × 0.065" | 316L | 17,445 | 6,167 | 2,665 | 7,995 |
| 1/2" × 0.083" | 316L | 22,276 | 7,587 | 3,262 | 9,786 |
-
