Cold Drawn Alloy Steel Pipe ASTM A335 12.7 - 177.8mm OD 4 - 12.5m Length
Basic Properties
Place of Origin:
China
Brand Name:
TORICH
Certification:
ISO9001 TSI16949
Model Number:
ASTM A335
Trading Properties
Minimum Order Quantity:
5tons
Price:
Negotiable
Payment Terms:
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
6000tons/year
Product Summary
Alloy Pipe ASTM A335 P5, P9, P11, P22, P91 Alloy steel pipes are used in the energy industry for high temperature and very low-temperature service (cryogenic), or for applications with very high pressures. ASTM A335 alloy steel pipes fit ASTM A234 WPx series buttweld fittings (WP5, WP9, WP91) and ...
Product Details
Highlight:
alloy steel tube
,alloy steel seamless tube
Product Name:
Alloy Pipe ASTM A335
Grade:
P5, P9, P11, P22, P91
Technique:
Cold Drawn
OD:
12.7-177.8mm
WT:
2.2-25.4mm
Length:
4-12.5m
Alloy Or Not:
Alloy
Secondary Or Not:
Non-seccondary
Certificate:
EN10204.3.1
Shipment:
Ocean, Air
Product Description
Alloy Pipe ASTM A335 P5, P9, P11, P22, P91
Alloy steel pipes are used in the energy industry for high temperature and very low-temperature service (cryogenic), or for applications with very high pressures.
ASTM A335 alloy steel pipes fit ASTM A234 WPx series buttweld fittings (WP5, WP9, WP91) and A182 Fx forged fittings and flanges (A182 F5, F9, F11, F22, F91). All these materials have similar chemical and mechanical properties and can be joined or welded.
Size range: O.D.:6-420mm W.T.:1-50mm L: according to customer requirement Alloy steel seamless ASTM A335 P1 boiler pipe
| Steel Grade and Chemical Compositions: | |||||||
| Steel Grade | C | Mn | P | S | Si | Cr | Mo |
| max | max | max | max | max | min | ||
| P1 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | - | 0.44-0.65 |
| P9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| P21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 2.65-3.35 | 0.80-1.06 |
| P22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 8.50-9.50 | 0.30-0.60 |
| Steel Grade | Tensile Strength | Yield Strength | Elongation | Hardness.Max | ||
| min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
| P1, P2 | 55[380] | 30[205] | 20 | |||
| P12 | 60[415] | 32[220] | 20 | |||
| P23 | 74[510] | 58[400] | 20 | |||
| P91 | 85[585] | 60[415] | 30 | 250 HB/265 HV | 25 HRC | |
| P92, P911 | 90[620] | 64[440] | 30 | 250 HB/265 HV | 25 HRC | |
| P122 | 90[620] | 58[400] | 30 | 250 HB/265 HV | 25 HRC | |
Applications: for Boilers,Superheaters,Heat-Exchangers

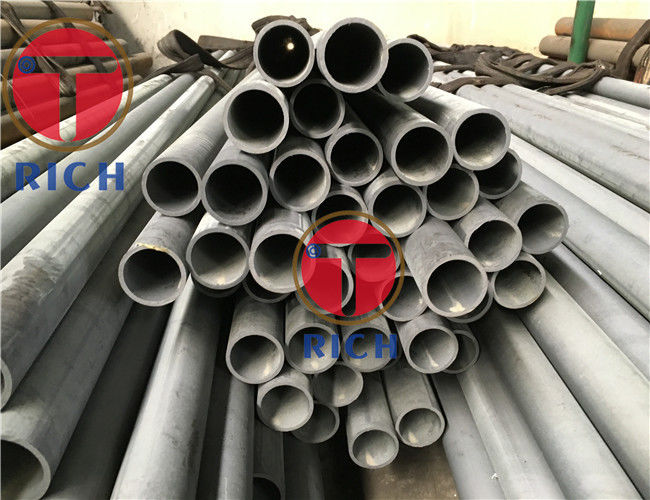

Alloy Pipe ASTM A335 Photos
