Seamless Cold Rolled Capillary Carbon Steel Tube AISI 1020 JIS G3445 EN2.4858
Basic Properties
Place of Origin:
ZheJiang,CHINA
Brand Name:
TORICH
Certification:
ISO14001:2008,TS16949
Model Number:
AISI 1020 JIS G3445
Trading Properties
Minimum Order Quantity:
20 KG
Price:
negotiable
Payment Terms:
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability:
60000 Ton per year
Product Summary
EN2.4858 Seamless Tube Cold Rolled Capillary Carbon Steel Tube AISI 1020 JIS G3445 End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements Surface Oiled, Galvanized, Phosphate etc Treatment Technique Cold Rolled Application 1. ...
Product Details
Highlight:
seamless steel pipe
,precision stainless steel tubing
Product Name:
EN2.4858 Seamless Cold Rolled Capillary Carbon Steel Tube AISI 1020 JIS G3445
Type:
Cold Rolling
Surface:
Oiled
Material:
JIS G3445
Usage:
Needle Tube
Shape:
Round Shape
OD:
0.003-1mm
WT:
0.2-10mm
Product Description

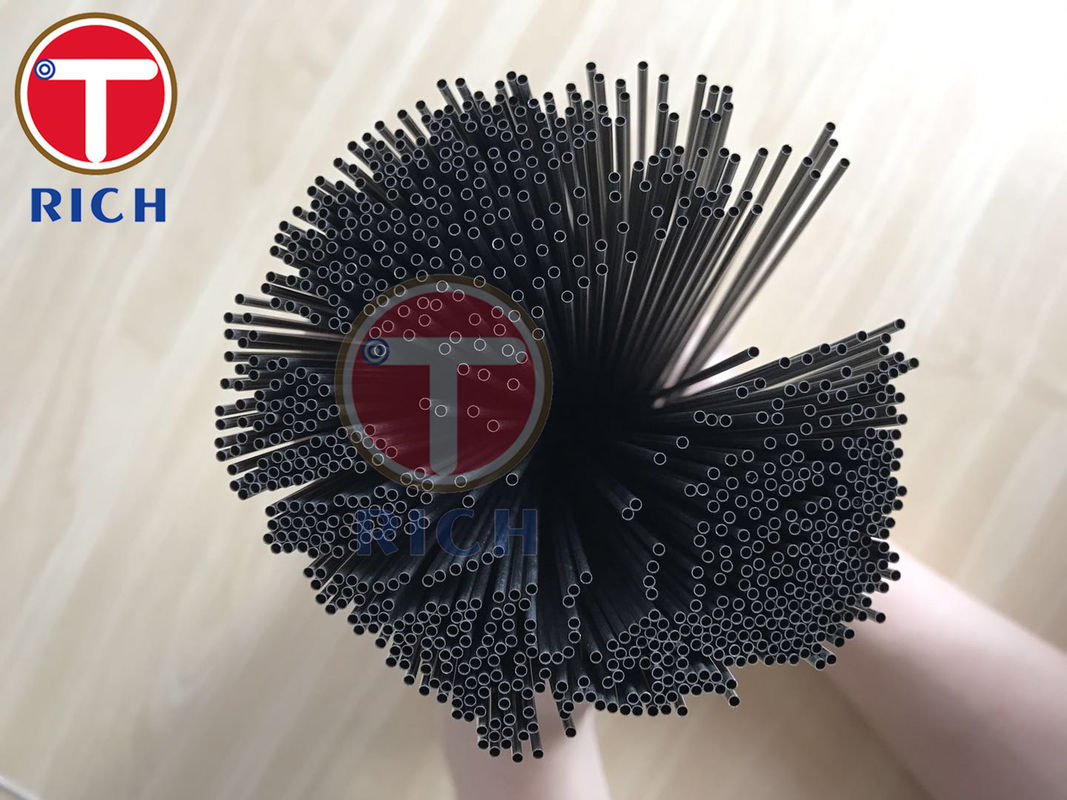

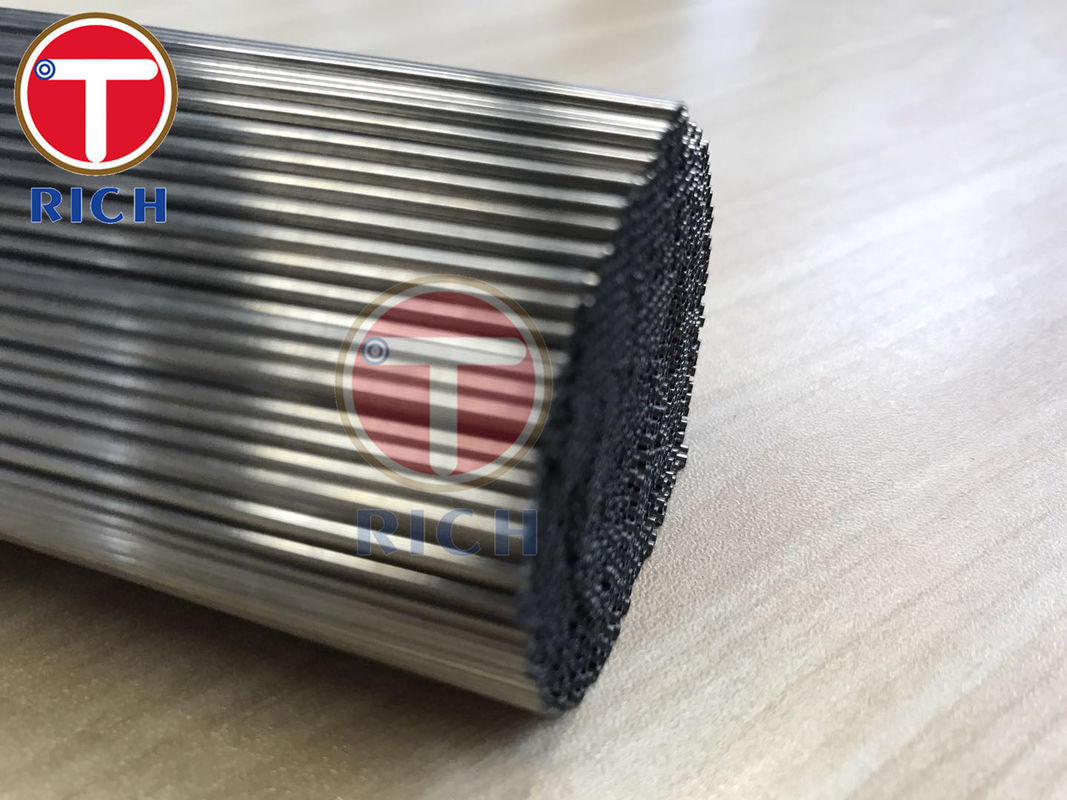

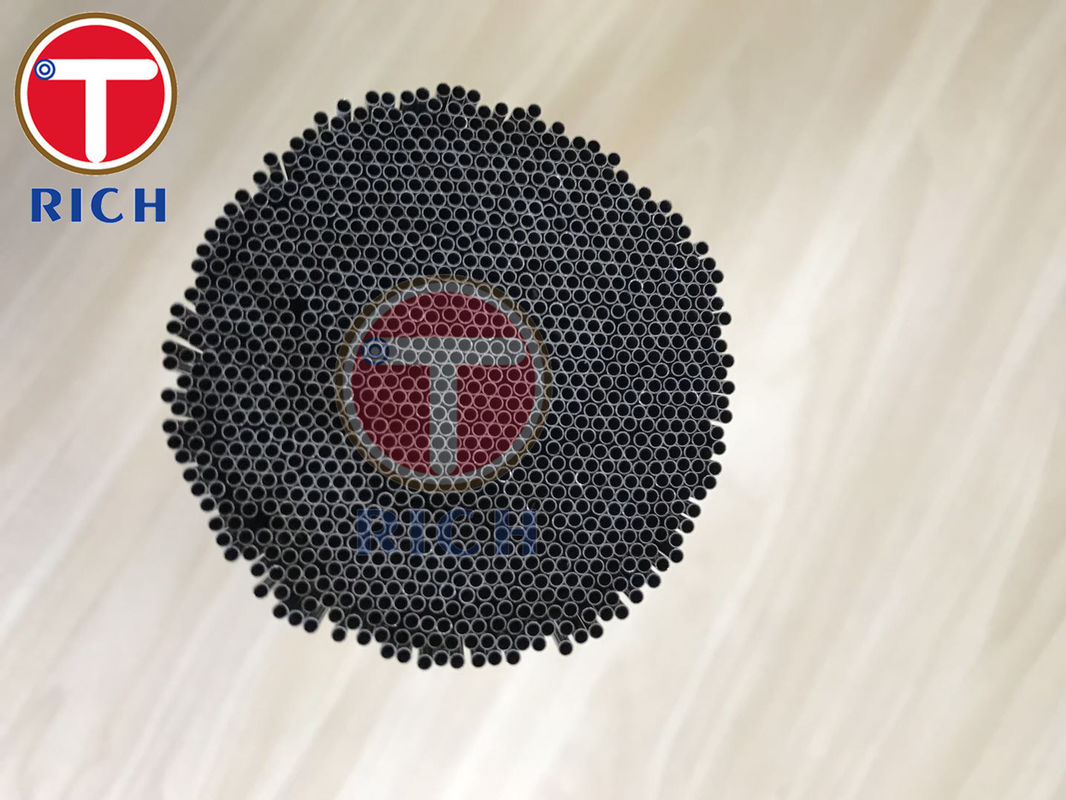

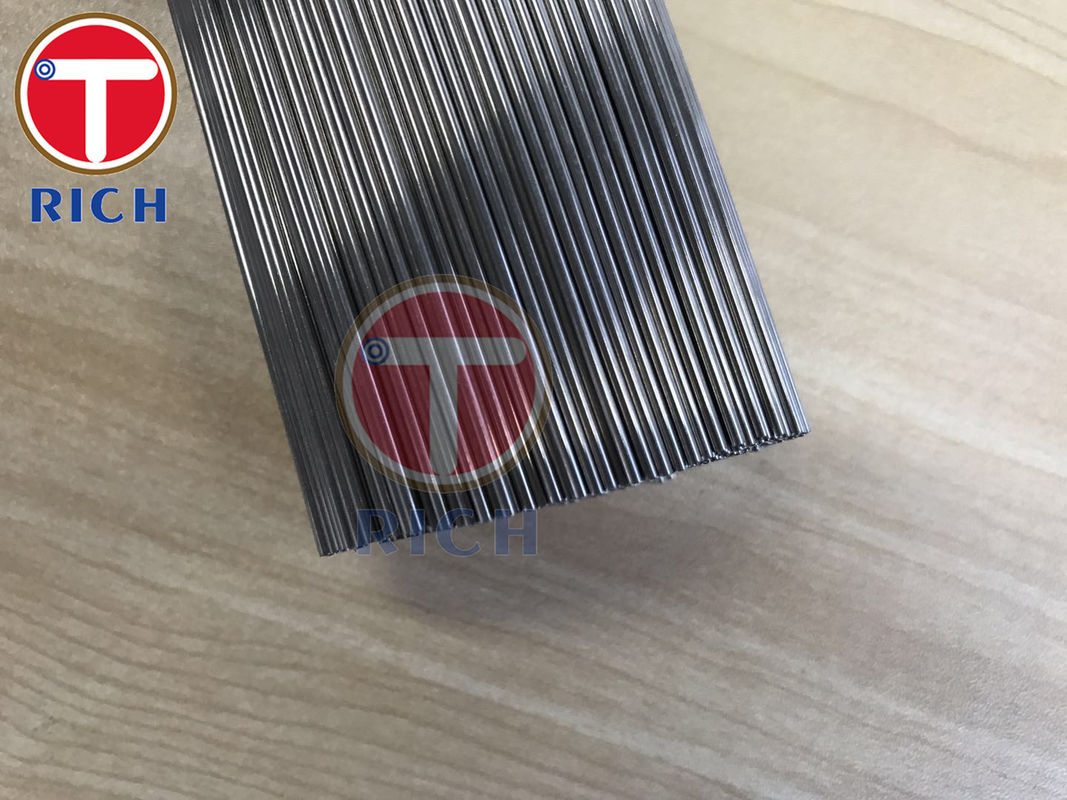

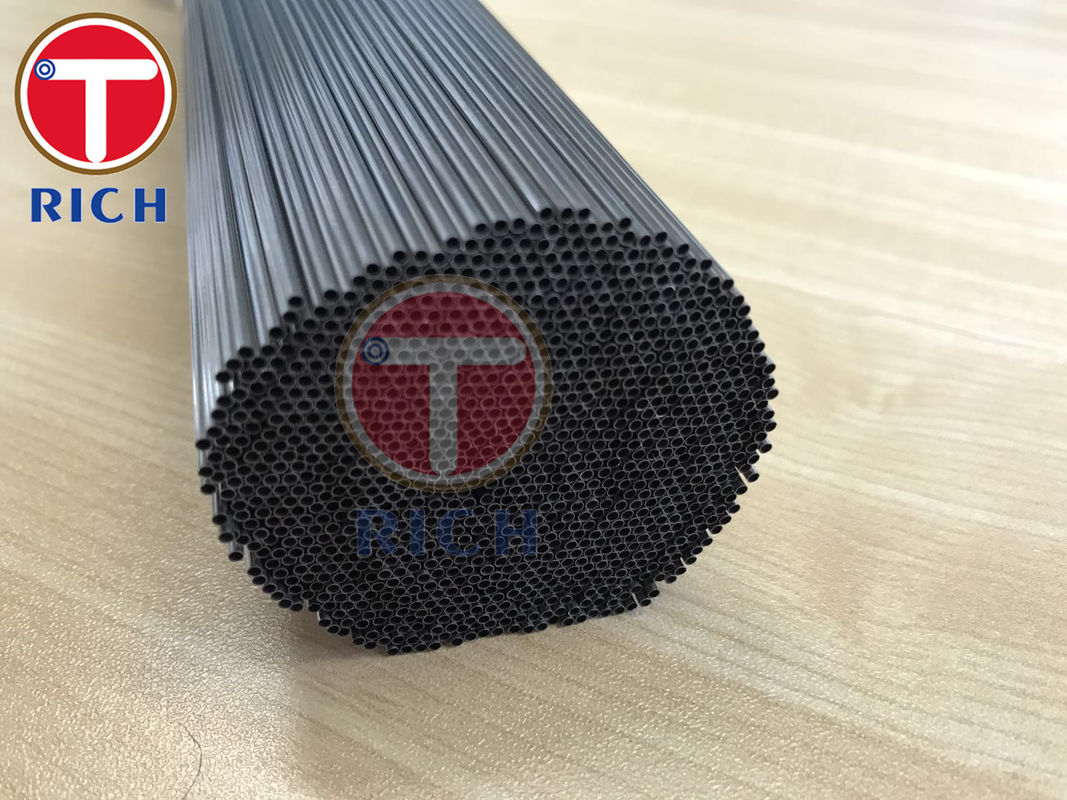

EN2.4858 Seamless Tube Cold Rolled Capillary Carbon Steel Tube AISI 1020 JIS G3445
| End Shape | Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements | |||||||||
| Surface | Oiled, Galvanized, Phosphate etc | |||||||||
| Treatment | ||||||||||
| Technique | Cold Rolled | |||||||||
| Application | 1. Automotive and mechanical pipes | |||||||||
| 2. Petroleum cracking pipes | ||||||||||
| 3. High Pressure Boiler Pipe | ||||||||||
| 4. Low and middle pressure fluid transportation pipeline | ||||||||||
| 5. Chemical fertilizer equipment pipes | ||||||||||
| 6. Heat exchanger pipes | ||||||||||
| Delivery | 1. BK (+C) | No heat treatment after last cold forming process. | ||||||||
| Conditions | 2. BKW (+LC) | After last heat treatment there is a light finishing pass (cold drawing) | ||||||||
| 3. BKS (+SR) | After the final cold forming process the tubes are stress relieve annealed. | |||||||||
| 4. GBK (+A) | After the final cold forming process the tubes are annealed in a controlled atmosphere. | |||||||||
| 5. NBK (+N) | After the final cold forming process the tubes are annealed above the upper transformation point in acontrolled atmosphere. | |||||||||
| Package | 1. Bundle Packing. | |||||||||
| 2. Plain end or vanished as per customer's request. | ||||||||||
| 3. Wrapped in waterproof paper. | ||||||||||
| 4. Sackcloth with several steel strips. | ||||||||||
| 5. Pack in heavy tri-wall boxes. | ||||||||||
Mechanical Property:
| Standard | Steel Grade | Mechanical Performance | ||
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
| JIS-G3445 | STKM11A | ≥295 | ≥35 | |
| STKM12A | ≥345 | ≥175 | ≥35 | |
| STKM12B | ≥390 | ≥275 | ≥25 | |
| STKM12C | ≥470 | ≥355 | ≥20 | |
| STKM13A | ≥375 | ≥215 | ≥30 | |
| STKM13B | ≥440 | ≥305 | ≥20 | |
| STKM13C | ≥510 | ≥380 | ≥15 | |
| STKM14A | ≥410 | ≥245 | ≥25 | |
| STKM14B | ≥500 | ≥355 | ≥15 | |
| STKM14C | ≥550 | ≥410 | ≥15 | |
FAQ.
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Who are your customers?
1.Stockists, Distributors,Wholesalors,Agents, Traders, End Users, etc
How long will you react on our requirement?
1.Your requirement would be treated within 24 hours on weekdays. Quotations would be sent upon technical details confirmed by customer!
Any more questions about your doubts, please feel free to send us your emails or call!
