DIN2393 St37 St52.3 Carbon Steel Round Pipe Oiled Surface Precision Cold Drawn
Product Details
precision steel pipe
,precision seamless pipe
DIN2393 St37 St52.3 Precision Cold Drawn Welded Carbon Gas Spring Tube Material
TORICH is a professional producer of precision steel pipe from China, which is a specialized in manufacturing seamless precision tube and erw precision steel tubes for Gas Spring Products which can be used in automotive gas springs, furniture gas springs etc.
The characteristics of our high precision seamless steel pipe is with very accurate OD and ID tolerances to meet customer's specific requirement of good tolerances. The perfect inside roughness is perfecting increase the life span of the gas springs for our customers.
Quick Detail for seamless precision tube:
| Product name | DIN2393 St37 St52.3 Precision Cold Drawn Welded Carbon Gas Spring Steel Tube Material |
| Steel Grade | CEW 1008, 1010, 1020, St37.2, E355 |
| Size Range | OD range:15-200mm WT range: 0.8-16mm |
| Tolerance | OD: (+/-0.06mm) WT: (+/-0.03mm) |
| ID surface | 0.4μm |
| Straightness | ≤0.5mm/1m |
| Roundness | ≤0.5mm |
| Regular specifications | 23.2X1.6, 42X3, 25.4X0.9, 15x1, 19x1.5, 20x1, 20x1.5 |
| Standard | DIN 2393, ASTM-A513-t6, EN10305, ASTM A519, GOST 5005 -82, DIN2394, JIS-G3445, DIN2391 BS6323, GOST8734-75, IS3074, ASTM A513 |
| Application | Motorcycle front fork, Motor outer shell, Automobile shock absorber cylinder, Dust cover, Automobile shock absorber reservior, refrigaretion gas reservior |
| Production process | Material incoming inspection Surface treatment,Cold rolling Inspection,Rust preventive work,Warehouse storage |
Our technical team can assist on the specification of your gas spring or damper product to ensure that the
optimal product is selected or developed for your application.
The production worksho of precision seamless steel tube:

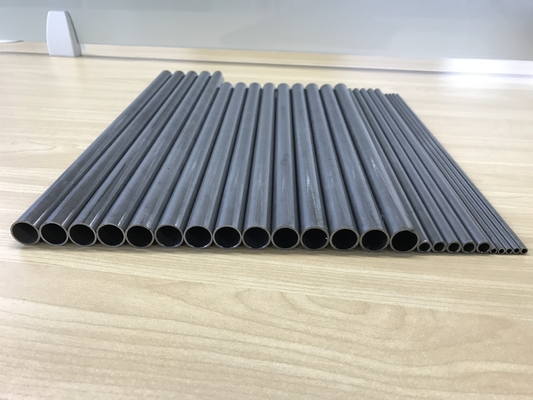

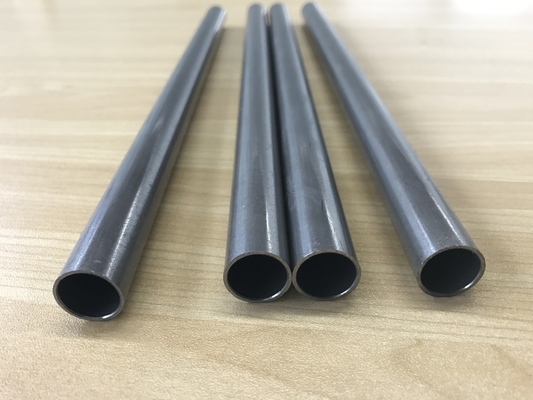

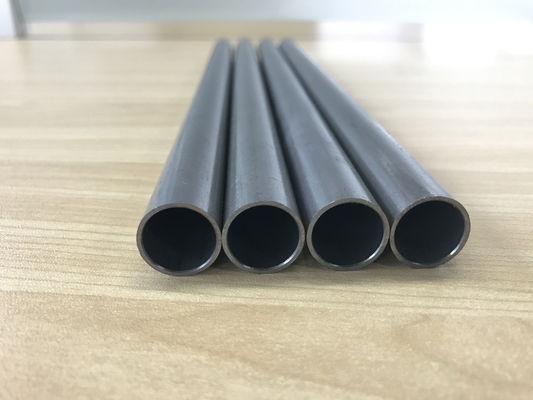

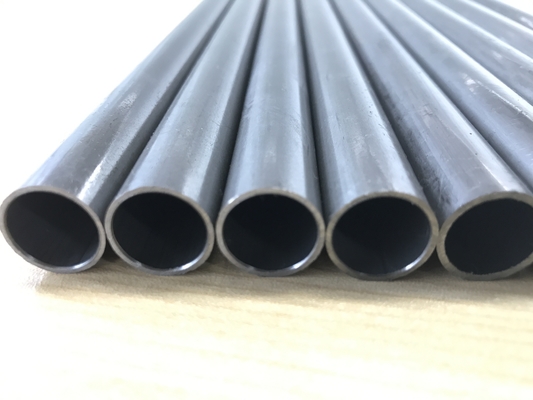

Product display of precision steel tube:
Precision Seamless Steel Pipe are wided for Application of:
Packing for precision steel pipe:
Gas Spring Tube Material packed in bundles, in wooven bags.
What our customers say about TORICH:
-
