ASTM A513 Precision Welded Cold Drawn Carbon Pipe Supplier Shock Absorber Motorcycle Tube
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
ASTM A513
Trading Properties
Minimum Order Quantity:
5 tons
Price:
USD1000-2500/ton
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000ton/year
Product Summary
ASTM A513 Precision Welded Cold Drawn Carbon Pipe Supplier Shock Absorber Motorcycle Tube TORICH is a professional manufacturer of ERW precision tubes, which is produced from ERW tubes into erw precision steel tubes by cold drawn or cold rolling process, which is better at concentricity and wall ...
Product Details
Highlight:
precision steel pipe
,precision seamless pipe
Product Name:
Shock Absorber Motorcycle Tube
Standard:
ASTM A513
Technique:
CDW
Material:
SPCC Q195 Q235
Certification:
ISO9001, TS16949
Alloy Or Not:
No
Secondary Or Not:
Non-secondary
Special Tube:
Precision CDW Steel Tube
Section Shape:
Round
Surface:
Oiled
Product Description
ASTM A513 Precision Welded Cold Drawn Carbon Pipe Supplier Shock Absorber Motorcycle Tube
TORICH is a professional manufacturer of ERW precision tubes, which is produced from ERW tubes into erw precision steel tubes by cold drawn or cold rolling process, which is better at concentricity and wall thickness eveness than seamless tubes.
But the disadvantage is, ERW precision tubes would require a higher MOQ than seamless tubes.
Chemical composition and Mechanical Properties for erw precision tubes:
| Steel grade |
Chemical composition |
Mechanical properties | ||||||
| C% | Si% | Mn% | P% | S% | Tensile strength (Mpa) | Yield strength (Mpa) | Elongation | |
| SPCC/SPHC | ≤0.12 | ≤0.025 | ≤0.50 | ≤0.035 | ≤0.025 | ≥270 | -- | ≥38 |
| ST12(DC01) | ≤0.10 | -- | ≤0.50 | ≤0.035 | ≤0.025 | ≥270 | 130-260 | ≥34 |
| ST37-2G/2 | ≤0.17 | -- | ≤1.00 | ≤0.035 | ≤0.030 | 360-510 | ≥215 | ≥20 |
| B340/590DP | ≤0.18 | ≤0.80 | ≤2.20 | ≤0.035 | ≤0.030 | ≥590 | 340-500 | ≥20 |
| B400/780DP | ≤0.20 | ≤0.80 | ≤2.50 | ≤0.035 | ≤0.030 | ≥780 | 400-590 | ≥16 |
| B340LA | ≤0.12 | -- | ≤1.00 | ≤0.030 | ≤0.030 | ≥440 | 240-460 | ≥26 |
| SS400 | ≤0.21 | ≤0.30 | ≤1.40 | ≤0.035 | ≤0.035 | 400-510 | ≥245 | ≥21 |
| Q195 | ≤0.12 | ≤0.30 | ≤0.50 | ≤0.035 | ≤0.040 | 315-430 | ≥195 | ≥33 |
| Q235B | 0.17-0.22 | ≤0.50 | ≤1.40 | ≤0.045 | ≤0.045 | 370-500 | ≥235 | ≥26 |
| Q345B | ≤0.20 | ≤0.30 | ≤1.70 | ≤0.035 | ≤0.035 | 470-630 | ≥345 | ≥20 |
| SAPH370 | ≤0.21 | ≤0.30 | ≤0.75 | ≤0.035 | ≤0.035 | ≥370 | ≥225 | ≥37 |
| SAPH400 | ≤0.21 | ≤0.30 | ≤1.20 | ≤0.030 | ≤0.025 | ≥400 | ≥255 | ≥36 |
| SAPH440 | ≤0.21 | ≤0.20 | ≤0.15 | ≤0.030 | ≤0.025 | ≥440 | ≥305 | ≥34 |
| Qste420TM | ≤0.12 | ≤0.50 | ≤1.50 | ≤0.030 | ≤0.025 | 480-620 | ≥420 | ≥21 |
| Qste460TM | ≤0.12 | ≤0.50 | ≤1.60 | ≤0.030 | ≤0.025 | 520-670 | ≥460 | ≥19 |
| BR1500HS/22MnB5 | 0.20-0.25 | 0.15-0.35 | 1.1-1.4 | ≤0.025 | ≤0.01 | 600-750 | ≥420 | ≥22 |
Our technical team can assist on the specification of your gas spring or damper product to ensure that the optimal
product is selected or developed for your application.

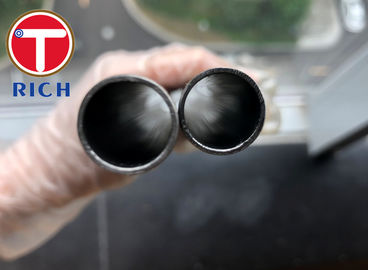

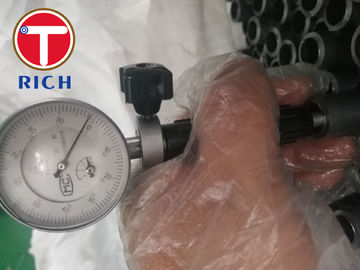

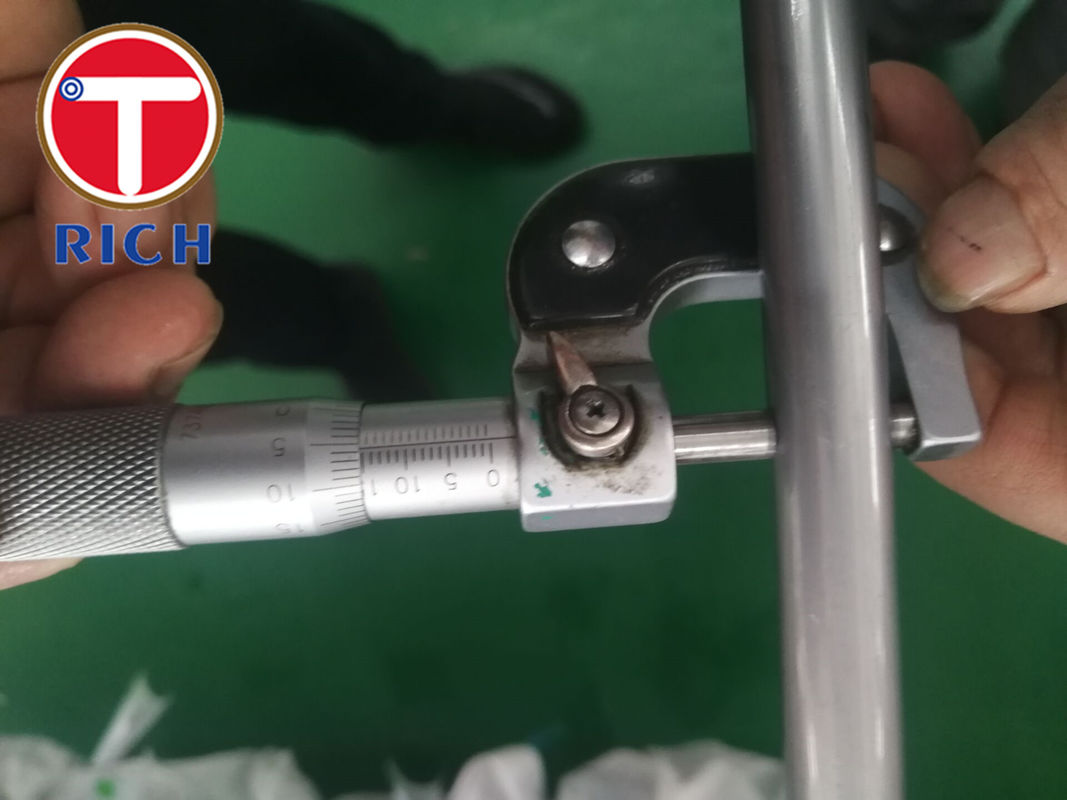

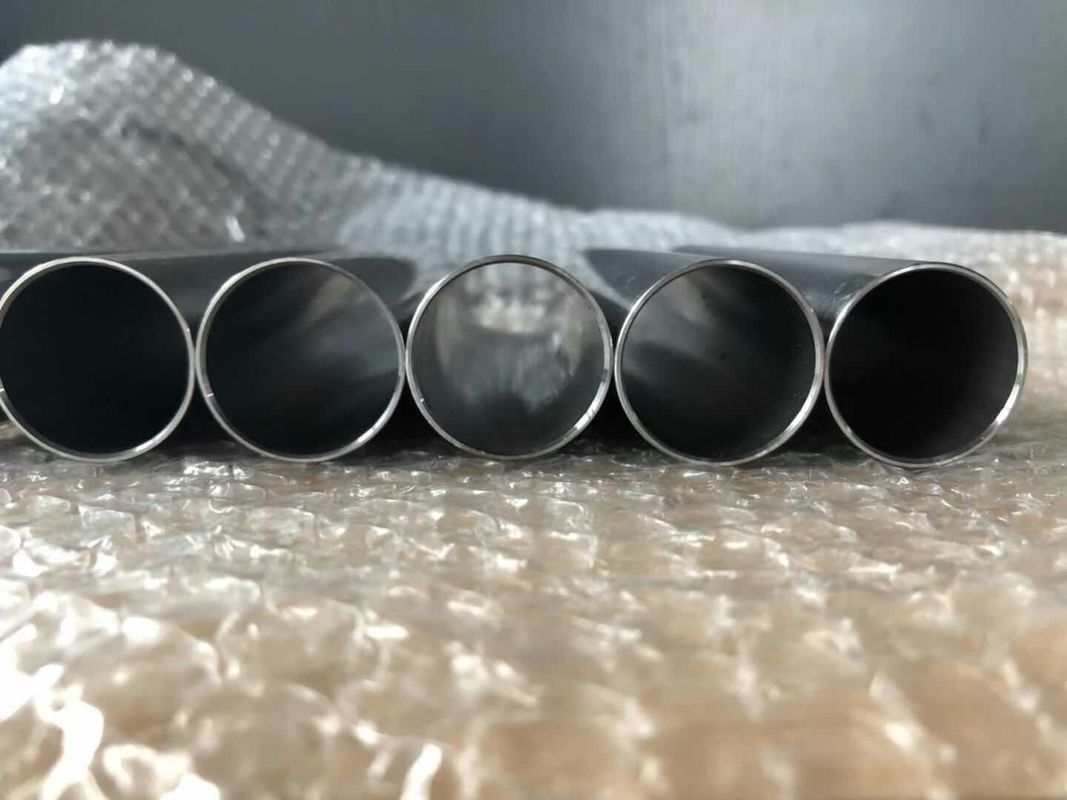

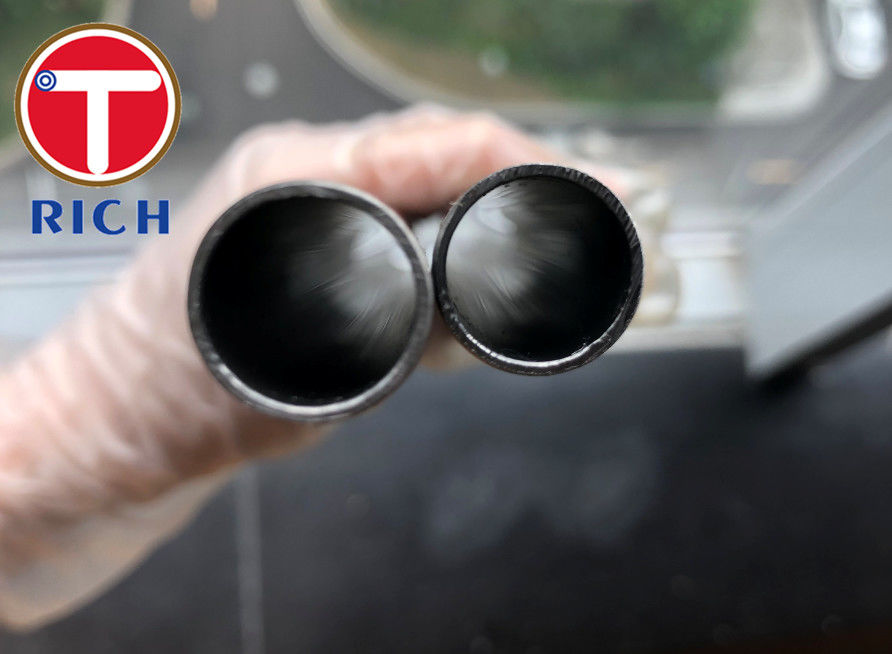

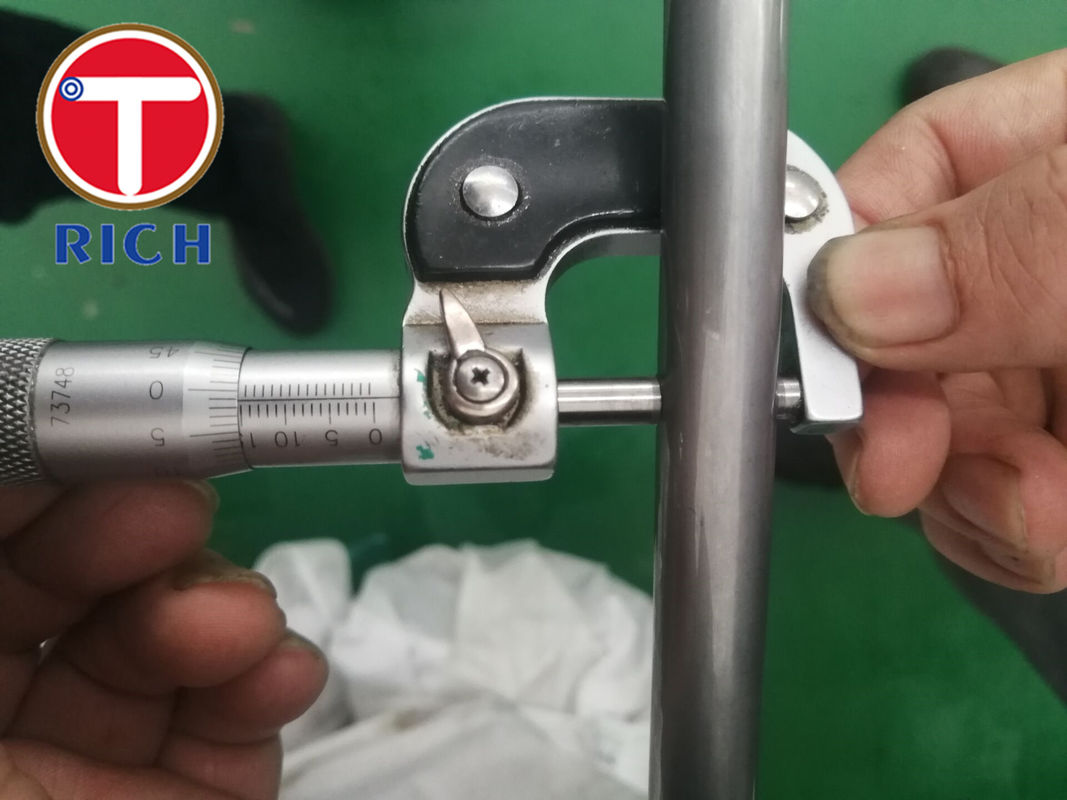

Shock Absorber Motorcycle Tube Photos show at the production site:
ERW precision steel tubes are for Application shock absorbers:
Packing for erw precision tubes:
Shock Absorber Motorcycle Tube packed in bundles, in wooven bags.
