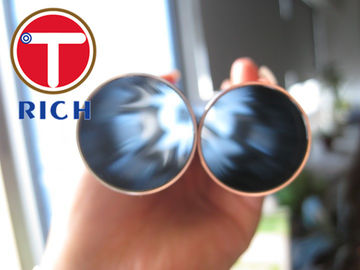

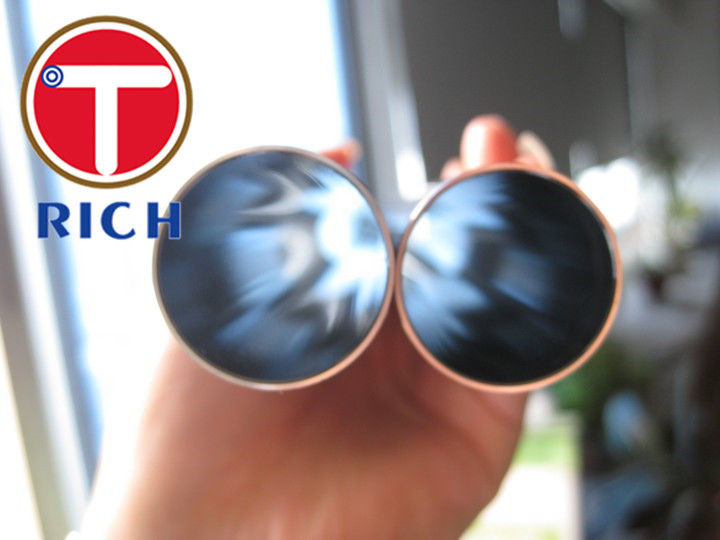

St52 E355 Cold Drawn 16mm Outer Diameter 5.5 Inner Diameter Precision Seamless Hollow Steel Tube
Basic Properties
Place of Origin:
Zhejiang China
Brand Name:
TORICH
Certification:
ISO 9001
Model Number:
Ck45
Trading Properties
Minimum Order Quantity:
1 Ton
Price:
USD 1500-2000 Per Ton
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
500 Tons Per Month
Product Summary
St52 E355 Cold Drawn 16mm Outer Diameter 5.5 Inner Diameter Precision Seamless Hollow Steel Tube Standard DIN2391, EN10305-1,ASTM A 179 ASTM A 192 ASTM A519 Material E355/SAE1026/Q355B/Q355D/CK45/ST52/ASTM A 106 GR.B(ST45) Outer diameter 10mm-325mm Wall thickness 1mm-40mm Length 3-12m, random or ...
Product Details
Highlight:
precision steel pipe
,precision seamless pipe
Thickness:
3 - 25 Mm Mm
Application:
Hydraulic Pipe
Outer Diameter(Round):
20 - 480 Mm Mm
Length:
<12m Or As Customer Demand
Product Description

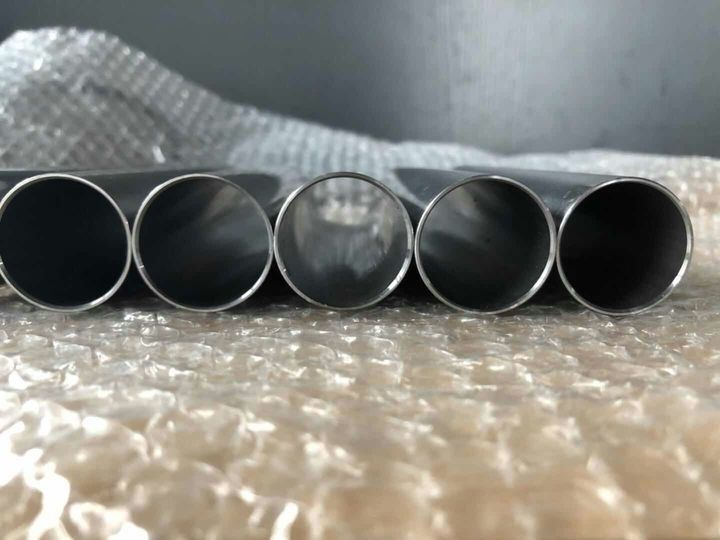

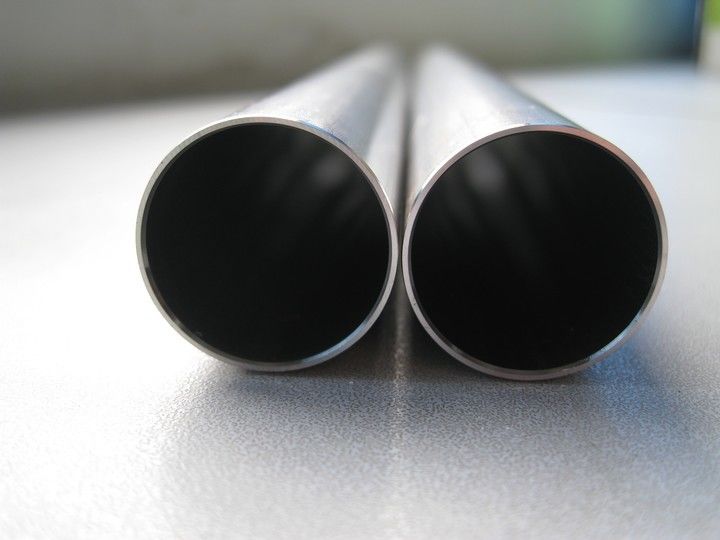

St52 E355 Cold Drawn 16mm Outer Diameter 5.5 Inner Diameter Precision Seamless Hollow Steel Tube
| Steel Grade | C | Si | Mn | P≤ | S≤ | Cu≤ | Ni≤ | Cr≤ | Mo≤ | V≤ |
| ASTM A106 B | ≤0.3 | / | ≤1.2 | 0.05 | 0.06 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
| ST35 | ≤0.18 | 0.15-0.35 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST45 | ≤0.25 | 0.15-0.35 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| ST52 | ≤0.2 | ≤0.55 | ≤1.5 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
| CK45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 | 0.25 | 0.25 | 0.25 | / | / |
|
Steel Grade
| Rm MPa | ReH Mpa |
| ST45 | ≥520 | ≥375 |
| ST52(E355) | ≥600 | ≥520 |
| SAE1026 | ≥600 | ≥510 |
| 16Mn | ≥600 | ≥520 |
| 20# | ≥520 | ≥375 |
