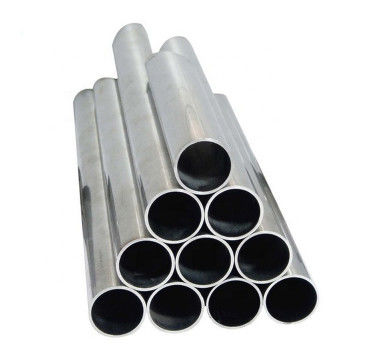

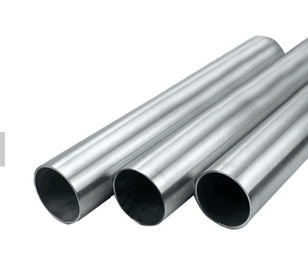

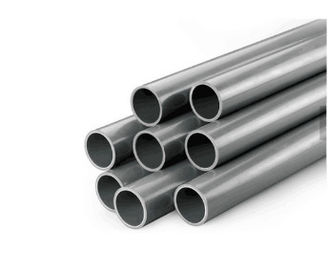

Welded Sanitary Stainless Steel Tube Food Grade With ASTM A270 Standard
Basic Properties
Place of Origin:
CHINA
Brand Name:
TORICH
Certification:
ISO9001, TS16949
Model Number:
ASTM A270
Trading Properties
Minimum Order Quantity:
3tons
Price:
Negotiable
Payment Terms:
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:
60000 tons/year
Product Summary
ASTM A270 304 316 316L Round/Square/Elliptical Welded Stainless Steel Sanitary Tube Application: Mainly used in beer, beverages, diary, bio-pharmaceuticals, daily, cosmetics, concentrated drying equipment industries. Size Range: OD:12-254mm WT: 1-12mm Length: 6000mm or per customer’s request ...
Product Details
Highlight:
stainless steel round tube
,stainless tube steel
Product Name:
Welded Stainless Steel Sanitary Tube
Standard:
ASTM A270
Technique:
Welded
Section Shape:
Round
Certification:
ISO9001, TS16949
Alloy Or Not:
Stainless
Secondary Or Not:
Non-secondary
Special Tube:
Food Grade Stainless Steel Pipe
Surface:
Satin / Hairline
Hea Treatment:
Yes
Product Description
ASTM A270 304 316 316L Round/Square/Elliptical Welded Stainless Steel Sanitary Tube
Application: Mainly used in beer, beverages, diary, bio-pharmaceuticals, daily, cosmetics, concentrated drying equipment industries.
Size Range:
OD:12-254mm
WT: 1-12mm
Length: 6000mm or per customer’s request
Material:
Grade: stainless steel 304, 316
| Chemical Properties | ||||||||
| C | Si | Mn | P | S | Cr | N | Mo | |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.0~20.0 | 8.0-10.5 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.0~18.0 | 10.0-14.0 | 2.0-3.0 |
Manufacture:
Pipes shall be made by the seamless process.
Mechanical Properties:
| Mechanical Properties: | ||||
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Hv | Extension % | |
| 304 | ≥ 520 | ≥ 205 | ＜200 | ≥35 |
| 316 | ≥ 520 | ≥ 205 | ＜200 | ≥35 |
Surface:
180G, 320G, 400G Satin / Hairline
Packing:
With strong wood structure box packing by containers loading and shipping.
Or as customer's requirement.
Test:
- PMI test
- Hydraulic test
- 100%Inner cleaned by sponge
- 100%Dimension test
- 100%Surface test
